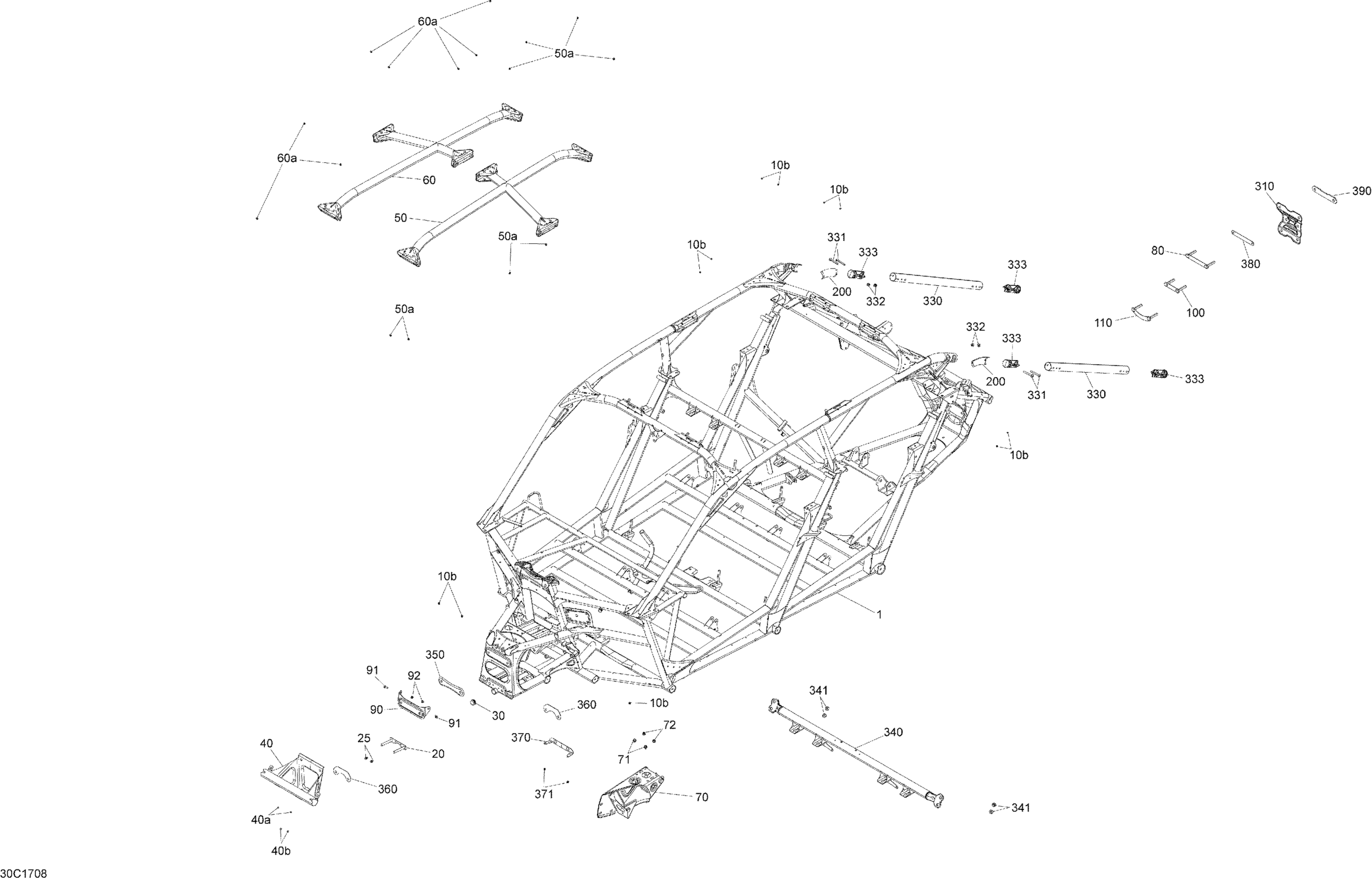

Can-Am 4-Maverick X3 MAX, 2017 09- Frame Diagram

#

Description
Price

1>1a

Red Frame Kit | XRSDPS Package, Liquid Gold

715004376

Unavailable

1>1a

Black Frame Kit | Except XRSDPS Package, Liquid Gold

715004377

Unavailable

1a

Red Max Cage Kit | XRSDPS Package, Liquid Gold Upper section Only

715004370

Unavailable

1a

Black Cage Kit | Except XRSDPS Package, Liquid Gold. Upper Section Only

715004371

Unavailable

10b

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

20

Front Plate

705207424

$22.99

25

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

30

Plug 1-1/4"

706200308

$8.59

40>40b

Deep Black, Front Bumper | Except Model Gold

705210400

$103.99

40>40b

PAINTED FRONT BUMPER - Call your local BRP dealership | Model Gold

705205747

$109.99

40a

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

40b

Pop Rivet 3/16"

390402200

$0.35

50>50a

LH Added Cage | Except XRSDPS Package, Liquid Gold

705206251

$91.99

50>50a

Can-Am Red, LH Cage Reinforcement | XRSDPS Package, Liquid Gold

705210215

$91.99

50a

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

60>60a

Deep Black, RH Reinforcement Cage | Includes 60 to 60a1j

705210079

$91.99

60>60a

Can-Am Red, RH Cage Reinforcement | XRSDPS Package, Liquid Gold

705210216

$91.99

60a

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

70

DPS Support

705206924

$71.99

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

72

Hex. Elastic Flange Nut M8

233281416

$1.48

80

Rear Upper Plate

705206852

$22.99

90

Stifner Plate

705206877

$30.99

91

Hex. Flange Screw M6 X 16

207661654

$2.11

92

Hex. Flange Elastic Nut M6

233261494

$1.58

100

Rear Central Plate

705211558

$20.99

110

Rear Plate

705206854

$22.99

200

Black, LH Link Plate | Except Model Gold

705205926

$25.99

200

PLATE_CONNECTING B-101 PAINTED - Call your local BRP dealership | Model Gold

705205929

Unavailable

310

Rear Plate

705205750

$25.99

330

Deep Black, Rear Pillar

705210066

$24.99

331

Torx Truss M8 X 65

250000901

$1.90

332

Elastic Flange Nut M8

250100025

$1.48

333

Sleeve

705210648

$9.90

340

Belt Bar

705205268

$129.99

341

Elastic Stop Nut M12

232521416

$1.69

350

Upper Link Arm

705205294

$12.99

360

Retaining Plate

705210249

$5.29

370

Support

706203122

$14.49

371

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

380

Front Upper Plate

705206069

$15.99

390

Rear Upper Plate | Model XRSDPS

705206511

$15.99
