Description

Price

1

MUFFLER ASSEMBLY (JG591153) AD

A60105082033

Unavailable

2

Hexagonal bolt M8x35

J900000803502

Unavailable

3

COLLAR

J800000901001

Unavailable

4

damper, bottom

90205068000

$2.05

5

BOLT FLANGED M6X1

J900000601407

Unavailable

7

SHIELD MUFFLER

96305090000

Unavailable

8

GROMMET MUFFLER SHIELD

93805011003

$1.49

9

Oxygen sensor

96341190000

Unavailable

10

Oxygen sensor

96341090000

Unavailable

11

Exhaust flange gasket

96305004000

Unavailable

12

PIPE ASSEMBLY A

A60105007000

Unavailable

13

FLANGED NUT M8 H7,5 WS12

90136038000

$1.49

14

GASKET EXHAUST

94305050172

$6.82

15

muffler clamp

96305051000

Unavailable

16

DAMPER MUFFLER

93805096000

$1.49

17

BOLT SILENCER MTG

90105000002

$1.49

18

muffler mounting spacer bushin

90205086001

$2.05

20

CLAMP

J340000600700

Unavailable

21

clip nut M8

96305097000

Unavailable

22

SHIELD ASSEMBLY MUFFLER

A60105030000

Unavailable

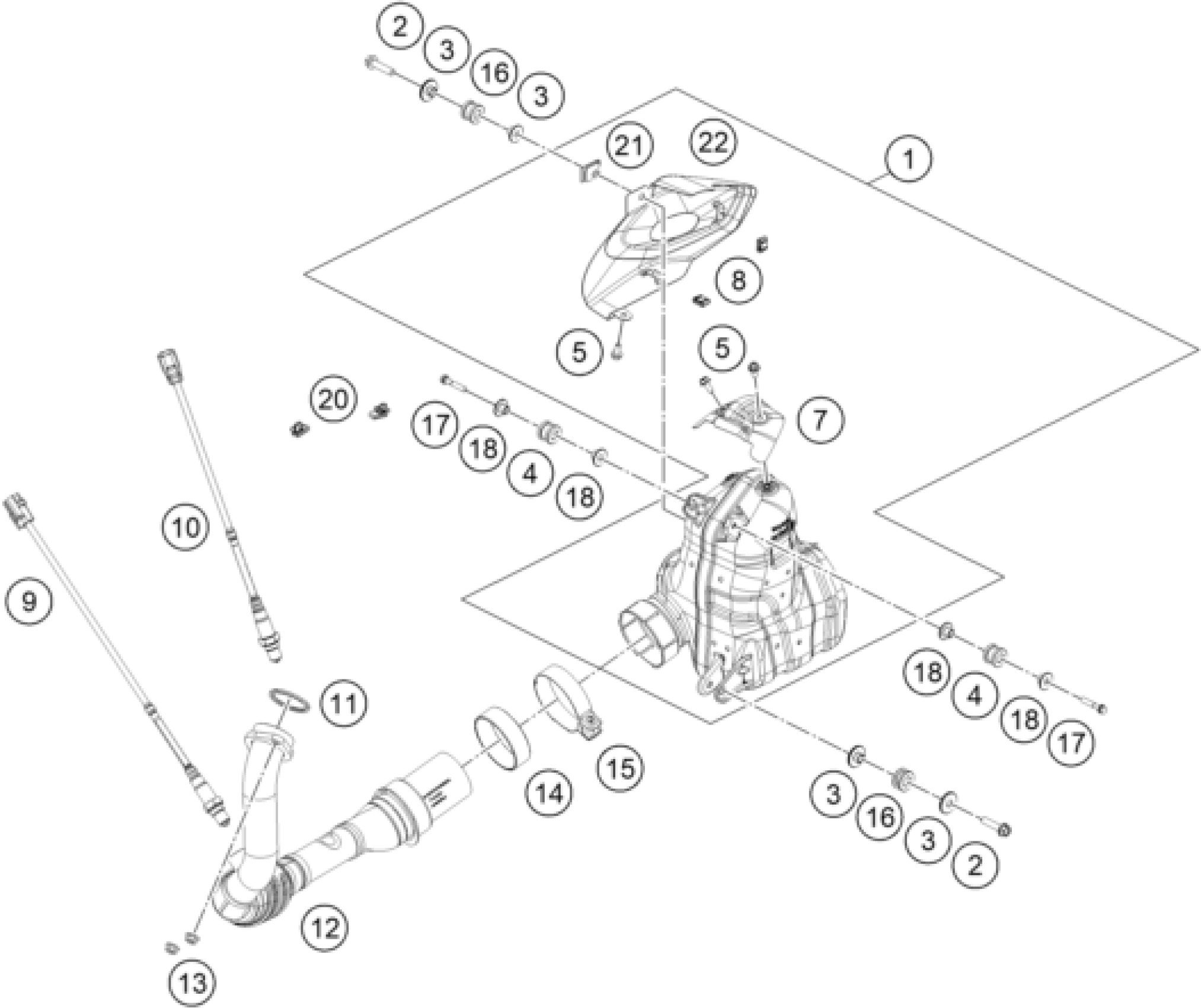

KTM 390 SMC R - B.D. 2025 EXHAUST SYSTEM Diagram

MUFFLER ASSEMBLY (JG591153) AD

Hexagonal bolt M8x35

COLLAR

damper, bottom

BOLT FLANGED M6X1

SHIELD MUFFLER

GROMMET MUFFLER SHIELD

Oxygen sensor

Oxygen sensor

Exhaust flange gasket

PIPE ASSEMBLY A

FLANGED NUT M8 H7,5 WS12

GASKET EXHAUST

muffler clamp

DAMPER MUFFLER

BOLT SILENCER MTG

muffler mounting spacer bushin

CLAMP

clip nut M8

SHIELD ASSEMBLY MUFFLER
