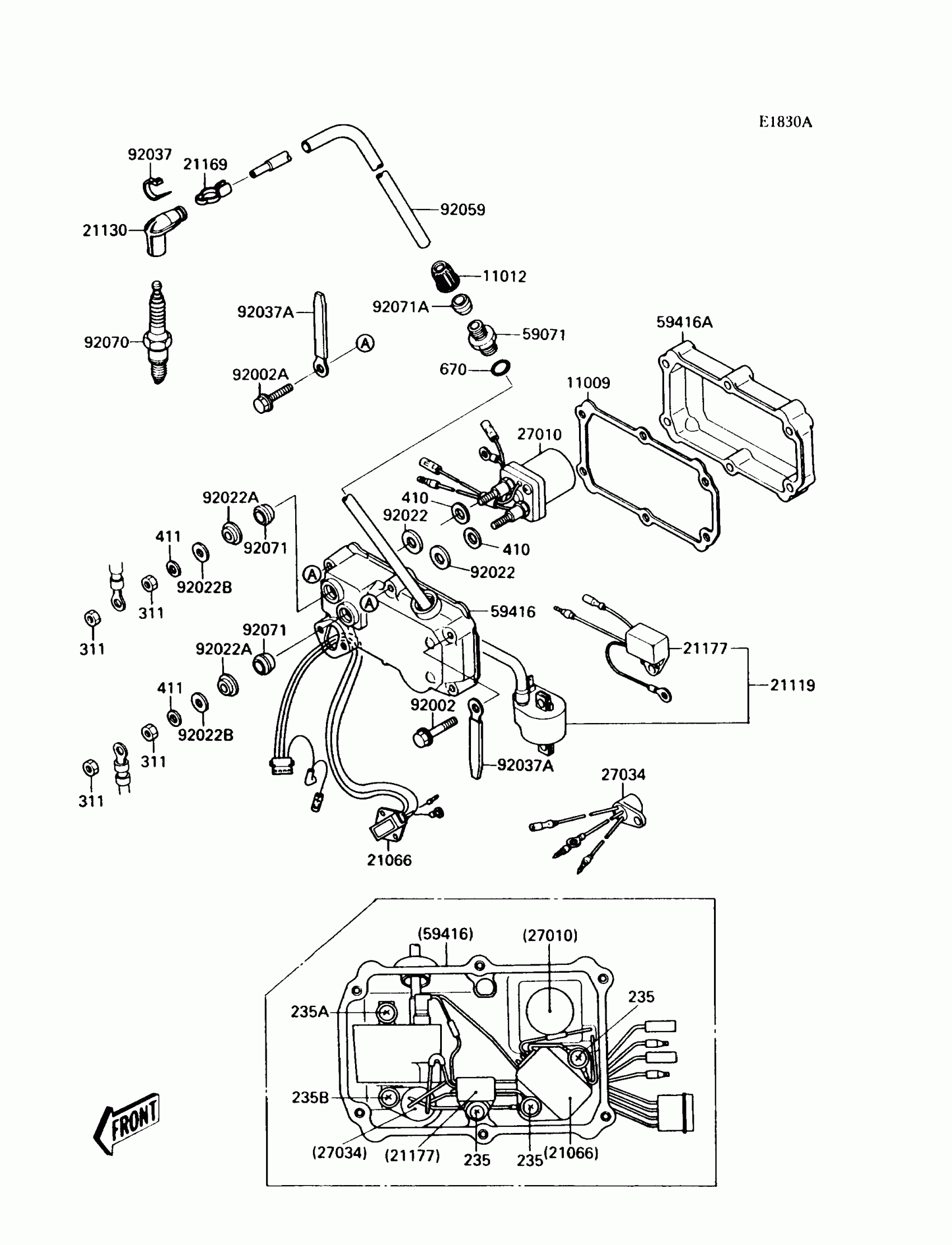

Kawasaki 300 SX Ignition System(JS300-A2) Diagram
#
Description
Price
11009
GASKET,ELECTRIC CASE
11009-3711
Unavailable
11012
CAP
11012-3005
$5.54
21066
REGULATOR-VOLTAGE
21066-3701
$240.46
21119
IGNITER
21119-3707
Unavailable
21130
CAP-SPARK PLUG
21130-1006
$28.47
21169
TERMINAL,PLUG CAP
21169-001
$15.36
21177
CONTROLLER
21177-3701
$139.38
27010
SWITCH,STARTER RELAY
27010-3703
$160.83
27034
RELAY,STOP SWITCH
27034-3002
Unavailable
59071
JOINT
59071-3001
$6.29
59416
CASE-ELECTRIC,FR
59416-3702
$129.30
59416A
CASE-ELECTRIC,RR
59416-3703
$85.01
92002
BOLT,6X35
92002-3715
$6.61
92002A
BOLT,6X65
92002-3720
Unavailable
92022
WASHER
92022-3035
$3.52
92022A
WASHER
92022-3708
$2.32
92022B
WASHER,6.5X19X2
92022-3709
$3.04
92037
CLAMP
92037-1173
$3.49
92037A
CLAMP,L=100
92037-3736
$5.52
92059
TUBE
92059-3820
$12.07
92070
PLUG-SPARK,B7ES(NGK)
92070-3003
Unavailable
92071
GROMMET
92071-3004
$3.99
92071A
GROMMET
92071-527
$6.68
235
SCREW-PAN-WP-CROS
235B0616
$4.62
235A
SCREW-PAN-WP-CROS
235B0620
Unavailable
235B
SCREW-PAN-WP-CROS
235B0625
$1.57
311
NUT-HEX,6MM
311R0600
$0.70
410
WASHER PLAIN 10MM
410B1000
$0.58
411
WASHER-PLAIN,6MM
411S0600
$2.06
670
O RING,16MM
670B2016
$1.36
