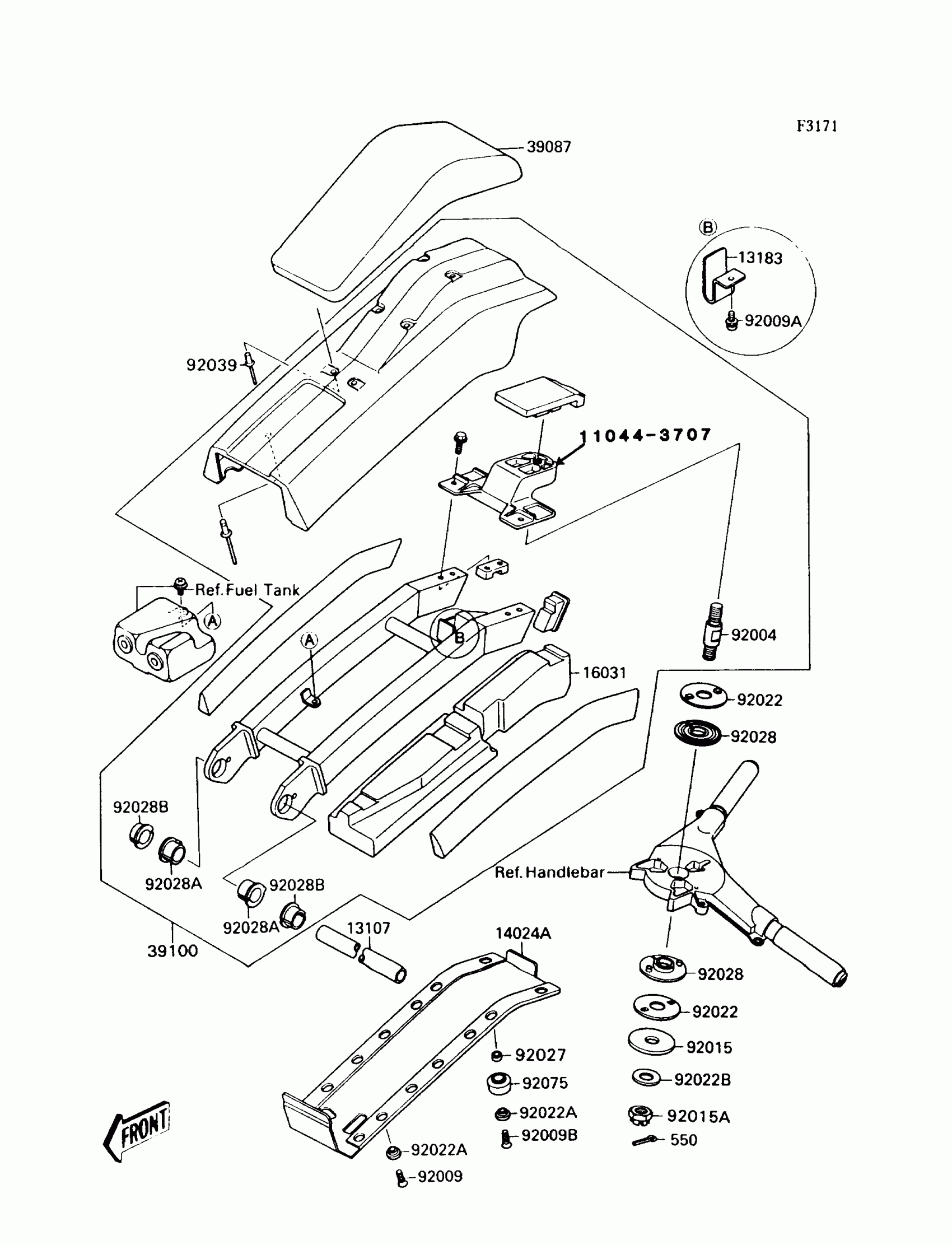

Kawasaki 300 SX Handle Pole(JS300-A1) Diagram

Description

Price

13107

SHAFT

13107-3703

Unavailable

13183

PLATE

13183-3708

Unavailable

14024A

COVER,HANDLE POLE,LWR

14024-3704

Unavailable

16031

FLOAT

16031-3705

$10.97

39087

PAD-HANDLE

39087-3704

$86.26

39100

POLE-COMP-HANDLE,JET WHITE

39100-3702-8C

$460.06

92004

STUD,16MM

92004-3702

$46.90

92009

SCREW,6X16.9

92009-3709

Unavailable

92009A

SCREW,5X10

92009-3718

$3.98

92009B

SCREW,6X21

92009-3725

$4.58

92015

NUT

92015-3714

$17.71

92015A

NUT,16MM

92015-3742

$26.97

92022

WASHER

92022-3716

Unavailable

92022A

WASHER

92022-3732

Unavailable

92022B

WASHER,17X40X2

92022-3736

$5.04

92027

COLLAR,7.1X10.5X6

92027-3702

$7.65

92028

BUSHING

92028-3708

$8.71

92028A

BUSHING

92028-3710

Unavailable

92028B

BUSHING

92028-3711

Unavailable

92039

RIVET

92039-3712

$4.83

92075

DAMPER

92075-3722

$7.65

550

PIN-COTTER,4X35

550S4035

$2.90
