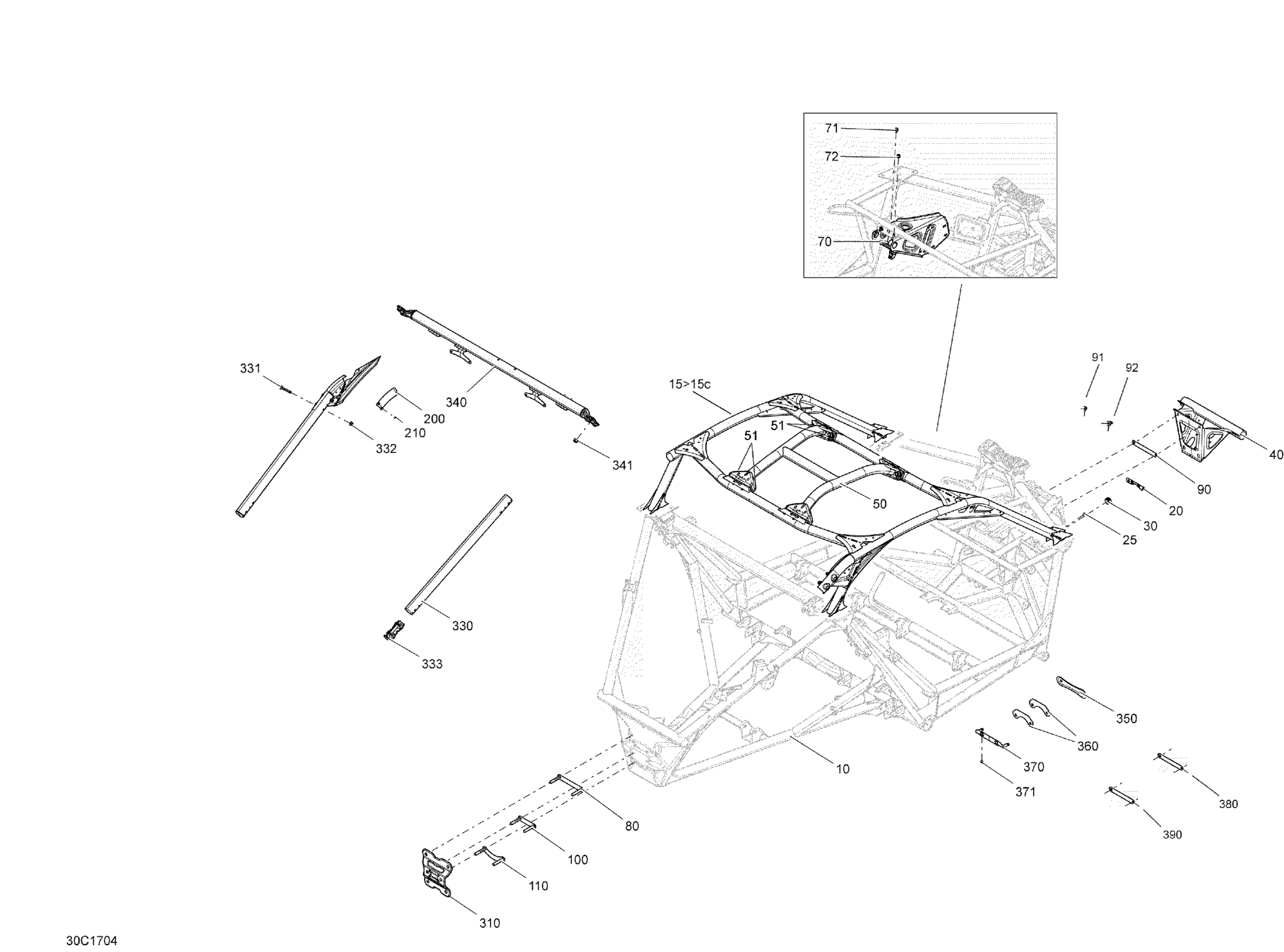

Can-Am 3-Maverick X3, 2017 09- Frame Diagram

#

Description
Price

10>15c

Black Frame Kit | Except Model Gold Built in 2016

715004061

Unavailable

10>15c

Black Frame Kit | Except Model Gold Built in 2017

715004465

Unavailable

10>15c

Red Frame Kit | Model Gold Built in 2016

715004190

Unavailable

10>15c

Red Frame Kit | Model Gold Built in 2017

715006026

Unavailable

15>15c

Black Cage Kit | Except Model Gold Built in 2016

715004060

Unavailable

15>15c

Front Black Cage Kit | Except Model Gold Built in 2017

715004463

Unavailable

15>15c

Red Cage Kit | Model Gold Built in 2016

715004189

Unavailable

15>15c

Front Red Cage Kit | Model Gold Built in 2017

715004464

Unavailable

15a

Torx Screw K50 X 16

250000720

$1.69

15b

Hex. Flange Screw S.Grip M12 X 30

207523036

$7.19

15c

Hex. Flange Elastic Nut M12

233221414

$7.69

20

Front Plate

705207424

$22.99

25

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

30

Plug 1-1/4"

706200308

$8.59

40

Deep Black, Front Bumper | Except Model Gold

705210400

$103.99

40

PAINTED FRONT BUMPER - Call your local BRP dealership | Model Gold

705205747

$109.99

50

PAINTED ADDED CAGE - Call your local BRP dealership | Except Model Gold Built in 2016

705205748

Unavailable

50

Added Cage | Except Model Gold Built in 2017

705206774

$91.99

50

Painted Added Cage | Model Gold Built in 2016

705206771

$91.99

51

Elastic Flange Nut M12

233221466

$2.89

70

PLAQUE - Call your local BRP dealership

705205476

Unavailable

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

72

Hex. Elastic Flange Nut M8

233281416

$1.48

80

Rear Upper Plate

705206852

$22.99

90

Stifner Plate

705206877

$30.99

91

Hex. Flange Screw M6 X 16

207661654

$2.11

92

Hex. Flange Elastic Nut M6

233261494

$1.58

100

Rear Central Plate

705211558

$20.99

110

Rear Plate

705206854

$22.99

200

Black, LH Link Plate | Except Model Gold

705205926

$25.99

200

PLATE_CONNECTING B-101 PAINTED - Call your local BRP dealership | Model Gold

705205929

Unavailable

210

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

310

Rear Plate

705205750

$25.99

330

Deep Black, Rear Pillar

705210066

$24.99

330

Red- Rear Mount | Model Gold

705205752

$24.99

331

Torx Truss M8 X 65

250000901

$1.90

332

Elastic Flange Nut M8

250100025

$1.48

333

Sleeve

705210648

$9.90

340

Belt Bar

705205268

$129.99

341

Elastic Stop Nut M12

232521416

$1.69

350

Upper Link Arm

705205294

$12.99

360

Retaining Plate

705210249

$5.29

370

Support

706203122

$14.49

371

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

380

Front Upper Plate

705206069

$15.99

390

Rear Upper Plate | Model XRSDPS

705206511

$15.99
