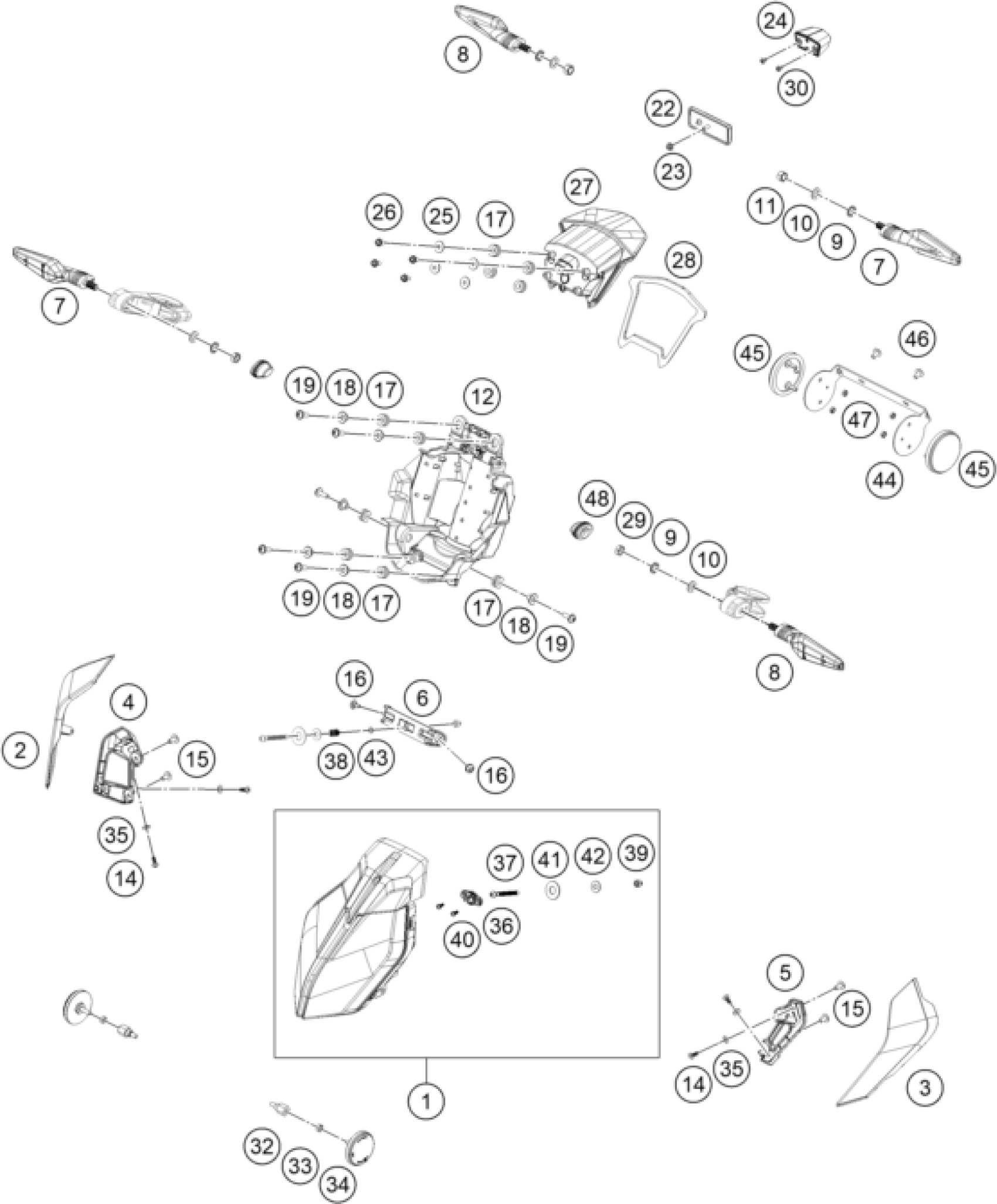

KTM 250 DUKE, orange - B.D. 2024 LIGHTING SYSTEM Diagram

Headlight

96214001000

Unavailable

MASK RH JP181763 ELE ORG GLOSS

96208004000EB

Unavailable

MASK LH JP181762 ELE ORG GLOSS

96208003000EB

Unavailable

position light holder right

96314004010

Unavailable

position light holder Left

96314004020

Unavailable

headlight adjuster plate

96314002000

Unavailable

indicator rear LH

94814526000

$88.16

indicator rear RH

94814525000

$88.16

Toothed washer, M10

J06797100183

$1.49

Washer M10

J125100009

$1.49

Nut hex M10x1.25

J910001000800

Unavailable

Headlight carrier front

96314010000

Unavailable

screw tapping pan cross dia 4.

J900000501602

Unavailable

Roundhead screw, M6x12

J900000601204

Unavailable

Screw button head step M5x6.5

J900000500900

$1.49

Rubber bushing

93014017000

$1.49

Collar head lamp holder MTG

93014018100

$1.49

AH oval head screw M6x19

J900000601900

$1.49

REFLECTOR REFLEX

96314045000

Unavailable

nut hex flanged M5x0.8

J910000501100

Unavailable

License plate lighting

28114047000

Unavailable

Washer, license plate holder s

93308015010

$1.49

HH-COLLAR SCREW M5X12

J025050126

$1.49

Rear Light

96314040000

Unavailable

rubber support taillight

96314043000

Unavailable

Nut hex thin-M10x1.25

J934100006

$1.49

SHEET MET.SCR. DIN 7981 4,2X13

J981420133

$1.49

Reflector holder

94512082010

$2.61

NUT HEX THICK

J910000600505

$1.49

Side reflector

94512082000

$7.10

WASHER M5

J125050005

$1.49

bush

93014024100

$1.49

Aiming bolt (m6)

J900000605400

Unavailable

Spring 1 x 8.5 x 30

93014001010

Unavailable

Dome nut (m6x1)

J910000601200

Unavailable

Screw M4X14

93014024110

$1.49

Washer plain

J690001210000

Unavailable

Washer plain

J690000710001

Unavailable

washer plain-ID 6.2XOD 9.5XTHK

J125062006

Unavailable

BRACKET SIDE REFLECTOR REAR

90212581000

$6.91

SIDE REFLECTOR REAR

90212582000

$5.23

AH SCREW M6X1X20

90508006003

$4.11

Hex collar nut, M5

J06923050053

$1.49

GROMMET INDICATOR

96314025010

Unavailable
