2023 Polaris ATV SPORTSMAN 570 (A23SEA57A1/A3/A6/A9) Diagrams

BODY, CLOSE OFF PANEL & ACCESS PANEL

BODY, CLOSE OFF PANEL & ACCESS PANEL


View details
BODY, CLUTCH COVER

BODY, CLUTCH COVER


View details
BODY, DECALS

BODY, DECALS


View details
BODY, FOOTWELLS

BODY, FOOTWELLS


View details
BODY, FRONT BUMPER, TRAIL

BODY, FRONT BUMPER, TRAIL


View details
BODY, FRONT CAB

BODY, FRONT CAB


View details
BODY, FRONT COVER

BODY, FRONT COVER


View details
BODY, FRONT RACK EXTENDERS

BODY, FRONT RACK EXTENDERS


View details
BODY, FRONT STORAGE COVER

BODY, FRONT STORAGE COVER


View details
BODY, HEADLIGHT POD

BODY, HEADLIGHT POD


View details
BODY, HEADLIGHT POD, PLUGS

BODY, HEADLIGHT POD, PLUGS


View details
BODY, REAR BUMPER

BODY, REAR BUMPER


View details
BODY, REAR CAB

BODY, REAR CAB


View details
BODY, REAR RACK

BODY, REAR RACK


View details
BODY, SEAT

BODY, SEAT


View details
BODY, SIDE PANELS

BODY, SIDE PANELS


View details

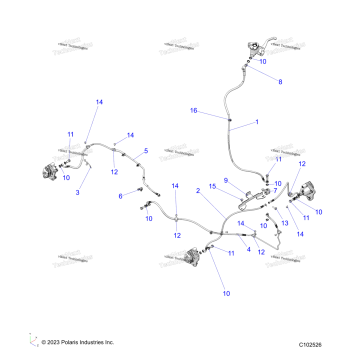

BRAKES, BRAKE LINES

BRAKES, BRAKE LINES


View details

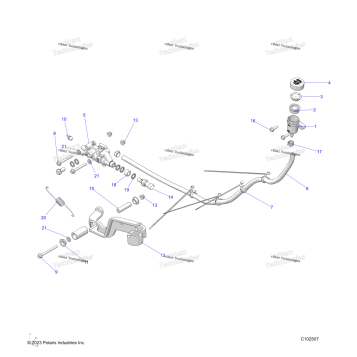

BRAKES, BRAKE PEDAL & MASTER CYLINDER

BRAKES, BRAKE PEDAL & MASTER CYLINDER


View details
BRAKES, FRONT BRAKE LEVER & MASTER CYLINDER

BRAKES, FRONT BRAKE LEVER & MASTER CYLINDER


View details
BRAKES, FRONT CALIPER

BRAKES, FRONT CALIPER


View details
BRAKES, REAR CALIPER

BRAKES, REAR CALIPER


View details
CHASSIS, FRAME

CHASSIS, FRAME


View details
DRIVE TRAIN, FRONT DRIVE SHAFT

DRIVE TRAIN, FRONT DRIVE SHAFT


View details
DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, FRONT GEARCASE


View details
DRIVE TRAIN, FRONT GEARCASE MOUNTING

DRIVE TRAIN, FRONT GEARCASE MOUNTING


View details
DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, FRONT PROP SHAFT


View details
DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR


View details
DRIVE TRAIN, MAIN GEARCASE

DRIVE TRAIN, MAIN GEARCASE


View details
DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, MAIN GEARCASE MOUNTING


View details
DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH


View details
DRIVE TRAIN, REAR DRIVE SHAFT

DRIVE TRAIN, REAR DRIVE SHAFT


View details
DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH


View details
ELECTRICAL, BATTERY

ELECTRICAL, BATTERY


View details
ELECTRICAL, BRAKE, HARNESS JUMPER

ELECTRICAL, BRAKE, HARNESS JUMPER


View details
ELECTRICAL, GAUGES & INDICATORS

ELECTRICAL, GAUGES & INDICATORS


View details
ELECTRICAL, HEADLIGHTS

ELECTRICAL, HEADLIGHTS


View details
ELECTRICAL, IGNITION COIL, WIRE AND SPARK PLUG

ELECTRICAL, IGNITION COIL, WIRE AND SPARK PLUG


View details
ELECTRICAL, MAIN WIRE HARNESS

ELECTRICAL, MAIN WIRE HARNESS


View details
ELECTRICAL, SWITCHES, SENSORS & ECM

ELECTRICAL, SWITCHES, SENSORS & ECM


View details
ELECTRICAL, TAILLAMPS

ELECTRICAL, TAILLAMPS


View details
ELECTRICAL, VOLTAGE REGULATOR AND MOUNTING

ELECTRICAL, VOLTAGE REGULATOR AND MOUNTING


View details
ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM


View details
ENGINE, CAM CHAIN & SPROCKET

ENGINE, CAM CHAIN & SPROCKET


View details
ENGINE, COOLING SYSTEM, HOSES

ENGINE, COOLING SYSTEM, HOSES


View details
ENGINE, COOLING SYSTEM, RADIATOR, FAN & OVERFLOW BOTTLE

ENGINE, COOLING SYSTEM, RADIATOR, FAN & OVERFLOW BOTTLE


View details
ENGINE, CRANKCASE

ENGINE, CRANKCASE


View details
ENGINE, CRANKSHAFT, PISTON & BALANCE SHAFT

ENGINE, CRANKSHAFT, PISTON & BALANCE SHAFT


View details
ENGINE, CYLINDER

ENGINE, CYLINDER


View details
ENGINE, CYLINDER HEAD, CAMS & VALVES

ENGINE, CYLINDER HEAD, CAMS & VALVES


View details
ENGINE, EXHAUST

ENGINE, EXHAUST


View details
ENGINE, MOUNTING & LONG BLOCK

ENGINE, MOUNTING & LONG BLOCK


View details
ENGINE, OIL FILTER & DIPSTICK

ENGINE, OIL FILTER & DIPSTICK


View details
ENGINE, OIL PUMP

ENGINE, OIL PUMP


View details
ENGINE, STARTER DRIVE

ENGINE, STARTER DRIVE


View details
ENGINE, STATOR COVER & FLYWHEEL

ENGINE, STATOR COVER & FLYWHEEL


View details
ENGINE, THERMOSTAT & COVER

ENGINE, THERMOSTAT & COVER


View details
ENGINE, THROTTLE BODY & FUEL RAIL

ENGINE, THROTTLE BODY & FUEL RAIL


View details
ENGINE, VALVE COVER

ENGINE, VALVE COVER


View details
ENGINE, WATERPUMP IMPELLER & COVER

ENGINE, WATERPUMP IMPELLER & COVER


View details
FUEL SYSTEM, FUEL TANK ASM

FUEL SYSTEM, FUEL TANK ASM


View details
REFERENCE, OWNERS MANUAL

REFERENCE, OWNERS MANUAL


View details
REFERENCE, TOOL KIT

REFERENCE, TOOL KIT


View details
STEERING POST

STEERING POST


View details
STEERING, CONTROLS, LEFT HAND CONTROLS

STEERING, CONTROLS, LEFT HAND CONTROLS


View details
STEERING, CONTROLS, THROTTLE ASM. & CABLE

STEERING, CONTROLS, THROTTLE ASM. & CABLE


View details
STEERING, HANDLEBAR

STEERING, HANDLEBAR


View details
STEERING, TIE RODS

STEERING, TIE RODS


View details
SUSPENSION, AARM & STRUT MOUNTING

SUSPENSION, AARM & STRUT MOUNTING


View details
SUSPENSION, FRONT HUB & BRAKE DISC

SUSPENSION, FRONT HUB & BRAKE DISC


View details
SUSPENSION, FRONT STRUT

SUSPENSION, FRONT STRUT


View details
SUSPENSION, REAR CONTROL ARM, MOUNTING

SUSPENSION, REAR CONTROL ARM, MOUNTING


View details
SUSPENSION, REAR CONTROL ARMS

SUSPENSION, REAR CONTROL ARMS


View details
SUSPENSION, REAR HUBS, CARRIER & BRAKE DISC

SUSPENSION, REAR HUBS, CARRIER & BRAKE DISC


View details
SUSPENSION, REAR SHOCK & MOUNTING

SUSPENSION, REAR SHOCK & MOUNTING


View details
SUSPENSION, TORSION BAR

SUSPENSION, TORSION BAR


View details
WHEELS, FRONT TIRE

WHEELS, FRONT TIRE


View details
WHEELS, REAR TIRE

WHEELS, REAR TIRE


View details
