SUSPENSION, TORQUE ARM, REAR - J11-J15 ALL OPTIONS (600462)

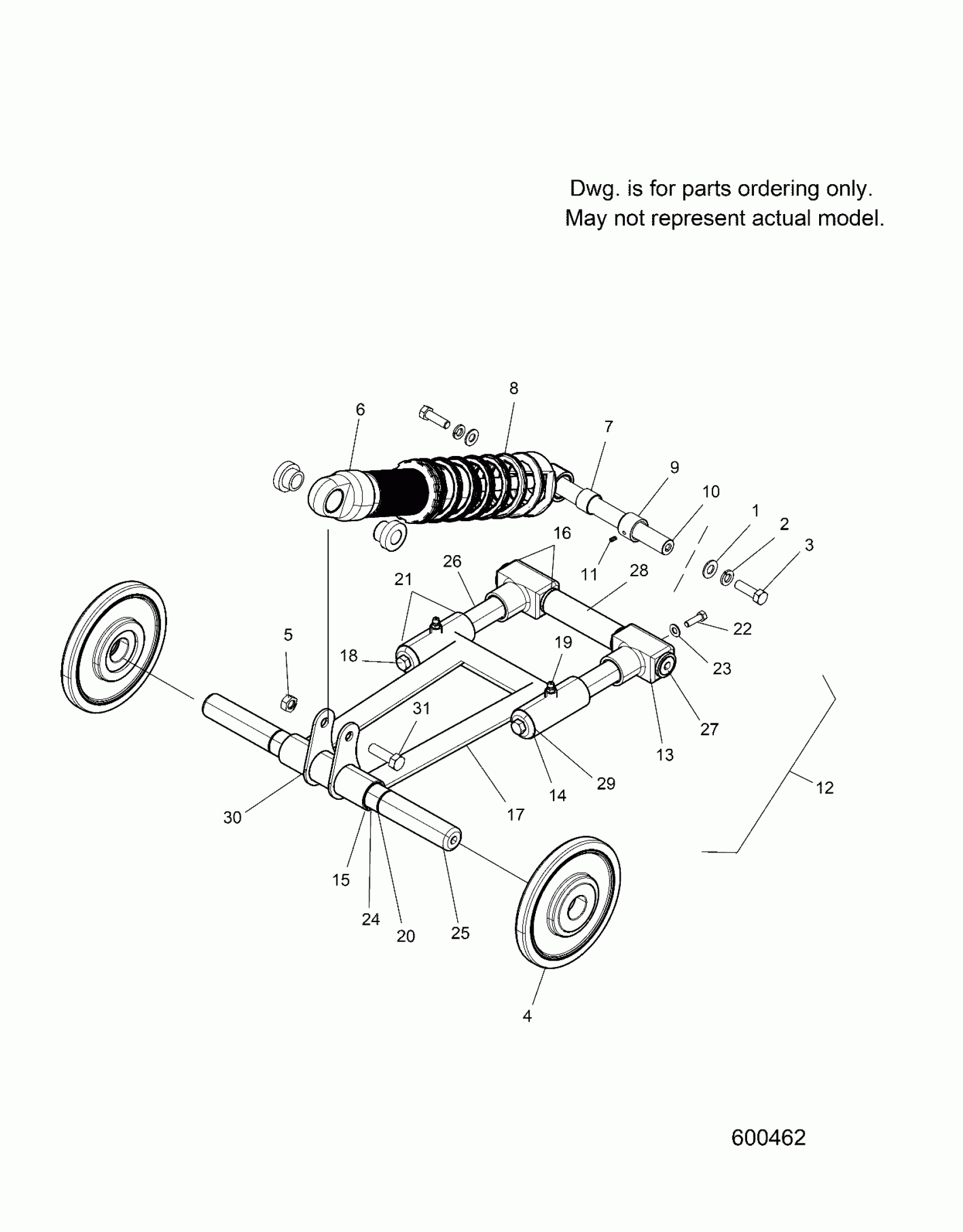

Polaris 2011 SUSPENSION, TORQUE ARM, REAR - J11-J15 ALL OPTIONS (600462) Diagram
#
1
WASHER, 3/8 FLAT [2011-2015]
7557035
Unavailable
2
WASHER, 3/8 SPLIT [2011-2015]
7557042
Unavailable
3
BOLT, 3/8 [2011-2015]
7512405
$3.99
4
WHEEL, 5.625 [2011-2015]
2206849
Unavailable
5
NUT. NYLOCK, 3/8� [2011-2015]
7547869
Unavailable
6
SHOCK, REAR [2011-2015 ST/LT]
2206820
Unavailable
6
SHOCK, REAR [2011-2015 SX]
2206855
Unavailable
7
BUSHING, SHOCK [2011-2015]
5453940
Unavailable
8
SPRING, 200 LB. RATE. (FACTORY RATE) [2011-2015]
2206955
Unavailable
8
SPRING, 250 LB. RATE [2011-2015]
2206958
Unavailable
8
SPRING, 300 LB. RATE [2011-2015]
2206959
Unavailable
9
COLLAR, REAR SHOCK [2011-2015]
2206935
Unavailable
10
SHAFT, REAR SHOCK [2011-2015]
2206942
Unavailable
11
SET SCREW, 5/16 [2011-2015]
7520679
Unavailable
12
MH REAR SUSPENSION ARM ASSEMBLY [2011-2015][INCL. 12-29]
2206768
Unavailable
13
SLIDE-T [2011-2014][INCL. 26]
2206938
Unavailable
13
SLIDE-T BASE [2015]
2206697
Unavailable
14
SLIDE BUSHING [2011-2015]
2206712
Unavailable
15
BACK ARM UPPER BUSHING [2011-2015]
2206947
Unavailable
16
SLIDE-T CROSS SHAFT BUSHING [2011-2015]
5453940
Unavailable
17
MOUNTAIN TAMER DECAL � WHITE [2011-2015]
2206937
Unavailable
18
BOLT. 3/8�X1-1/4� [2011-2015]
7512405
$3.99
19
GREASE ZERK [2011-2015]
7082299
Unavailable
20
SNAP RING [2011-2015]
7710863
Unavailable
21
WIPER SEAL [2011-2015]
5416274
Unavailable
22
SCREW. 3/8� [2011-2015]
7520671
Unavailable
23
WASHER, 3/8" LOCK [2011-2015]
7557042
Unavailable
24
WASHER, 1� SPRING [2011-2015]
7557050
Unavailable
25
SUSPENSION REAR UPPER CROSS SHAFT [2011-2015][ST/LT]
2206862
Unavailable
25
SUSPENSION REAR UPPER CROSS SHAFT [2011-2015 SX]
2206872
Unavailable
26
SLIDE-T SHAFT [2015]
2206874
Unavailable
27
3/4� LOWER CROSS SHAFT [2011-2015]
2206941
Unavailable
28
SLIDE-T TUBE SPACER. 3-19/32� [2011-2015]
2206943
Unavailable
29
WASHER. LIMITER STRAP/SLIDE STOP WASHER [2011-2015]
7557046
Unavailable
30
SUSPENSION REAR ARM [2011-2015][INCL. 13,14,16,18,20]
2206761
Unavailable
31
BOLT. 3/8� [2011-2015]
7520636
Unavailable
