DRIVE TRAIN, DRIVESHAFT ASM. - J11-J15 ALL OPTIONS (600467)

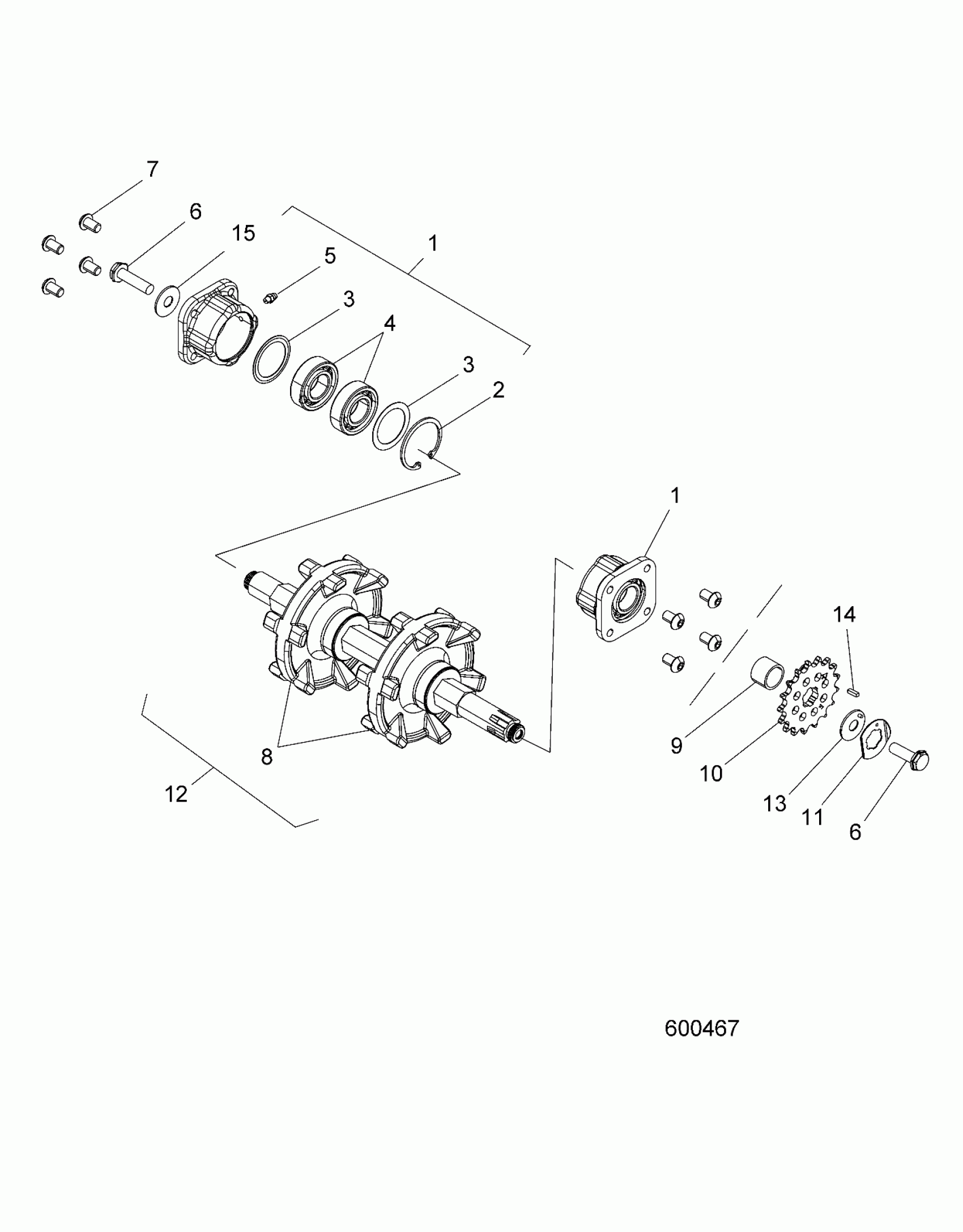

Polaris 2011 DRIVE TRAIN, DRIVESHAFT ASM. - J11-J15 ALL OPTIONS (600467) Diagram
#
1
ASM-BEARING HOUSING, DOUBLE [2015]
2206759
Unavailable
1
ASM-BEARING HOUSING, SINGLE [2011-2014]
2206758
Unavailable
1
ASM-BEARING HOUSING, DOUBLE [2015]
2206759
Unavailable
1
ASM-BEARING HOUSING, SINGLE [2011-2014]
2206758
Unavailable
2
RING, RETAINING [2011-2015]
7710862
Unavailable
3
RETAINING WASHER [2011-2014]
7557044
Unavailable
3
RETAINING WASHER [2015]
5264017
Unavailable
3
RETAINING WASHER [2011-2014]
7557044
Unavailable
3
RETAINING WASHER [2015]
5264017
Unavailable
4
AXLE BEARING W/GREASE HOLES [2011-2014][QTY 4, 2015]
2206826
Unavailable
5
GREASE ZERK [2011-2015]
7082299
Unavailable
6
BOLT-SHAFT [2011-2015]
7520654
Unavailable
6
BOLT-SHAFT [2011-2015]
7520654
Unavailable
7
BOLT-3/8" [2011-2014]
7520670
Unavailable
7
BOLT-3/8" [2015]
7520667
Unavailable
8
DRIVERS, 6 TOOTH, 2.86 PITCH
5453938
Unavailable
8
DRIVERS, 8 TOOTH, 2.52 PITCH
5453937
Unavailable
8
DRIVERS, 7 TOOTH, 2.52 PITCH
2206838
Unavailable
8
DRIVERS, 7 TOOTH, 2.86 PITCH
2206834
Unavailable
9
SPACER, .0453
2206886
Unavailable
10
SPROCKET, 20T [2011-2014][ST, LT]
2206696
Unavailable
10
SPROCKET, 17T [2015][ST, LT]
2206695
Unavailable
10
SPROCKET, 17T [2013-2015][SX120, SX137]
2206695
Unavailable
10
SPROCKET, 16T [OPT.]
2206694
Unavailable
11
LOCK TAB [2011-2015]
5264018
Unavailable
12
DRIVE SHAFT [2011-2015][ST, LT]
2206866
Unavailable
12
DRIVE SHAFT, SX [2013-2014][SX120]
2206870
Unavailable
12
DRIVE SHAFT, SX [2015][SX120, SX137]
2206870
Unavailable
12
DRIVE SHAFT 7T 2.52P SX 13-15 [SX 120/137 OPT. 2013-2015]
2207652
Unavailable
12
DRIVE SHAFT 6T 2.86P SX 15 [SX 120/137 OPT. 2015]
2207653
Unavailable
12
DRIVE SHAFT 8T 2.52P 11-12 [ST, LT OPT. 2011-2012]
2207654
Unavailable
12
DRIVE SHAFT 7T 2.86P 12-14 [ST, LT OPT. 2012-2014]
2207655
Unavailable
12
DRIVE SHAFT 6T 2.86P 15 [ST, LT OPT. 2015]
2207656
Unavailable
13
AXLE WASHER W/ROLL PIN [2011-2015]
2206771
Unavailable
14
KEY-WAY, 1/4x0.580 [2011-2015]
7662332
Unavailable
15
WASHER-AXLE [2011-2015]
7557047
Unavailable
