CHASSIS, TUNNEL ASM. - KTM 690, HUSKY 511, RH SIDE DRIVE MODELS (600469)

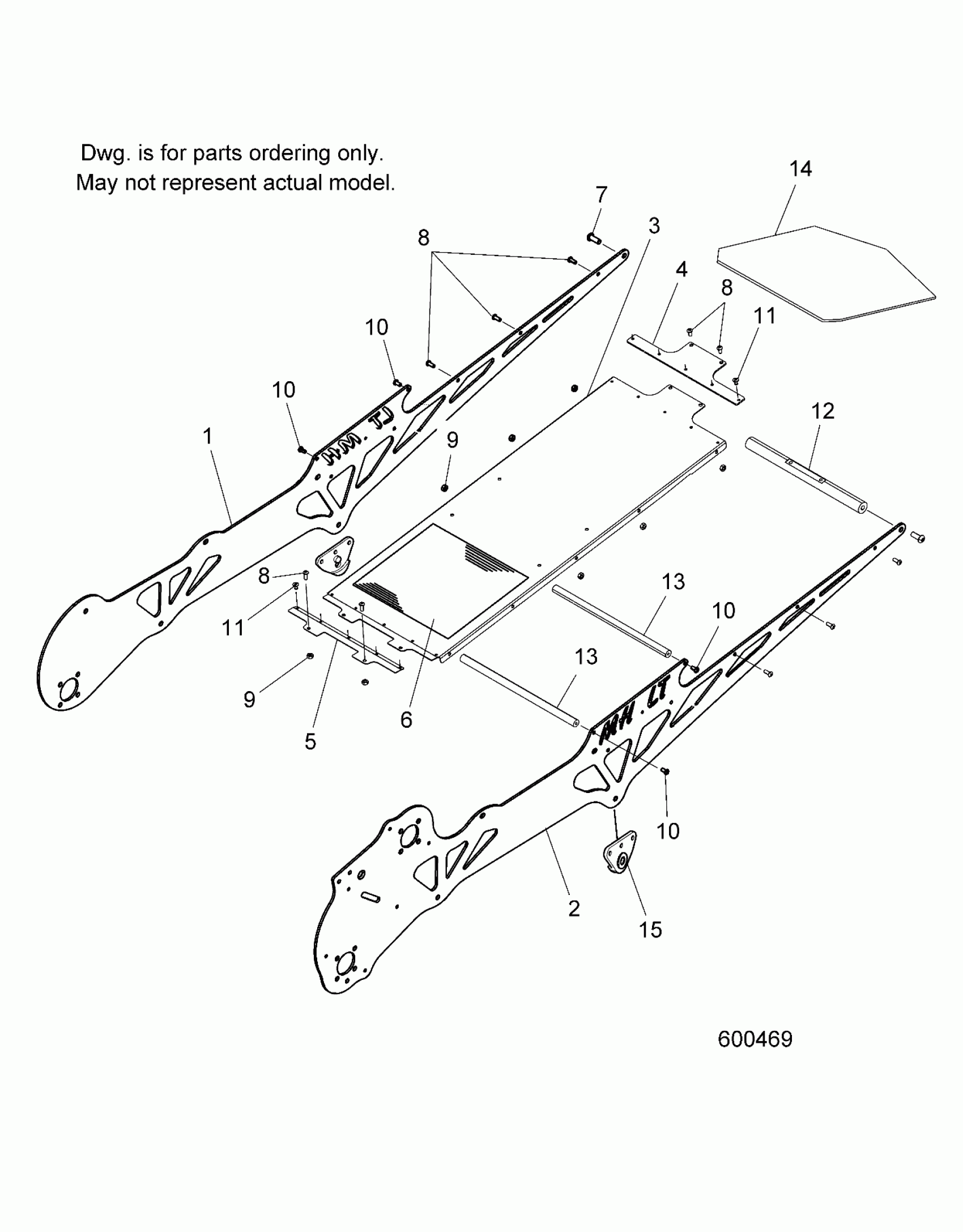

Polaris 2011 CHASSIS, TUNNEL ASM. - KTM 690, HUSKY 511, RH SIDE DRIVE MODELS (600469) Diagram
#
1
TUNNEL-SIDE, RH [2011-2014 RH SIDE DRIVE ST, LT]
2206897
Unavailable
1
TUNNEL-SIDE, RH [2015 KTM 690, HUSKY 511 ST]
2206910
Unavailable
1
TUNNEL-SIDE, RH [2015 KTM 690, HUSKY 511 LT]
2206912
Unavailable
1
TUNNEL-SIDE, RH [2011-2014 KTM 690, HUSKY 511]
2206895
Unavailable
2
TUNNEL-SIDE, LH [2011-2014 ST, LT]
2206896
Unavailable
2
TUNNEL-SIDE, LH [2015 KTM 690, HUSKY 511 LT]
2206913
Unavailable
2
TUNNEL-SIDE, LH [2011-2014 RH SIDE DRIVE ST, LT]
2206895
Unavailable
2
TUNNEL-SIDE, LH [2015 KTM 690, HUSKY 511 ST]
2206911
Unavailable
3
ASM-TUNNEL, TOP [2011-2014 ALL][INCL.
2206763
Unavailable
3
ASM-TUNNEL, TOP [2015 LT][INCL.
2206765
Unavailable
3
ASM-TUNNEL, TOP [2015 ST][INCL.
2206764
Unavailable
4
TUNNEL REINFORCEMENT, REAR [2011-2015 ALL]
2206904
Unavailable
5
TUNNEL REINFORCEMENT, FRONT [2015 ALL]
2206742
Unavailable
6
MAT-STORAGE [2015 ALL]
2206850
Unavailable
7
BOLT, 3/8" [2011-2015]
7520668
Unavailable
8
BOLT, 1/4" [2011-2014][QTY 11 FOR 137"]
7520665
Unavailable
8
BOLT, 1/4" [2015][QTY 14 FOR 137"]
7520665
Unavailable
8
BOLT, 1/4" [2011-2014][QTY 11 FOR 137"]
7520665
Unavailable
8
BOLT, 1/4" [2015][QTY 14 FOR 137"]
7520665
Unavailable
8
BOLT, 1/4" [2011-2014][QTY 11 FOR 137"]
7520665
Unavailable
8
BOLT, 1/4" [2015][QTY 14 FOR 137"]
7520665
Unavailable
9
NUT-1/4" [2015][QTY 12 FOR 137"]
7547864
Unavailable
9
NUT-1/4" [2011-2014][QTY 9 FOR 137"]
7547864
Unavailable
9
NUT-1/4" [2015][QTY 12 FOR 137"]
7547864
Unavailable
9
NUT-1/4" [2011-2014][QTY 9 FOR 137"]
7547864
Unavailable
10
BOLT-1/4" [2015 ALL]
7520627
Unavailable
10
BOLT-1/4" [2015 ALL]
7520627
Unavailable
10
BOLT-1/4" [2015 ALL]
7520627
Unavailable
10
BOLT-1/4" [2015 ALL]
7520627
Unavailable
11
RIVET-3/16" [2011-2014 ALL]
7662330
Unavailable
11
RIVET-3/16" [2015 ALL]
7662330
Unavailable
11
RIVET-3/16" [2011-2014 ALL]
7662330
Unavailable
11
RIVET-3/16" [2015 ALL]
7662330
Unavailable
12
BUMPER [2011-2015 ALL]
2206860
Unavailable
13
SHAFT-STORAGE RACK [2015 ALL]
2206875
Unavailable
13
SHAFT-STORAGE RACK [2015 ALL]
2206875
Unavailable
14
ASM-SNOW FLAP, LT [2011-2014 LT MODELS]
2206743
Unavailable
15
BRACKET-DROP DOWN ASM [2015 ONLY]
2206779
Unavailable
