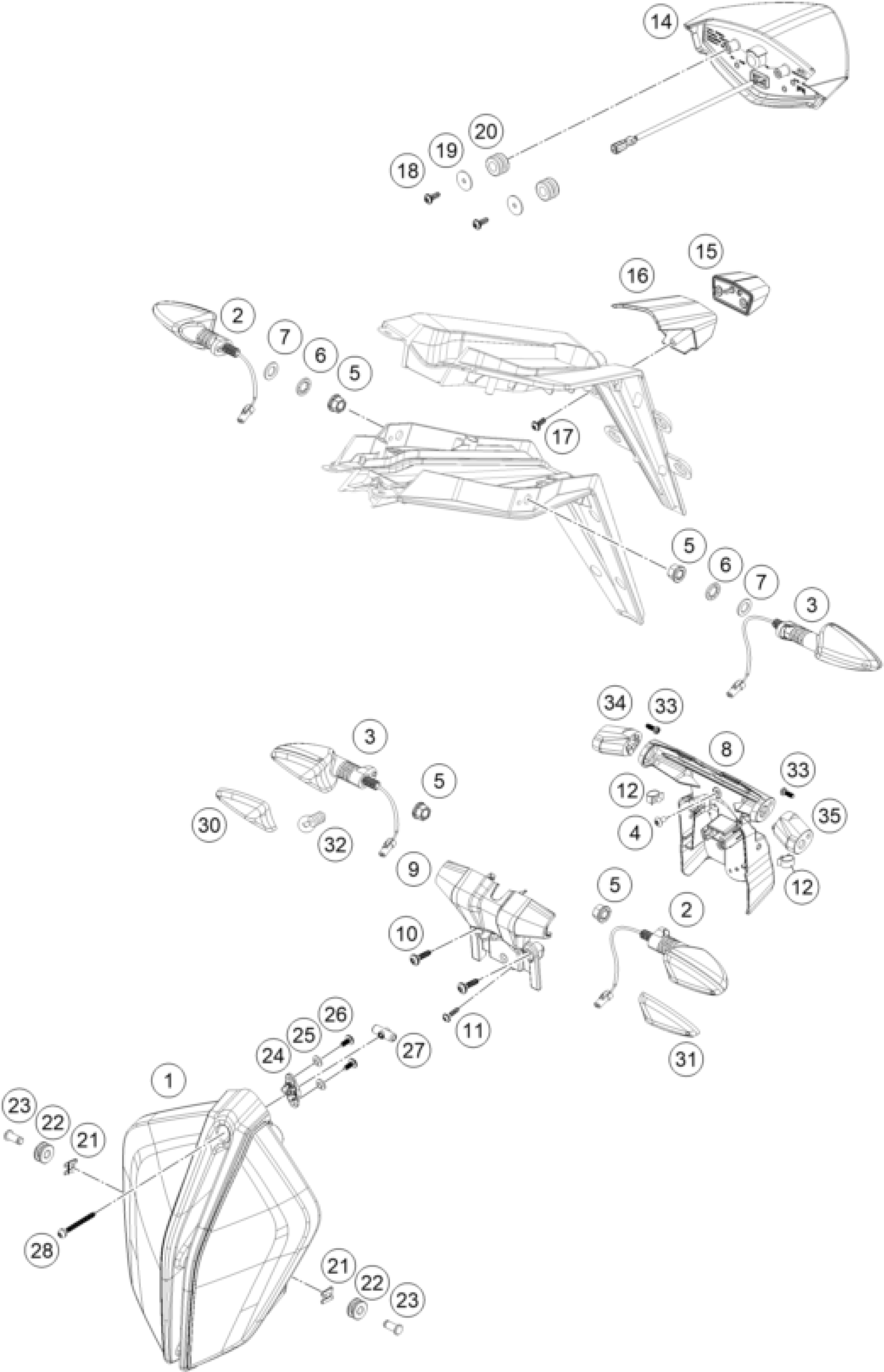

KTM 1290 SUPERDUKE R BLACK 17 <2017 LIGHTING SYSTEM Diagram

#

Description

Price

1

Headlight LED

61614001000

$1,104.69

2

FLASHER CPL.FRONT L/S REAR R/S

78114025000

$32.72

3

FLASHER CPL.FRONT R/S REAR L/S

78114026000

$32.72

4

SCREW TORX M5X10 05

58605083010

$2.05

5

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

6

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

7

Washer DIN0433-M10

0433100003

$1.49

8

Indicator carrier rear part US

61614534000

$19.03

9

Flasher support front

61614033000

$22.01

10

Ejot Altracs 50x20

61614018200

Unavailable

11

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

12

WIRING HOLDER 16MM

57013072100

$1.49

14

REAR LIGHT SUPERDUKE SAE

61314140200

$259.17

15

license plate lighting

60314047000

$35.62

16

COVER NUMBER PLATE LIGHT

61308024000

$6.26

17

EJOT PT screw K50x12

0081050121

$2.05

18

EJOT PT screw K50x14

0081050141

$1.49

19

WASHER DIN522 A2K 4.3X20X1.25

0522040003

$1.49

20

RUBBER BUSH 05

61013013000

$3.08

21

SECURING CLIP D=8MM 03

60013058000

$2.05

22

Rubber bushing

61614013050

$2.05

23

BOLT F. LINK FORK 8X20X16,5

60013057000

$4.11

24

Ballhead holder

61614020100

$13.92

25

Bush 13X7X3.3

61412032010

$1.49

26

EJOT ALTRACS 50X12

61614018100

$1.49

27

Shaft

61614019000

$2.05

28

EJOT PT SCHRAUBE 50X54

61614020010

$5.23

30

FLASHER LENS L/S R/S TRANSP.

78114028000

$8.50

31

FLASHER LENS FRO.L/S-REAR R/S

78114027000

$8.50

32

BULB 12V ORANGE (RY10W)

60114027000

$6.63

33

SCREW FOR PLASTIC PT K50X14T25

0081250141

$2.05

34

Indicator Extension USA right

61614525040

$17.10

35

Indicator carr. extension USA

61614525030

$17.10
