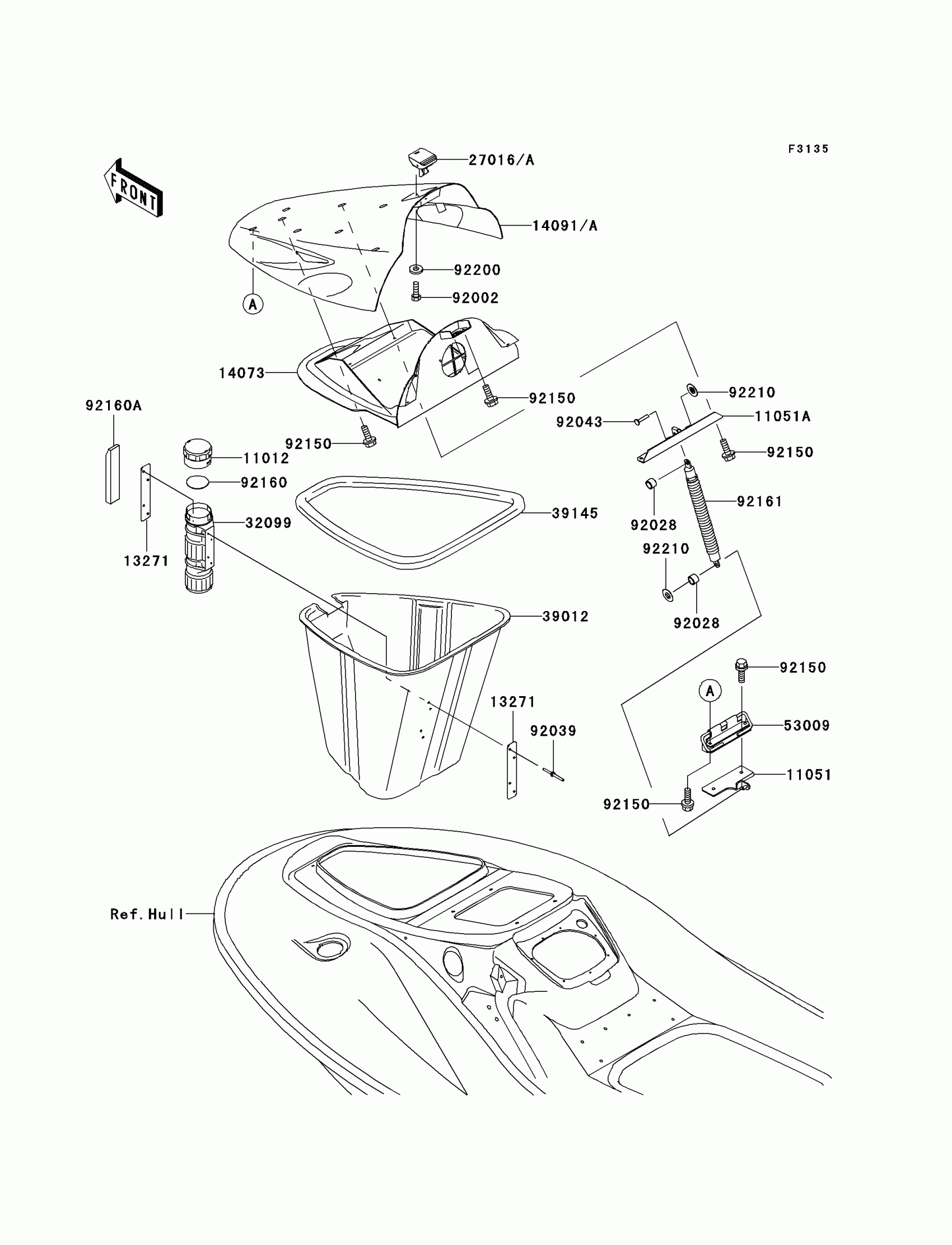

Kawasaki 1200 STX-R Hull Front Fittings Diagram

Description

Price

11012

CAP,FIRE EXTINGUISHER

11012-3766

$10.30

11051

BRACKET

11051-3741

Unavailable

11051A

BRACKET

11051-3766

$30.55

13271

PLATE,FIRE EXTINGUISHER

13271-3775

$12.66

14073

DUCT,FR

14073-3777

$144.60

14091

COVER,HATCH,C.L.GREEN

14091-3734-367

$140.60

27016A

LOCK-ASSY,HATCH COVER

27016-3756

$125.27

32099

CASE,FIRE EXTINGUISHER

32099-3769

$19.37

39012

CASE-STORAGE,FR

39012-3726

$30.54

39145

TRIM-SEAL,L=1380

39145-3773

$77.78

53009

HINGE,HATCH COVER

53009-3725

$117.70

92002

BOLT,5X16

92002-3747

$4.45

92028

BUSHING

92028-3765

$3.29

92039

RIVET

92039-3755

$6.57

92043

PIN,6X33

92043-3748

$11.20

92150

BOLT,6X18

92150-3729

$4.69

92160

DAMPER

92160-3814

$7.91

92160A

DAMPER

92160-3821

$8.86

92161

DAMPER

92161-3705

Unavailable

92200

WASHER,5.9X16X1.5

92200-3714

$2.14

92210

NUT,SPEED,6MM

92210-3739

$1.86
