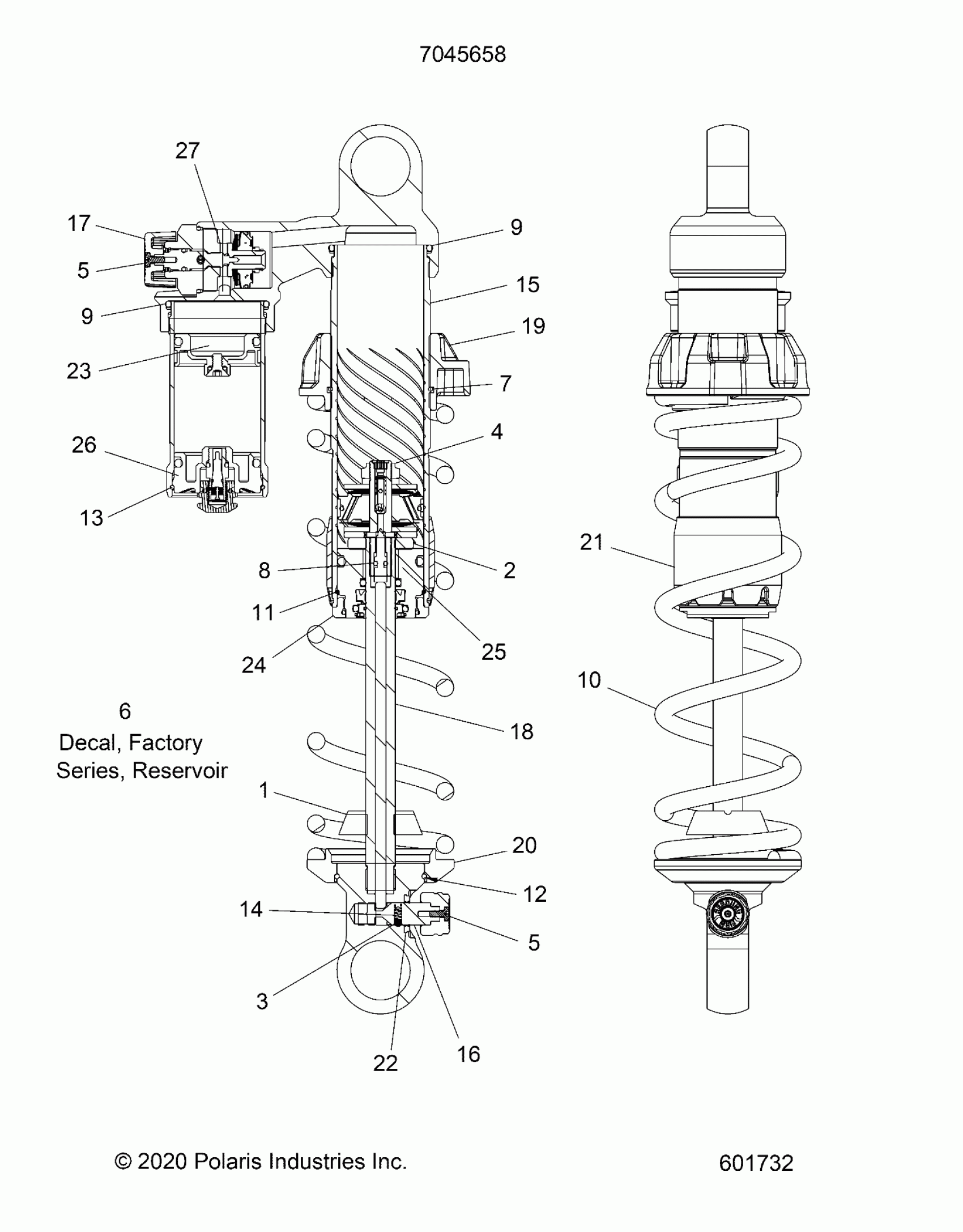

Polaris 120 SX/120R RACE BLK (R02) - J21FBGXXXA/FBRXXXA SUSPENSION, SHOCK, FRONT/REAR, FOX SX - J21FBGXXXA (601415) Diagram

#

Description

Price

-

ASM-SHOCK FOX SX 200# BLK [INCL. 1-27]

7045658

Unavailable

-

K-SHOCK REBUILD

1504460

Unavailable

1

BUMPER, .498x.40TLG

1501102

$12.94

2

BUMPER, T/O

1501124

$8.89

3

AIR VALVE PARTS: BALL [� 0.1250] 52100 GRADE 25 STEEL, CHROME

1500071

$6.76

4

NUT, LOCK, 3/8-24

1500016

$12.79

5

SCREW, #4, SS PAN

1501011

$13.59

5

SCREW, #4, SS PAN

1501011

$13.59

6

DECAL [NOT AVAILABLE]

-------

Unavailable

7

O-RING

1500997

$27.99

8

SEAL,O-RING (02903005)

1504464

Unavailable

9

SEAL-O-RING, 1.455ID

1504449

Unavailable

9

SEAL-O-RING, 1.455ID

1504449

Unavailable

10

SPRING-COIL 8X1.875

1504465

Unavailable

11

RING-RETAINING 1.455ID

1504450

Unavailable

12

Retainer, Spring

1500829

$2.63

13

RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS

1501052

$14.21

14

SPRING-MUSIC WIRE

1501332

Unavailable

15

BODY-SHOCK [NOT AVAILABLE]

-------

Unavailable

16

KNOB-POST, SS

1501339

Unavailable

17

KNOB-LOW SPEED ADJ

1501019

$10.39

18

SHAFT- 0.498DIA X 6L

1504466

Unavailable

19

RING-SPRING PRELOAD

1501236

$32.37

20

RETAINER-SPRING (234004257)

1504467

Unavailable

21

GUIDE, SPRING

1500930

$39.99

22

PLUG-REB ADJ

1501340

Unavailable

23

ASM-PISTON (80500062)

1504468

Unavailable

24

ASM-BEARING (81203035)

1504462

Unavailable

25

ASM_BEARING (81203036)

1504459

Unavailable

26

ASM-RES. END CAP (81300280)

1504463

Unavailable

27

ASM-DAMPING ADJUSTER (81504046)

1504461

Unavailable
