- 120 SX/120R RACE BLK (R02) - J21FBGXXXA/FBRXXXA
SUSPENSION, SHOCK, FRONT/REAR, FOX RACE - J21FBRXXXA (601415)

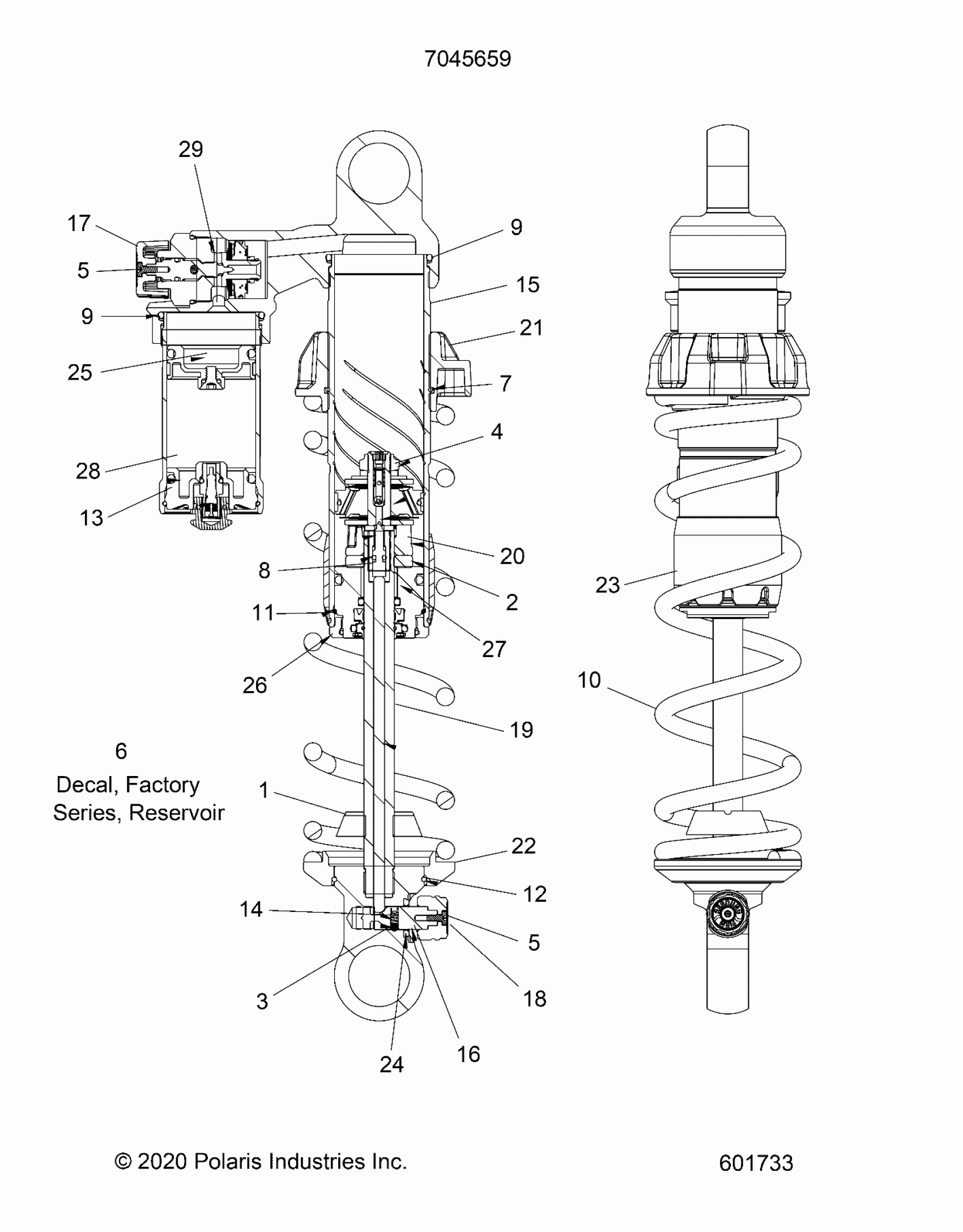

Polaris 120 SX/120R RACE BLK (R02) - J21FBGXXXA/FBRXXXA SUSPENSION, SHOCK, FRONT/REAR, FOX RACE - J21FBRXXXA (601415) Diagram
#
Description
Price
-
ASM-SHOCK FOX RACE 200# BLK [INCL. 1-29]
7045659
Unavailable
-
K-SHOCK REBUILD
1504460
Unavailable
1
BUMPER, .498x.40TLG
1501102
$12.94
2
BUMPER, T/O
1501124
$8.89
3
AIR VALVE PARTS: BALL [� 0.1250] 52100 GRADE 25 STEEL, CHROME
1500071
$6.76
4
NUT, LOCK, 3/8-24
1500016
$12.79
5
SCREW, #4, SS PAN
1501011
$13.59
5
SCREW, #4, SS PAN
1501011
$13.59
6
DECAL [NOT AVAILABLE]
-------
Unavailable
7
O-RING
1500997
$27.99
8
SEAL,O-RING (02903005)
1504464
Unavailable
9
SEAL-O-RING, 1.455ID
1504449
Unavailable
9
SEAL-O-RING, 1.455ID
1504449
Unavailable
10
SPRING-COIL 8X1.875
1504465
Unavailable
11
RING-RETAINING 1.455ID
1504450
Unavailable
12
Retainer, Spring
1500829
$2.63
13
RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS
1501052
$14.21
14
SPRING-MUSIC WIRE
1501332
Unavailable
15
BODY-SHOCK [NOT AVAILABLE]
-------
Unavailable
16
KNOB-POST, SS
1501339
Unavailable
17
KNOB-LOW SPEED ADJ
1501019
$10.39
18
KNOB-REBOUND, BLK ANO
1501334
Unavailable
19
SHAFT- 0.498DIA X 6L
1504466
Unavailable
20
SPACER, SHAFT
1501121
$15.99
21
RING-SPRING PRELOAD
1501236
$32.37
22
RETAINER-SPRING (234004257)
1504467
Unavailable
23
GUIDE, SPRING
1500930
$39.99
24
PLUG-REB ADJ
1501340
Unavailable
25
ASM-PISTON (80500062)
1504468
Unavailable
26
ASM-BEARING (81203035)
1504462
Unavailable
27
ASM_BEARING (81203036)
1504459
Unavailable
28
ASM-RES. END CAP (81300280)
1504463
Unavailable
29
ASM-DAMPING ADJUSTER (81504046)
1504461
Unavailable
