- 120 SX/120R RACE BLK (R02) - J21FBGXXXA/FBRXXXA
DRIVE TRAIN, JACKSHAFT AND BRAKE DISC - J21FBGXXXA/FBRXXXA (C601578)

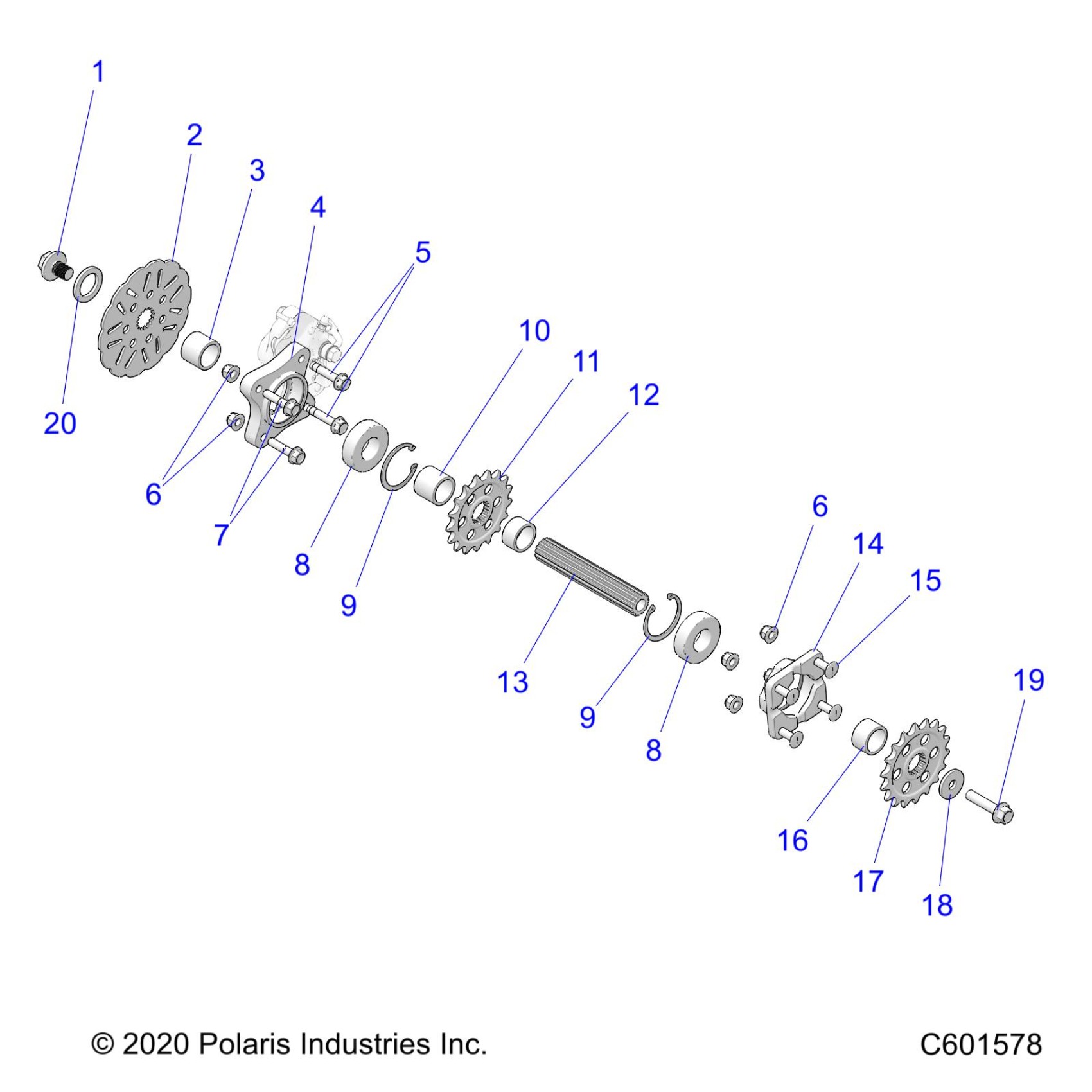

Polaris 120 SX/120R RACE BLK (R02) - J21FBGXXXA/FBRXXXA DRIVE TRAIN, JACKSHAFT AND BRAKE DISC - J21FBGXXXA/FBRXXXA (C601578) Diagram
#
Description
Price
1
SCR-HXFL M14X1.5X20 7075 ALU [SX]
7521295
Unavailable
1
SCR-HXFL-M10X1.25X45 ZOD P30 [RACE]
7520187
$3.99
2
DISC-BRAKE SPLINED
1913425
Unavailable
3
TUBE-SPACER BRAKE NO HUB
5142620
Unavailable
4
ASM-BEARING FRAME SINGLE [SX] [INCL. 8,9, AND HOUSING]
1523594
Unavailable
4
ASM-BEARING FRAME SNGL LW [RACE] [INCL. 8,9, AND HOUSING]
1523881
Unavailable
5
SCR-HXFL-M8X1.25X40 8.8 ZODP30
7519267
$3.99
6
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
6
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
7
SCR-HXFL-M8X1.25X35 8.8 ZODv [SX]
7519052
$1.59
7
SCR-HXFL-M8X1.25X20 ZB P30 [RACER]
7521186
$3.19
8
BEARING
3514308
Unavailable
8
BEARING
3514308
Unavailable
9
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
9
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
10
TUBE-SPACER RH FRAME
5142621
Unavailable
11
SPROCKET-17T 520 SLW HD
3222362
Unavailable
11
SPROCKET-18T 520 SLW HD [OPT]
3222363
Unavailable
11
SPROCKET-16T 520 [OPT]
3222291
Unavailable
12
TUBE-SPACER CENTER NARROW
5143061
Unavailable
13
JACKSHAFT-10IN HOLLOW [SX]
6231150
Unavailable
13
JACKSHAFT-10IN WIDE SOLID HT [RACER]
6231162
Unavailable
14
ASM-BEARING, SINGLE [INCL. 8,9,AND HOUSING]
1523108
Unavailable
15
SCR-RHCAR-M8X1.25X25 8.8 ZOD
7520297
$4.99
16
TUBE-SPACER LH
5141032
Unavailable
17
SPROCKET-18T 520 SLW HD
3222363
Unavailable
17
SPROCKET-17T 520 SLW HD [OPT]
3222362
Unavailable
17
SPROCKET-16T 520 [OPT]
3222291
Unavailable
18
WSHR-10.5X31.8X3.43 ZOD HRD
7556800
$7.19
19
SCR-HXFL-M10X1.25X45 ZOD P30
7520187
$3.99
20
BUSHING-1X1 1/2X .145 [SX]
7556162
$3.99
