- 120 SX/120R RACE BLK (R02) - J21FBGXXXA/FBRXXXA
CHASSIS, SUB FRAME ASM., RACE - J21FBRXXXA (C601687)

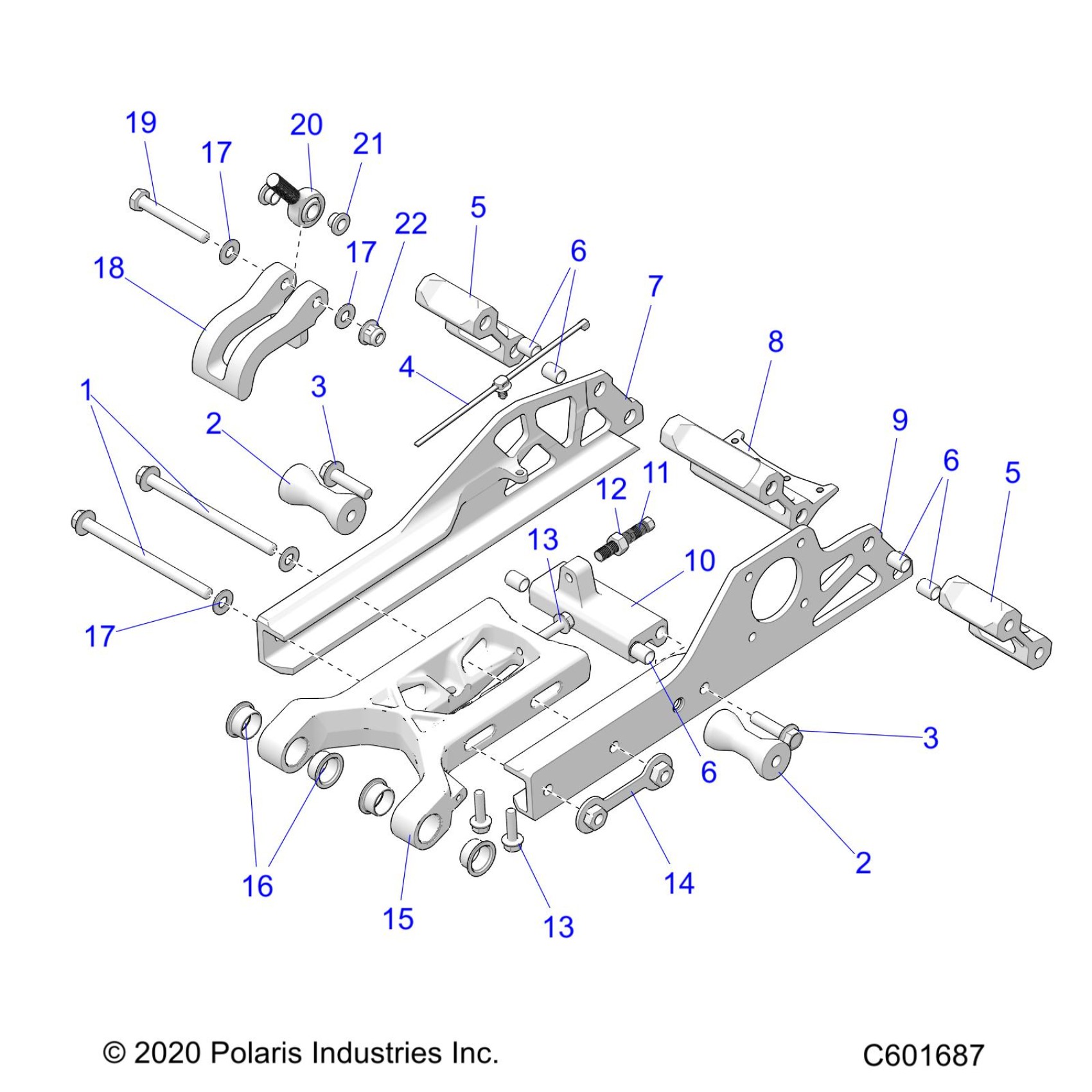

Polaris 120 SX/120R RACE BLK (R02) - J21FBGXXXA/FBRXXXA CHASSIS, SUB FRAME ASM., RACE - J21FBRXXXA (C601687) Diagram
#
Description
Price
1
SCR-HXFL-M10X1.5X145,8.8,ZPC
7519954
Unavailable
2
SPACER-TUNNEL SIDE FRT NARROW
5143057
Unavailable
2
SPACER-TUNNEL SIDE FRT NARROW
5143057
Unavailable
3
SCR-HXFL M10X1.5X40 10.9 ZB P8
7521118
$3.19
3
SCR-HXFL M10X1.5X40 10.9 ZB P8
7521118
$3.19
4
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
5
BRACE-SUBFRAME SIDE REAR NAR
5143056
Unavailable
5
BRACE-SUBFRAME SIDE REAR NAR
5143056
Unavailable
6
DWL-HOL 13X16.5
7662404
Unavailable
6
DWL-HOL 13X16.5
7662404
Unavailable
6
DWL-HOL 13X16.5
7662404
Unavailable
7
FRAME-SUB MACH SHORT RH
5142706
Unavailable
8
BRACE-SUBFRAME CNTR R TAIL LWT
5143298
Unavailable
9
FRAME-SUB MACH SHORT LH
5142705
Unavailable
10
BRACE-SUBFRM CENTER TSS RELO
5143988
Unavailable
11
SCR-HH-M10X1.5X55,8.8,ZOD
7527838
Unavailable
12
NUT-HEX-M10X1.5 8 ZOD
7547707
$4.99
13
SCREW-HXFL-M8X1.25X30 10.9 ZPB
7518884
$1.99
13
SCREW-HXFL-M8X1.25X30 10.9 ZPB
7518884
$1.99
14
NUT PLATE, MBLK
1025326-458
Unavailable
15
FRAME-MOUNT FRONT MACH
5141041
Unavailable
16
BUSHING-FRAME MOUNT
5453986
Unavailable
17
WASHR-10.5X22X1.6 SPC
7556155
$5.22
17
WASHR-10.5X22X1.6 SPC
7556155
$5.22
17
WASHR-10.5X22X1.6 SPC
7556155
$5.22
18
BRKT-RELOCATE TSS
5143987
Unavailable
19
SCR-M10X1.5X75 10.9 HCS ZOD
7519015
$5.59
20
ROD END-STRUT TSS 1/2"-20C-MT
7061245
Unavailable
21
RDCR-LOW STRUT 0.100W 10MMID
5143986
Unavailable
22
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
