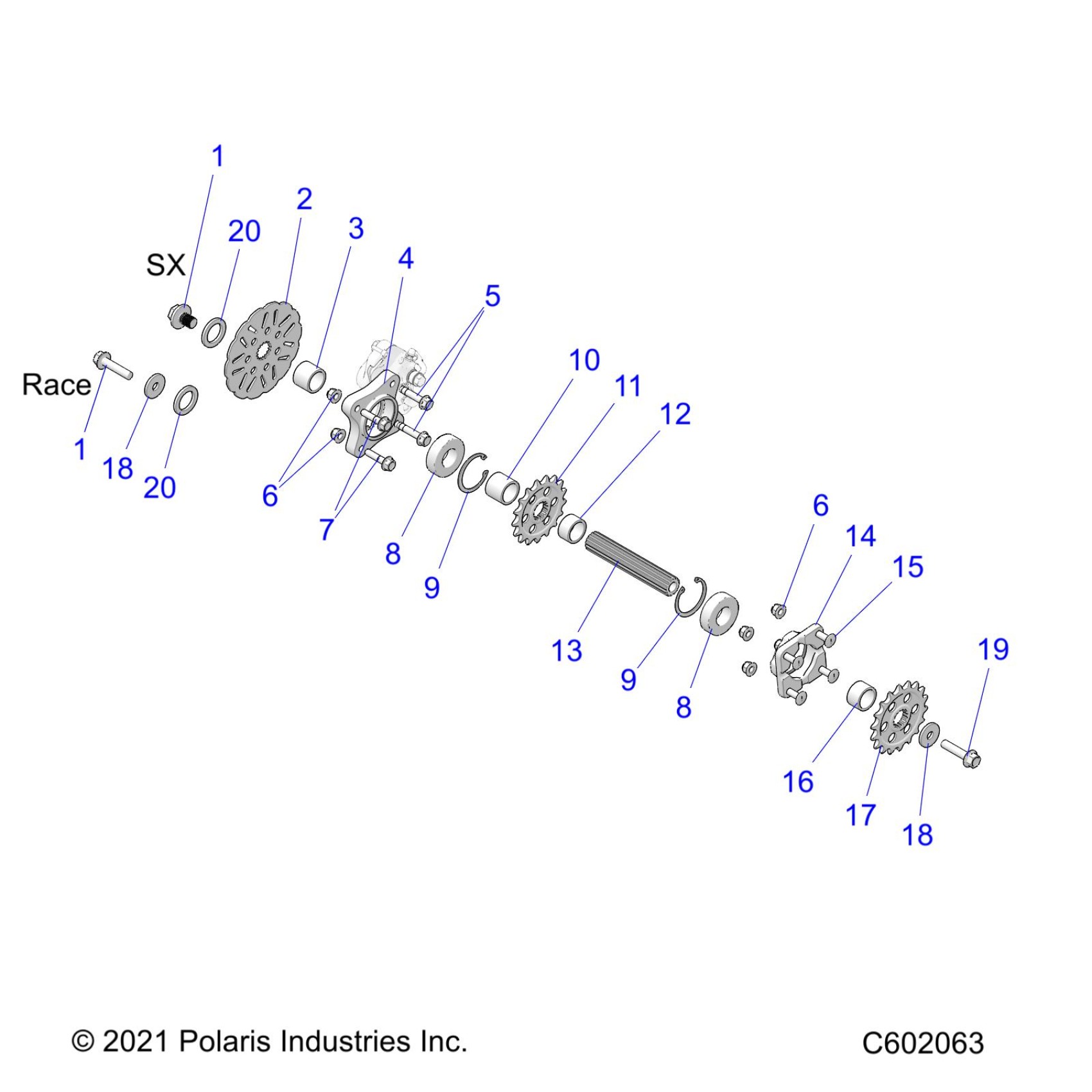

Polaris 120 SX/120 R (R01) - J22FBLXXXA/FBRXXXA DRIVE TRAIN, JACKSHAFT AND BRAKE DISC - J22FBLXXXA/FBRXXXA (C602063) Diagram

#

Description
Price

1

SCR-HXFL M14X1.5X20 7075 ALU [SX]

7521295

Unavailable

1

SCR-HXFL-M10X1.25X45 ZOD P30 [RACE]

7520187

$3.99

1

SCR-HXFL M14X1.5X20 7075 ALU [SX]

7521295

Unavailable

1

SCR-HXFL-M10X1.25X45 ZOD P30 [RACE]

7520187

$3.99

2

DISC-BRAKE SPLINED

1913425

Unavailable

3

TUBE-SPACER BRAKE NO HUB

5142620

Unavailable

4

ASM-BEARING FRAME SINGLE [SX] [INCL. 8,9, AND HOUSING]

1523594

Unavailable

4

ASM-BEARING FRAME SNGL LW [RACE] [INCL. 8,9, AND HOUSING]

1523881

Unavailable

5

SCR-HXFL-M8X1.25X40 8.8 ZODP30

7519267

$3.99

6

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

6

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

7

SCR-HXFL-M8X1.25X35 8.8 ZODv [SX]

7519052

$1.59

7

SCR-HXFL-M8X1.25X20 ZB P30 [RACER]

7521186

$3.19

8

BEARING

3514308

Unavailable

8

BEARING

3514308

Unavailable

9

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

9

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

10

TUBE-SPACER RH FRAME

5142621

Unavailable

11

SPROCKET-17T 520 SLW HD

3222362

Unavailable

11

SPROCKET-18T 520 SLW HD [OPT]

3222363

Unavailable

11

SPROCKET-16T 520 [OPT]

3222291

Unavailable

12

TUBE-SPACER CENTER NARROW

5143061

Unavailable

13

JACKSHAFT-10IN HOLLOW [SX]

6231150

Unavailable

13

JACKSHAFT-10IN WIDE SOLID HT [RACER]

6231162

Unavailable

14

ASM-BEARING, SINGLE [INCL. 8,9,AND HOUSING]

1523108

Unavailable

15

SCR-RHCAR-M8X1.25X25 8.8 ZOD

7520297

$4.99

16

TUBE-SPACER LH

5141032

Unavailable

17

SPROCKET-18T 520 SLW HD

3222363

Unavailable

17

SPROCKET-17T 520 SLW HD [OPT]

3222362

Unavailable

17

SPROCKET-16T 520 [OPT]

3222291

Unavailable

18

WSHR-10.5X31.8X3.43 ZOD HRD [QTY. 2 FOR RACE]

7556800

$7.19

18

WSHR-10.5X31.8X3.43 ZOD HRD [QTY. 2 FOR RACE]

7556800

$7.19

19

SCR-HXFL-M10X1.25X45 ZOD P30

7520187

$3.99

20

BUSHING-1X1 1/2X .145

7556162

$3.99

20

BUSHING-1X1 1/2X .145

7556162

$3.99
