TANK, SEAT

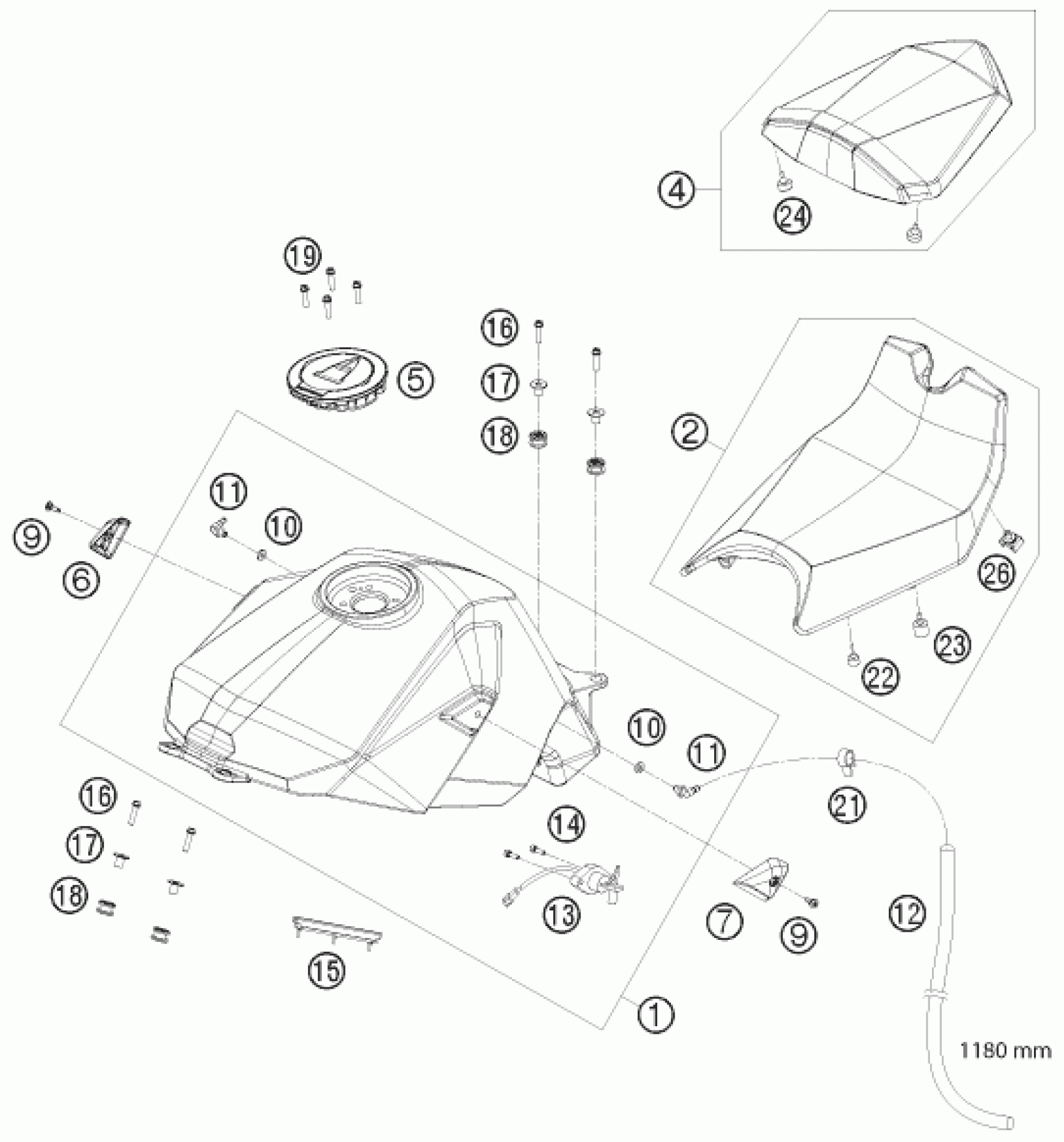

KTM 1190 RC8 WHITE 2010 TANK, SEAT Diagram
#
Description
Price
1
FUEL TANK CPL. WHITE MATT RC8
6900701314427A
$1,128.58
2
SEAT
69007040200
$170.09
4
PASSENGER SEAT
69007047100
Unavailable
5
TANK CAP
69007008100
$290.59
6
TANK PROTECTION R/S BLACK BR.
6900702610030
$8.69
7
TANK PROTECTION L/S BLACK BR.
6900702510030
$8.69
9
SPECIAL SCREW M5X12 ISA30 ALU
69007025050
$5.23
10
GASKET FOR CONNECTING PIECE 03
60007024050
$2.05
11
CONNECT.PIECE F.OVERFLOW M7 03
60007024000
$2.05
12
HOSE NBR 5,4X9,4 PER METER
60007026001
Unavailable
13
GAS-LEVEL SENSOR ADV. 2006
58207080100
$80.31
14
AH collar screw DIN 912 M5x16
0912050163
$1.49
15
TANK REST RUBBER
69007014100
$13.64
16
HH collar screw M6x30 TX30
0025060306
$3.08
17
COLLAR BUSH. 6,2X10X21X14MM 08
69007028000
$5.23
18
rubber grommet, tank mounting
69007027000
$3.08
19
AH SCREW DIN0912-M 5X12
0912050123
$2.05
21
YDNAC-clamp 10101 (10.4MM)
58007017000
$3.08
22
DISTANCE RUBBER 14X8
69007040010
$6.18
23
DISTANCE RUBBER 17,8X16
69007040020
$5.92
24
DISTANCE RUBBER 18X8
69007040030
$7.38
26
SPACER RUBBER
69007040070
$20.66
