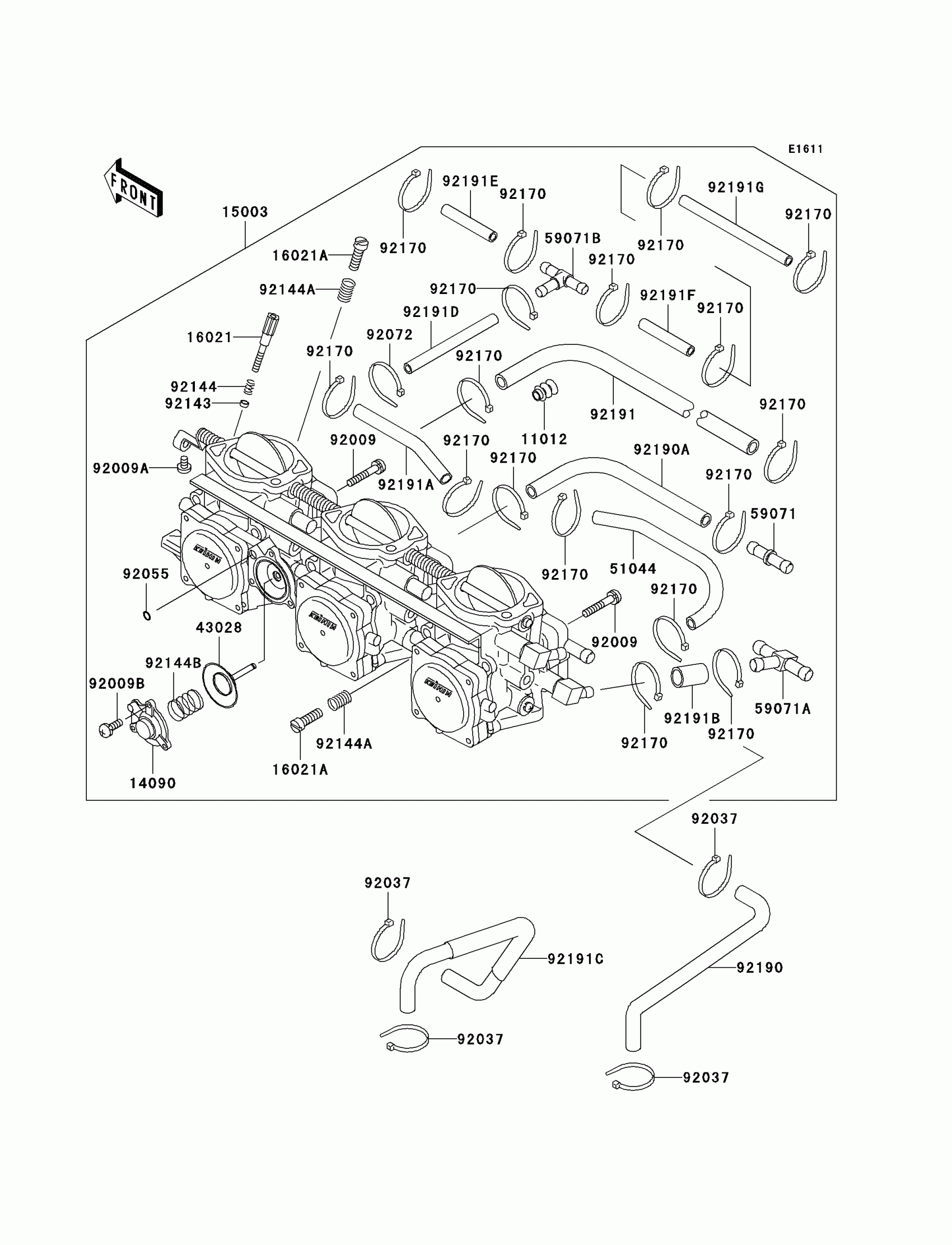

Kawasaki 1100 ZXi Carburetor(JH1100-A1/A2) Diagram

#

Description
Price

11012

CAP,ACCELERATOR

11012-3793

Unavailable

14090

COVER,ACCELERATOR PUMP

14090-3791

Unavailable

15003

CARBURETOR-ASSY

15003-3718

$1,410.95

16021

SCREW-THROTTLE STOP

16021-3702

$47.91

16021A

SCREW-THROTTLE STOP

16021-3704

$42.88

43028

DIAPHRAGM,ACCELERATOR PUMP

43028-3710

$35.13

51044

TUBE-ASSY,5.3X10.5X180

51044-3701

Unavailable

59071

JOINT,PIPE

59071-3740

Unavailable

59071A

JOINT

59071-3741

Unavailable

59071B

JOINT,3WAY,T

59071-3752

$10.19

92009

SCREW,5X28

92009-3783

$13.33

92009A

SCREW,4X6

92009-3786

$5.23

92009B

SCREW,4X12

92009-3832

Unavailable

92037

CLAMP

92037-1173

$3.49

92055

RING-O,ACCELERATOR PUMP

92055-3747

Unavailable

92072

BAND

92072-3807

Unavailable

92143

COLLAR,THROTTLE STOP SCREW

92143-3709

$14.05

92144

SPRING,THROTTLE STOP SCREW

92144-3706

$7.51

92144A

SPRING,THROTTLE STOP SCREW

92144-3745

$7.98

92144B

SPRING,ACCELERATOR PUMP

92144-3762

Unavailable

92170

CLAMP,TUBE

92170-3740

$5.23

92190

TUBE

92190-3949

Unavailable

92190A

TUBE

92190-3997

Unavailable

92191

TUBE

92191-3710

Unavailable

92191A

TUBE

92191-3711

$6.78

92191B

TUBE

92191-3712

Unavailable

92191C

TUBE

92191-3784

Unavailable

92191D

TUBE,2.5X7X85

92191-3787

Unavailable

92191E

TUBE,2.5X7X33

92191-3788

Unavailable

92191F

TUBE,2.5X7X60

92191-3789

Unavailable

92191G

TUBE,2.5X7X108

92191-3790

Unavailable
