Description

Price

1

Socket Screw M10 x 30 | XT

205003044

$3.17

2

Hex. Screw M6 X 40

207064044

$1.48

3

Hex. Screw M4 X 25

207142544

$2.00

4

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

6

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

7

Hex. Flange Screw M6 X 16

207661644

$0.74

8

Hex. Flange Screw M6 X 20

207662044

$2.00

9

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

10

Hex. Nut M6

232061600

$1.15

11

Elastic Stop Nut M4

232541414

$0.58

12

Elastic Stop Nut M6

232561434

$1.99

13

Elastic Stop Nut M6

232561434

$1.99

14

Hex. Flange Nut M6

233061414

$1.68

15

Hex. Flange Elastic Nut M10

233201414

$1.58

16

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

17

Elastic Flange Nut M5

233251494

$2.11

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Hex. Flange Elastic Nut M6

233261494

$1.58

20

Flat Washer M5

234051410

$0.53

22

Flat Washer 6 mm

234062410

$0.77

22

Stainless Steel Flat Washer

234062670

$2.11

24

Lock Washer Helical M6

234161601

$1.15

25

External Serrated Lock Washer 6 mm

234461608

$1.15

26

TORX SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership

235382046

$1.69

27

Panel Nut M6 X 1.0

250100198

$2.11

29

Torx Head Screw M6 X 16

250000717

$2.11

30

Torx Screw K50 X 16

250000720

$1.69

31

Phillips Screw K40 X 16

250000723

$0.98

32

Clevis Pin

250400021

$13.18

33

Cotter Pin

250400022

$9.69

34

Clip

270000141

$11.49

35

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

36

Diagnostic Connector

278002704

$19.49

37

Starter Relay

278003012

$42.49

38

Pop Rivet 3/16"

293150103

$0.55

40

Mount Dart

293730040

$1.04

41

Tie Wrap 142 mm

293750002

$1.25

42

Tie Wrap 368 mm

293750008

$1.04

96

Tie-Rap 173 mm

293750009

$1.04

97

Pop Rivet 3/16"

390402400

$0.35

98

Tie-Rap 180 mm

414115200

$0.11

105

BRP Logo13 mm

704904615

$13.49

107

Winch Hook Kit

705014949

$24.99

108

WINCH CABLE GUIDE - Call your local BRP dealership | XT

715001119

Unavailable

109

Not Available As Spare Part - Friction Washer

Unavailable

109

CLAMP - Call your local BRP dealership

705006999

Unavailable

110

Winch | Package-XT, XTP

705008547

$739.99

112

Winch Support

715001699

$143.49

113

U-Bolt M10

705203504

$13.24

115

Clip

710000992

$4.29

116

Winch Connector

710001023

$51.99

117

LH High Light Support

710001036

$5.29

118

LH Low Light Support

710001037

$9.09

119

Connector Ass'y | XT, Includes 55 to 57

710001059

$9.10

120

RH Low Front Housing

710001081

$19.99

121

RH Low Rear Housing

710001082

$12.99

122

LH Low Front Housing

710001083

$19.99

123

LH Low Rear Housing

710001084

$12.99

124

RH High Front Housing

710001085

$19.99

125

RH High Rear Housing

710001086

$12.99

126

LH High Front Housing

710001087

$19.99

127

LH High Rear Housing

710001088

$12.99

128

RH Low Light Support

710001094

$9.09

129

RH High Light Support

710001115

$5.29

130

Setting Screw

710001147

$12.71

132

Trim Ring Ass'y

710001183

$19.99

133

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

134

DC Outlet

710001248

$37.99

135

Starter Relay

710007777

$48.49

136

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

136a

Bulb

520000758

$9.10

138

Hi/Low Switch | Except Europe

710001725

$21.49

140

4X4 Switch

710001737

$31.99

141

Switch DPS

710001781

$22.99

142

Battery Holder

710001916

$21.99

143

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

148

Switch Winch

710002052

$28.49

149

Switch, Over ride

710002053

$19.49

154

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

154a

Halogen Bulb

415129249

$41.49

155

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

155a

Halogen Bulb

415129249

$41.49

156

Engine Start Button

710002594

$60.49

160

Battery Support

710003129

$48.99

166

Fuse Holder

710003335

$10.11

167

Switch PPS Sport

710003541

$19.49

168

Cap

710003582

$11.99

169

Battery Rubber Pad

710003602

$12.99

170

Solenoids Support

710004119

$24.99

171

Solenoid Kit | XT

715007084

$202.49

174

Harness Ass'y

710005094

Unavailable

192

Positive Cable | Package STD

710004384

$35.99

194

Positive Cable

710004383

$42.99

194

Positive Cable

710004390

$36.99

195

WINCH CABLE - Call your local BRP dealership

710004392

Unavailable

196

Speedometer

710005087

$399.99

197

Multifunction Speedometer | XRS, XRS DPS

710004547

$439.99

197a

Gauge Ring

415129348

$13.99

197b

Lens | XTP

415129349

$24.49

197c

Speedometer Button | XTP

415129355

$15.80

198

Wiring Harness Assy

710005095

$1,449.99

202

WIRING HARNESS REAR - Call your local BRP dealership

710004685

$44.99

204

WINCH CABLE (-/+) - Call your local BRP dealership | Package XMR

710004876

Unavailable

205

Ignition Switch

710008400

$78.49

206

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

209

Positive Cable | Model-DPS

710004393

$35.99

209

POSITIVE CABLE - Call your local BRP dealership | Package DPS Except MAX Model

710004878

Unavailable

209

POSITIVE CABLE - Call your local BRP dealership | Package DPS MAX Model

710004920

Unavailable

210

Button

715900265

$13.71

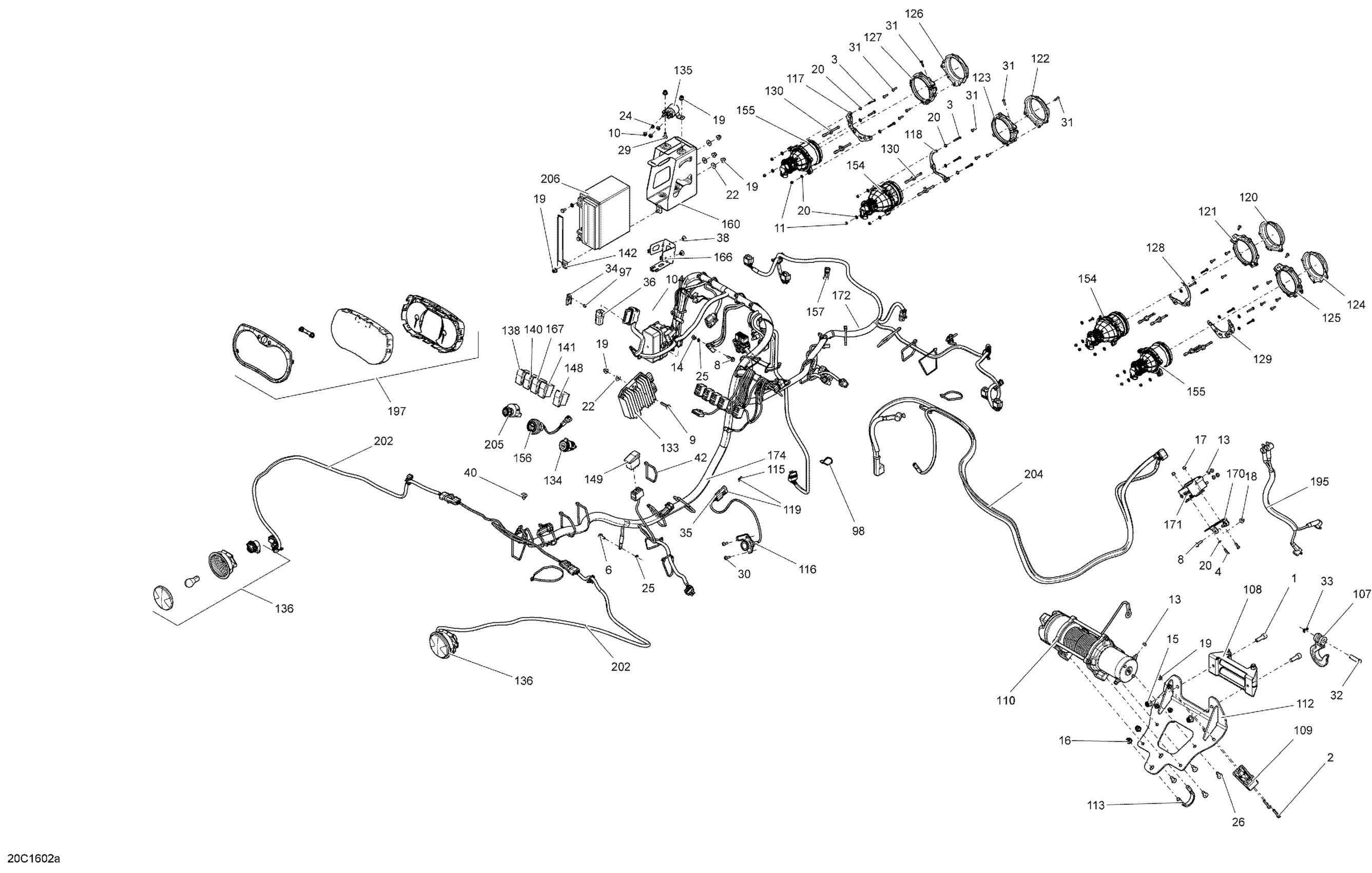

Can-Am Maverick - Maverick MAX, 2016 10- Electrical System - Except XDS-XRS Diagram
