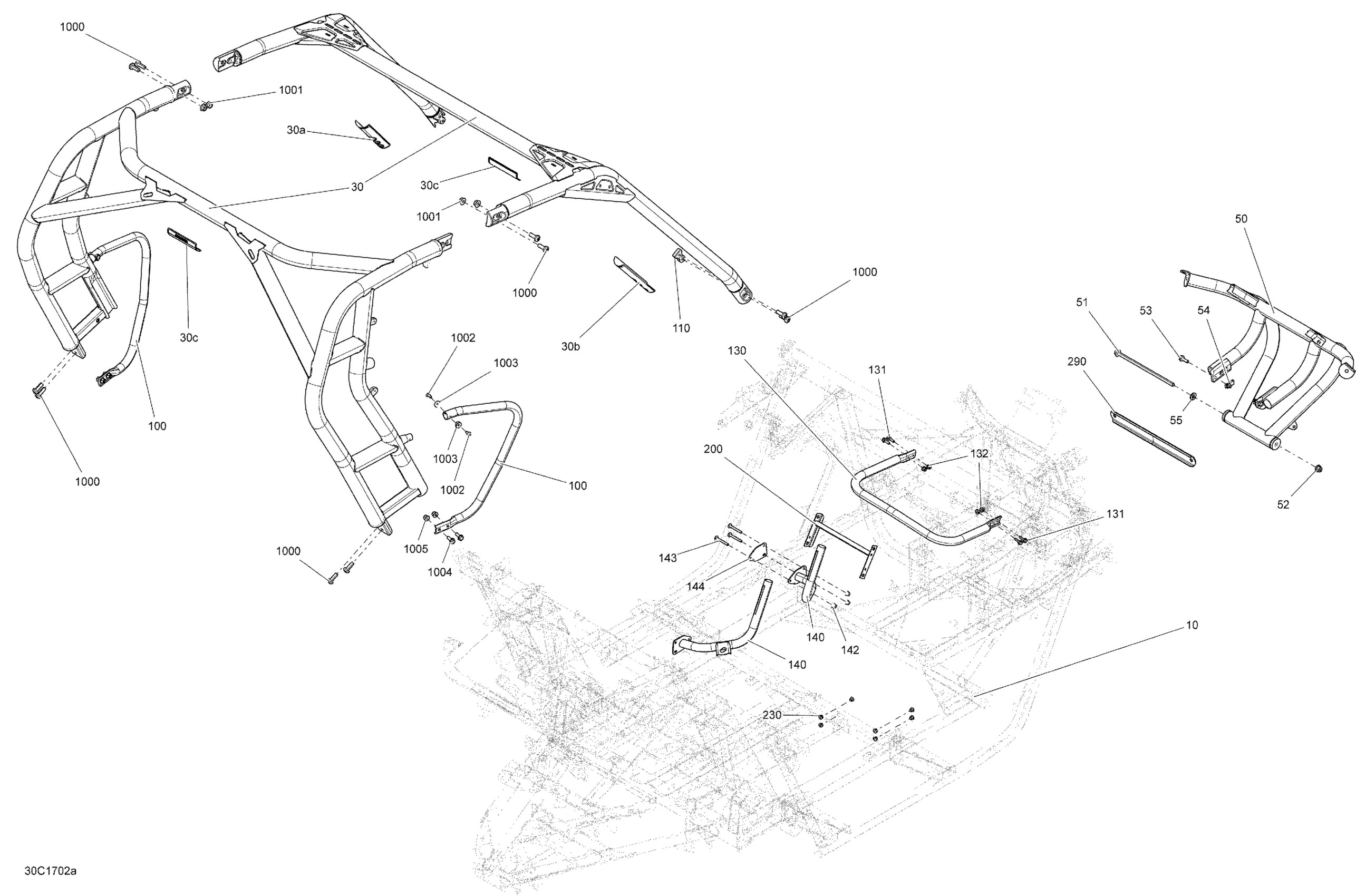

Can-Am 1-Maverick, 2017 09- Frame - All Models Diagram

#

Description
Price

10

Frame Kit

715004817

$2,319.99

10

FRAME KIT - Call your local BRP dealership

715003947

$2,319.99

30>30c

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

30>30c

Red Cage Kit

715003905

$1,039.99

30>30c

Gulfstream Blue, Cage Ass'y | Blue Cage Model

715004818

$1,039.99

30a

Warning Label

704903679

Unavailable

30b

Warning Label

704903680

Unavailable

30c

Warning Label

704903492

Unavailable

50

FRONT BUMPER BLACK - Call your local BRP dealership

715001645

Unavailable

51

Hex. Flange Screw

250000597

$12.70

52

Hex. Flange Elastic Nut M10

233201436

$2.11

53

SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership

207382544

Unavailable

54

Panel Nut M8 X 1.25

250100118

$2.09

55

Conical Spring Washer 10 mm

234201474

$1.69

100

TUBE RH B-160 PAINTED - Call your local BRP dealership | Right

705203640

$43.99

100

Red RH Front Side Protector Tube | MAVERICK with Red Cage

705204410

$46.49

100

Blue RH Side Protector Tube | Blue Cage Model

705204817

$46.49

110

Binding Block

705203415

$18.49

120

TUBE LH B-160 PAINTED - Call your local BRP dealership | Left

705203637

Unavailable

120

Red LH Front Side Protector Tube | MAVERICK with Red Cage

705204409

$46.49

120

TUBE LH B-352 PAINTED - Call your local BRP dealership | Blue Cage Model

705204816

Unavailable

130

Black Handle

705203332

$132.49

131

Hex. Flange Screw M6 X 20

207662046

$2.11

132

Elastic Flange Nut M6 X 1.0

233261416

$2.11

140

Black Console Handle | MAVERICK Turbo

705204253

Unavailable

140

Black Console Handle

705204399

$137.49

142

Elastic Flange Nut M6 X 1.0

233261416

$2.11

143

Torx Screw M6 X 50

250000317

$2.11

144

Steel Plate

705204606

$10.99

200

Reinforcement Panel

705203330

$154.99

230

Hemlock Rivet, 6.5 mm

293150096

$3.27

290

FRONT SUSPENSION LINK - Call your local BRP dealership

705203454

$22.49

1000

Screw Pan M10 X 30

250000848

$1.90

1001

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

1002

Torx Truss M6X14

250000789

$5.39

1003

Offset Washer

705202223

$4.14

1004

Hex. Flange Screw M8 X 20

207682044

$1.15

1005

Hex. Flange Elastic Nut M8

233281414

$1.47
