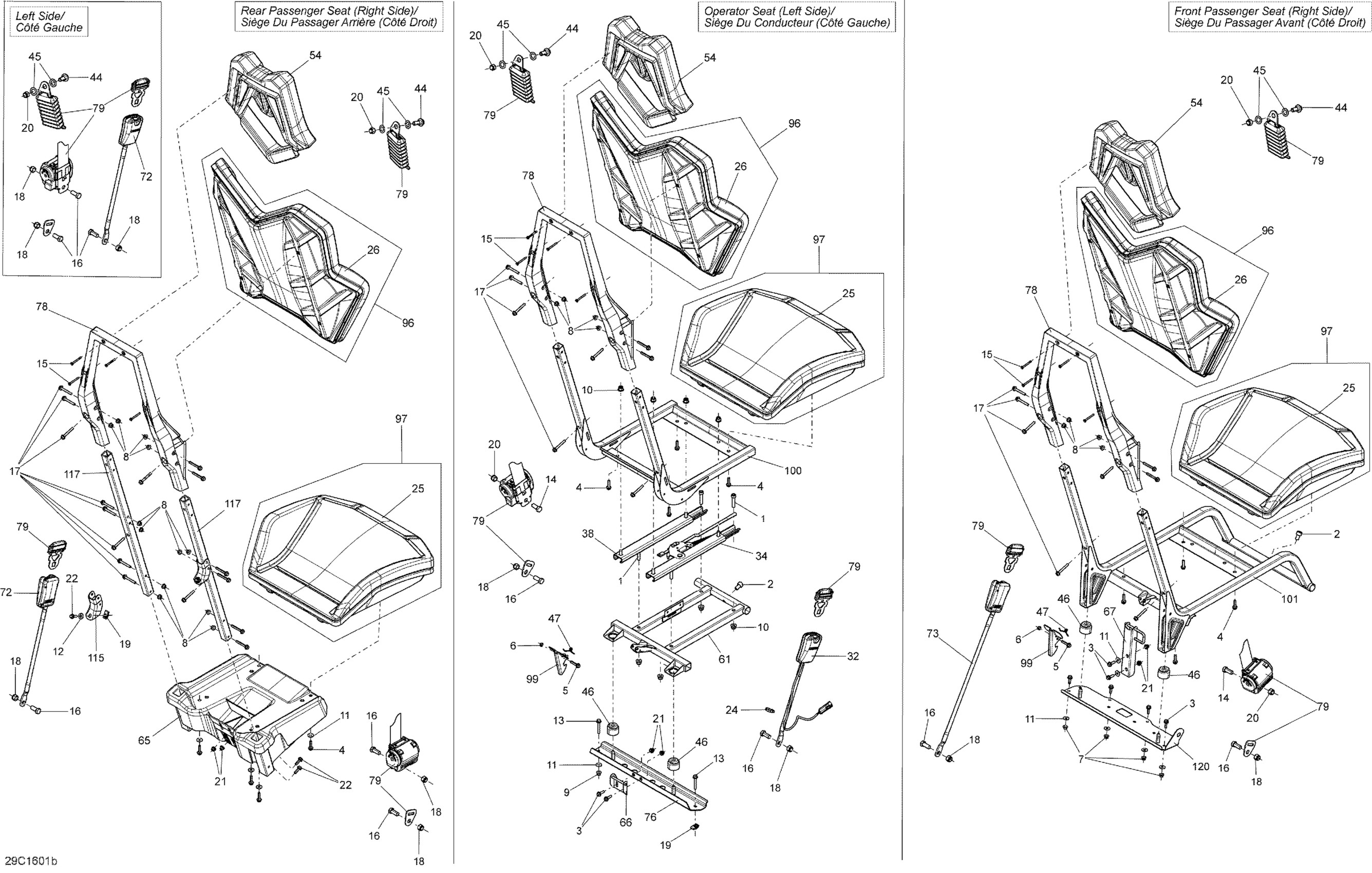

Can-Am Commander - Commander MAX, 2016 09- Seat - MAX Diagram

#

Description
Price

1

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

2

Socket Screw M10 X 16

205501644

$4.29

3

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

4

Hex. Flange Screw M6 X 25

207562544

$1.69

5

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

6

Hex. Elastic Stop Nut M6

232561600

$1.15

7

Hex. Flange Nut M6

233061414

$1.68

8

Hex. Elastic Flange Nut M6

233161464

$1.01

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Stainless Steel Flat Washer

234062670

$2.11

12

Conical Spring Washer M8

234281474

$1.48

13

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.11

14

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

15

HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership

250000490

Unavailable

16

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

17

Hex. Flange Screw M6

250000672

$2.11

18

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

19

Panel Nut M6 X 1.0

250100171

$4.09

20

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

21

Threaded Insert M6 X 1.0

250100242

Unavailable

22

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

24

Tie Wrap 368 mm

293750008

$1.04

25

Seat Cover

708001103

$117.99

25

Seat Cover

708001564

$81.49

26

Backrest Cover

708000675

$97.99

26

BACKREST COVER - Call your local BRP dealership

708001562

$114.99

32

Driver Buckle Side

708002061

$70.99

34

RH Rail

708001739

$35.99

38

LH Rail

708000848

$53.99

44

Safety Belt Screw

708000890

$3.79

45

Position Washer

708000891

$1.29

46

Rubber Bumper

708001671

$2.89

47

Spring

708000921

$1.29

54

Head Rest

708001074

$104.99

61

Seat Member

708001174

$80.99

65

Seat Support

708001198

$68.99

66

Anchor

708001212

$19.99

67

Anchor

708001213

$24.49

72

Rear Passenger Buckle Side

708002063

$67.99

73

Passenger Buckle Side

708002064

$67.99

76

Seat Support

708001214

$67.99

78

Seat Support

708001245

$28.99

79

Safety Belt | Model-North America, International

708001854

$274.99

96

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

96

BACKREST ASS'Y - Call your local BRP dealership

708001561

Unavailable

97

Cushion Ass'y | Includes 4 to 5

703500943

$349.99

97

Cushion Ass'y

708001563

$319.99

99

Seat Latch

708001355

$2.59

100

Operator Seat Frame

708001356

$329.99

101

Passenger Seat Frame

708001357

$319.99

115

Rear Anchor

708001474

$19.99

117

Side Tube

708001476

$30.99

120

Support

708001804

$49.99
