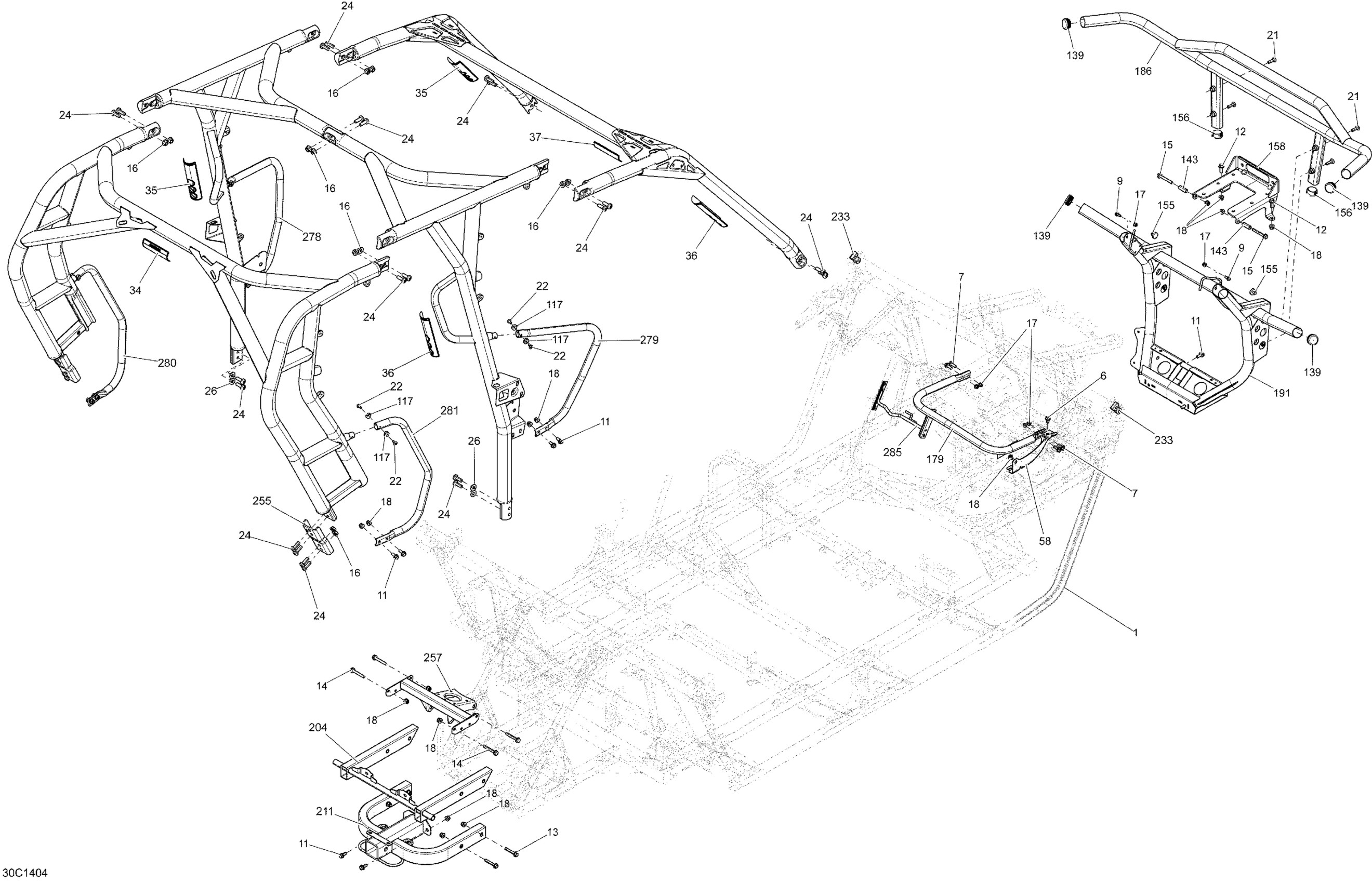

Can-Am Commander MAX 1000_DPS, XT, 2014 09- Frame _30C1404 Diagram

FRAME-BLACK - Call your local BRP dealership

703501012

Unavailable

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 25

207682534

$2.11

Hex. Flange Screw M8 X 50

207685044

$1.69

Hex. Flange Screw M8 X 55

207685544

$5.39

Hex. Flange Screw M8 x 60

207686044

$3.07

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex Torx Truss M8 X30

250000745

$3.17

Torx Truss M6X14

250000789

$5.39

Screw Pan M10 X 30

250000848

$1.90

Washer

250200154

$3.70

Threaded Insert M6 X 1.0

250100242

Unavailable

Warning Label

704903492

Unavailable

Warning Label

704903679

Unavailable

Warning Label

704903680

Unavailable

Front Differential Support

705201721

$19.49

Offset Washer

705202223

$4.14

Cap

705202455

$5.69

Bushing

705202499

$6.67

Winch Plate | XT

715000704

$122.49

Black Handle

705203332

$132.49

Black Front Bumper | XT, X

715000958

$308.49

Black Front Bumper

705202995

$404.49

BOX HOLDER - Call your local BRP dealership

705203325

Unavailable

TRAILER HITCH ASS'Y - Call your local BRP dealership | Includes 47 to 50

715001251

Unavailable

Binding Block

705203415

$18.49

Rear Hand Mounting

705203514

$20.49

Differential Holder

705203538

$38.99

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

Black LH Front Side Protector Tube

705203643

$46.49

Black RH Front Side Protector Tube

705203642

$46.49

Black LH Rear Side Protector Tube

705203649

$46.49

Black RH Rear Side Protector Tube

705203652

$46.49

Reinforcement Panel

705203717

$154.99

Black Central Cage Kit

715003902

$779.99
