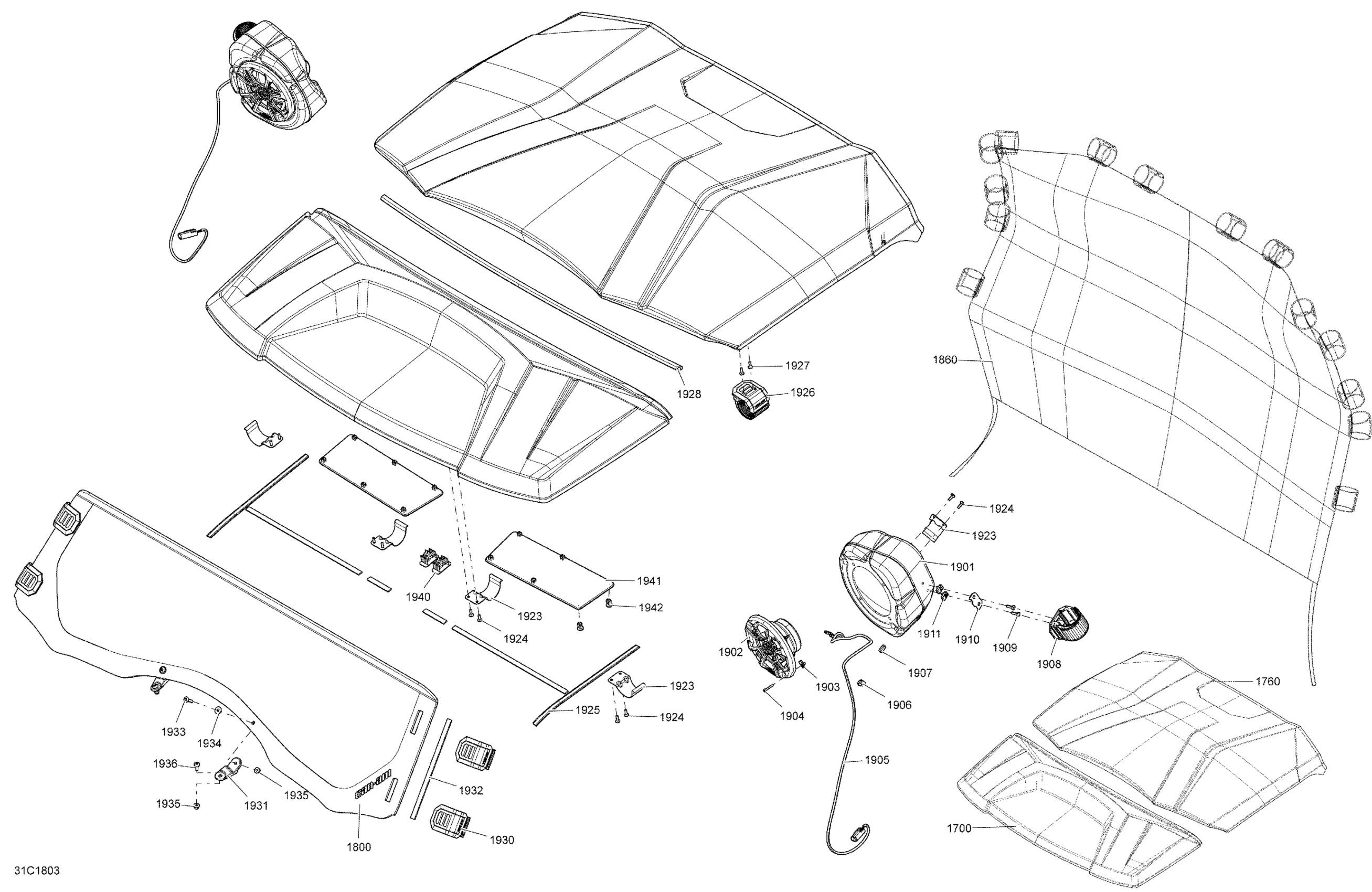

Can-Am 2- Commander 1000R EFI, 2018 09- Body And Accessories Commander Non MAX - Package LTD Diagram

Description

Price

1700>1700f

Roof Visor Ass'y

715001952

$425.49

1700a

U Brace Strip | LTD

705009030

$18.49

1700b

Torx Screw K50 X 16

250000720

$1.69

1700c

Gasket, Neoprene 2000Mm Long

219704476

$15.36

1700d

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

1700e

VISOR POCKET - Call your local BRP dealership | LTD

280000496

Unavailable

1700f

Tuflok Plastic Rivet

293150230

$1.47

1760>1760c

Mid Roof Kit

715001949

$639.99

1760a

Torx Screw K50 X 16

250000720

$1.69

1760b

Seal Tray 1000Mm Long

219704368

$13.99

1760c

Gasket, Neoprene 2000Mm Long

219704476

$15.36

1800

Windshield Half Ass'y

703501024

$399.99

1860

Wind Deflector

715003078

$137.99

1901

LH Speaker Box Ass'y

710002837

$148.49

1901

RH Speaker Box Ass'y

710002839

$148.49

1902

Speaker

710002838

$169.49

1903

Extruded Panel Nut M4 X 0.7

250100143

$8.49

1904

Torx Pan Screw M4 X 20

250000622

$1.90

1905

Speaker Harness

710004341

$104.99

1906

Clip

414227300

$1.67

1907

Grommet

414036300

$2.79

1908

Retainer Velcro Perforated

705013420

$43.99

1909

Torx Screw M5 X 20

250000724

$1.69

1910

M5 Support Plate

710002946

$7.99

1911

Panel Nut M5 X 0.8

250000958

$4.23

1923

U Brace Strip | LTD

705009030

$18.49

1924

Torx Screw K50 X 16

250000720

$1.69

1925

Gasket, Neoprene 2000Mm Long

219704476

$15.36

1926

Retainer Velcro Perforated

705013420

$43.99

1927

Torx Screw K50 X 16

250000720

$1.69

1928

Seal Tray 1000Mm Long

219704368

$13.99

1930

Retainer Velcro Perforated

705013420

$43.99

1931

Windshield Support | LTD

705005776

$13.49

1932

Gasket, Neoprene 2000Mm Long

219704476

$15.36

1933

Torx Screw M6 X 25

250000758

$2.11

1934

Stainless Steel Flat Washer

234062670

$2.11

1935

Hex. Flange Elastic Nut M6

233261494

$1.58

1936

Torx Truss Screw M6 X 20

250000488

$2.11

1940

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

1941

VISOR POCKET - Call your local BRP dealership | LTD

280000496

Unavailable

1942

Tuflok Plastic Rivet

293150230

$1.47
