Description

Price

300

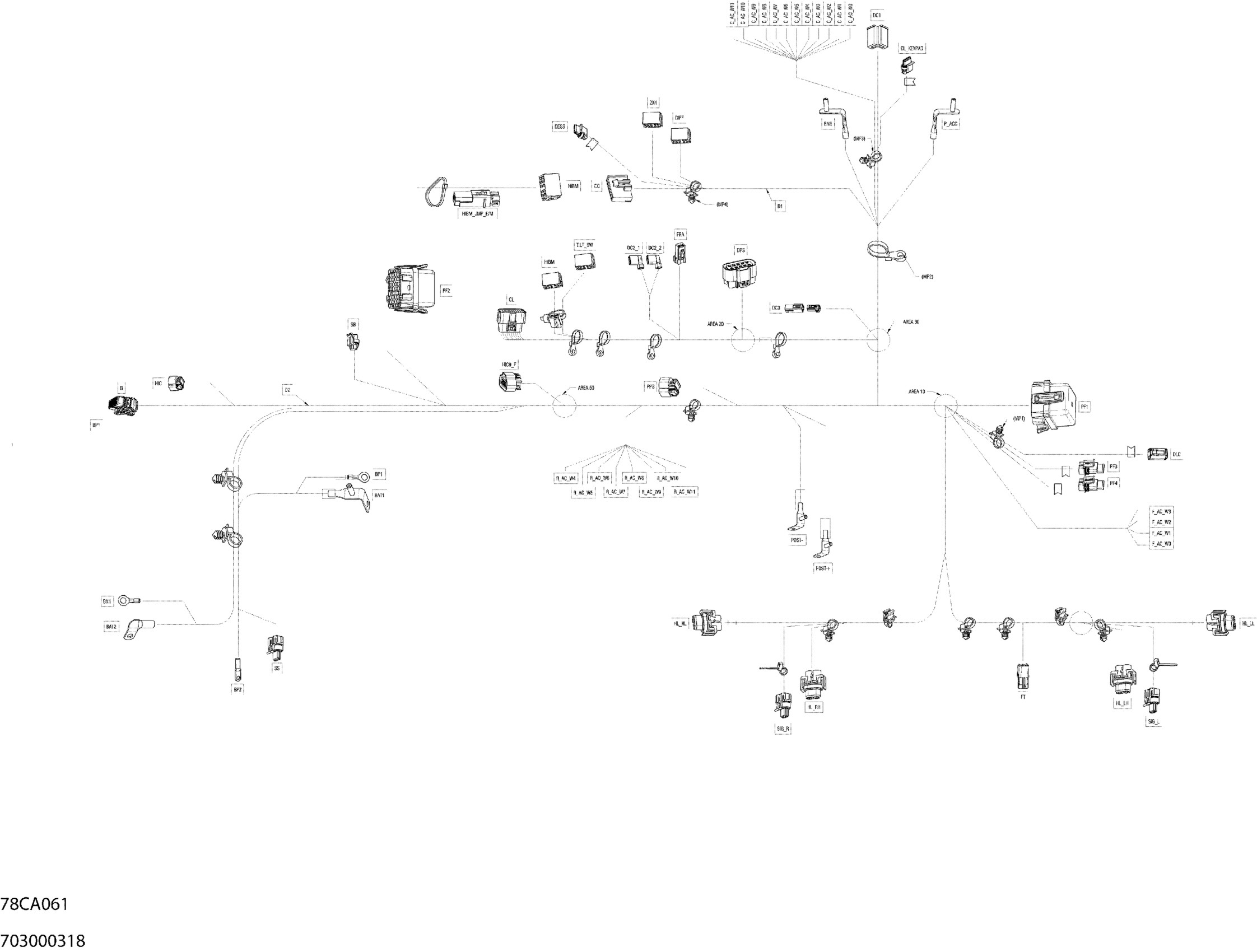

Main Wiring Harness

710007367

$929.99

2X4

Housing

710002000

$7.90

2X4

Terminal

710003047

$3.49

2X4

Female Terminal

710005491

$2.09

B

Cover, 48 positions

710001591

$12.18

B

Female Terminal Housing, 48 Circuits

710001588

$48.49

B

Plug

710001592

$2.21

B

Plug

710001593

$2.21

B

Female Terminal

710001727

$3.19

B

Terminal

710001728

$6.79

B

Female Terminal

710001589

$2.21

BN1

Terminal

710000913

$5.61

BN3

Open Barell

710006801

$9.95

BP1

Shrink Tubing, 6 mm

515177246

$1.04

BP1

Open Barrel

278000992

$2.21

BP2

Cap Battery Cable

710007033

$6.24

C_AC_W0

Insulated Sheath

278001008

$3.28

C_AC_W0

Male Terminal

278000230

$4.39

C_AC_W1

Insulated Sheath

278001008

$3.28

C_AC_W1

Male Terminal

278000230

$4.39

C_AC_W11

Insulated Sheath

278001008

$3.28

C_AC_W11

Male Terminal

278000230

$4.39

C_AC_W2

Insulated Sheath

278001008

$3.28

C_AC_W2

Male Terminal

278000230

$4.39

C_AC_W3

Insulated Sheath

278001008

$3.28

C_AC_W3

Male Terminal

278000230

$4.39

C_AC_W4

Insulated Sheath

278001008

$3.28

C_AC_W4

Male Terminal

278000230

$4.39

C_AC_W5

Insulated Sheath

278001008

$3.28

C_AC_W5

Male Terminal

278000230

$4.39

C_AC_W6

Insulated Sheath

278001008

$3.28

C_AC_W6

Male Terminal

278000230

$4.39

C_AC_W7

Insulated Sheath

278001008

$3.28

C_AC_W7

Male Terminal

278000230

$4.39

C_AC_W8

Insulated Sheath

278001008

$3.28

C_AC_W8

Male Terminal

278000230

$4.39

C_AC_W9

Insulated Sheath

278001008

$3.28

C_AC_W9

Male Terminal

278000230

$4.39

C_AC-W10

Insulated Sheath

278001008

$3.28

C_AC-W10

Male Terminal

278000230

$4.39

CC

Male Housing, 6 Circuits

710000849

$9.69

CC

Lock

710000848

$3.19

CC

Female Terminal

710000274

$9.59

CC16

Female Terminal Housing 16 Circuits

710006686

$17.59

CC16

Terminal

710006688

$4.55

CC20

Female Terminal Housing 20 Circuits

710006687

$17.04

CC20

Terminal

710006688

$4.55

CL

Female Housing 20 Circuits

278002858

$22.49

CL

Sealing Cap

278002860

$1.79

CL

Female Terminal

515178018

$1.19

CL

Female Terminal 22 AWG

515178349

$2.29

CL_KEYPAD

Housing

710001161

$11.12

CL_KEYPAD

Lock

710001162

$3.19

CL_KEYPAD

Wire Seal

710001163

$7.69

CL_KEYPAD

Female Terminal

710001164

$8.89

D1

Diode

409012700

$11.12

D2

Diode

409012700

$11.12

DC1

Housing

710005373

$5.29

DC1

Terminal

710005518

$1.49

DC2_1

Female Terminal

409010300

$4.39

DC2_2

Female Terminal

409010300

$4.39

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Female Terminal

515175231

$4.39

DC3_CAP

Male Housing, 2 Circuits

710000667

$8.32

DESS

Housing

710001161

$11.12

DESS

Lock

710001162

$3.19

DESS

Cap

710001225

$9.19

DESS

Wire Seal

710001163

$7.69

DESS

Female Terminal

710001164

$8.89

DIFF

Housing

710002000

$7.90

DIFF

Female Terminal

710005491

$2.09

DIFF

Terminal

710003047

$3.49

DLC

Female Housing 6 Circuits

710002706

$20.49

DLC

Lock

710002705

$4.44

DLC

Plug

710005437

$3.17

DLC

Female Terminal

710005438

$4.29

DLC

Female Terminal

710005439

$4.44

DPS

Female Housing

710004989

$7.41

DPS

Lock | PACKARD 15430900

710005098

$2.09

DPS

Lock

710001222

$2.09

DPS

Plug

710002075

$3.09

DPS

Wire Seal

278002186

$5.50

DPS

Seal

710003153

$0.99

DPS

Female Terminal

278002187

$6.39

DPS

Terminal

710001873

$2.09

F_AC_W0

Insulated Sheath

278001007

$3.58

F_AC_W0

Female Terminal | DS 650 X

278001009

$3.19

F_AC_W1

Insulated Sheath

278001007

$3.58

F_AC_W1

Female Terminal | DS 650 X

278001009

$3.19

F_AC_W2

Insulated Sheath

278001007

$3.58

F_AC_W2

Female Terminal | DS 650 X

278001009

$3.19

F_AC_W3

Insulated Sheath

278001007

$3.58

F_AC_W3

Female Terminal | DS 650 X

278001009

$3.19

FRA

Female Housing, 2 Circuits

515175658

$16.18

FRA

Female Terminal

710003896

$2.19

FT

Clip

710000992

$4.29

FT

Female Housing, 2 Circuits

278000217

$9.59

FT

Wire Seal

278000218

$4.39

FT

Male Terminal

409004300

$5.61

HIBM

Housing Connector

710002001

$13.71

HIBM

Terminal

710003047

$3.49

HIBM

Female Terminal

710005491

$2.09

HIBM

Terminal

710003048

$4.39

HIBM_JMP_F

Female Housing, 2 Circuits

515175658

$16.18

HIBM_JMP_F

Female Terminal

515175231

$4.39

HIBM_JMP_M

Male Terminal Housing, 2 Circuits

515175654

$9.12

HIBM_JMP_M

Male Terminal

515175232

$1.58

HIC

Female Housing, 12 Circuits

710001930

$15.80

HIC

Lock

710001222

$2.09

HIC

Lock

710006333

$6.79

HIC

Cap

710001225

$9.19

HIC

Seal

710001233

$3.19

HIC

Seal Wire

710001332

$3.28

HIC

Terminal

710001229

$3.19

HIC

Terminal

710001228

$3.28

HIC9_F

Female Housing, 12 Circuits

710001930

$15.80

HIC9_F

Lock

710001222

$2.09

HIC9_F

Lock

710006333

$6.79

HIC9_F

Seal

710001233

$3.19

HIC9_F

Seal Wire

710001332

$3.28

HIC9_F

Terminal

710001229

$3.19

HIC9_F

Terminal

710001228

$3.28

HL_LH

Housing

710002578

$3.19

HL_LH

Lock

710002584

$4.39

HL_LH

Wire Seal

710001427

$2.09

HL_LH

Female Terminal

278002578

$1.04

HL_LL

Housing

710002578

$3.19

HL_LL

Lock

710002584

$4.39

HL_LL

Wire Seal

710001427

$2.09

HL_LL

Female Terminal

278002578

$1.04

HL_RH

Housing

710002578

$3.19

HL_RH

Lock

710002584

$4.39

HL_RH

Wire Seal

710001427

$2.09

HL_RH

Female Terminal

278002578

$1.04

HL_RL

Housing

710002578

$3.19

HL_RL

Lock

710002584

$4.39

HL_RL

Wire Seal

710001427

$2.09

HL_RL

Female Terminal

278002578

$1.04

HVAC_F

Female Terminal Housing, 3 Circ.

710000153

$9.95

HVAC_F

Wire Seal

710000402

$4.55

HVAC_F

Female Terminal

409012100

$4.55

HVAC_FAN_F

Female Terminal Housing, 4 Circuits

278001473

$26.99

HVAC_FAN_F

Female Lock, 4 Circuits

278001474

$3.49

HVAC_FAN_F

Female Terminal

515175567

$7.69

HVAC_SENSOR

Housing

710001226

$13.49

HVAC_SENSOR

Cap

710001225

$9.19

HVAC_SENSOR

Seal

710001233

$3.19

HVAC_SENSOR

Terminal

710001229

$3.19

PF1

Fuse Cover

278003553

$3.72

PF1

Fuse Base Ass'y

278003448

$31.99

PF1

Wire Seal

278000216

$3.19

PF1

Seal

293300198

$2.39

PF1

Wire Seal

278000218

$4.39

PF1

Wire Seal

278001065

$7.69

PF1

Wire Seal

710000048

$7.69

PF1

Female Terminal

710000918

$7.69

PF1

Female Terminal

278002578

$1.04

PF1

Female Terminal

515177177

$6.49

PF1_LABEL_TILT

Fuse Box Decal

710007486

Unavailable

PF1-F10

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F11

Little Fuse, 20 Amperes

710000746

$8.49

PF1-F12

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F14

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F16

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F18

Little Fuse, 20 Amperes

710000746

$8.49

PF1-R3

Relay, 30 AMP

515176774

$21.99

PF1-R8

Relay

715900824

$21.99

PF1-R9

Relay, 50 AMP

515176775

$15.79

PF1-SPARE

Little Fuse, 20 Amperes

710000746

$8.49

PF2

Fuse Cover

278003553

$3.72

PF2

Fuse Base Ass'y

278003448

$31.99

PF2

Wire Seal

278000216

$3.19

PF2

Seal

293300198

$2.39

PF2

Wire Seal

278000218

$4.39

PF2

Wire Seal

278001065

$7.69

PF2

Female Terminal

710000918

$7.69

PF2

Female Terminal

278002578

$1.04

PF2

Female Terminal

710000890

$4.55

PF2_HVAC_LABEL

Relay Decal

710007128

$14.49

PF2_SP1

Little Fuse, 10 Amperes

710000744

$8.79

PF2_SP2

Little Fuse, 10 Amperes

710000744

$8.79

PF2_SP3

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F18

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F4

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F5

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F6

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F7

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F8

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F9

Fuse, 25 Amps

710002590

$19.49

PF2-R1

Relay, 30 AMP

515176774

$21.99

PF2-R10

Relay

715900824

$21.99

PF2-R2

Relay

715900824

$21.99

PF3

Fuse Holder

278001325

$8.79

PF3

Female Terminal

710000113

$6.99

PF3-F2

Fuse

710001613

$8.79

PF4

Fuse Holder

278001325

$8.79

PF4

Female Terminal

710000113

$6.99

PF4-F21

Fuse

710001613

$8.79

PF5

Fuse Box Cover

278002286

$27.49

PF5

Fuse Box Decal

710006791

$14.49

PF5

Fuse Box Ass'y

278002285

$28.49

PF5

Wire Seal

278000216

$3.19

PF5

Wire Seal

710001427

$2.09

PF5

Wire Seal

278000218

$4.39

PF5

Female Terminal

710000890

$4.55

PF5

Female Terminal

278002578

$1.04

PF5-F1

Little Fuse, 20 Amperes

710000746

$8.49

PF5-F3

Little Fuse, 5 Amperes

710000742

$8.79

PF5-HS

Relay

715900824

$21.99

PF5-LS

Relay

715900824

$21.99

PF5-MS

Relay

715900824

$21.99

PPS

Housing

515177151

$5.66

PPS

Lock 6 Positions

710005296

$1.09

PPS

Seal

710001233

$3.19

PPS

Terminal

710001229

$3.19

R_AC_W10

Insulated Sheath

278001007

$3.58

R_AC_W10

Female Terminal | DS 650 X

278001009

$3.19

R_AC_W11

Insulated Sheath

278001007

$3.58

R_AC_W11

Female Terminal | DS 650 X

278001009

$3.19

R_AC_W4

Insulated Sheath

278001007

$3.58

R_AC_W4

Female Terminal | DS 650 X

278001009

$3.19

R_AC_W5

Insulated Sheath

278001007

$3.58

R_AC_W5

Female Terminal | DS 650 X

278001009

$3.19

R_AC_W6

Insulated Sheath

278001007

$3.58

R_AC_W6

Female Terminal | DS 650 X

278001009

$3.19

R_AC_W7

Insulated Sheath

278001007

$3.58

R_AC_W7

Female Terminal | DS 650 X

278001009

$3.19

R_AC_W8

Insulated Sheath

278001007

$3.58

R_AC_W8

Female Terminal | DS 650 X

278001009

$3.19

R_AC_W9

Insulated Sheath

278001007

$3.58

R_AC_W9

Female Terminal | DS 650 X

278001009

$3.19

RS_485

Female Terminal Housing, 4 Circuits

515175845

$8.49

RS_485

Female Terminal

710003896

$2.19

SB

Housing

710002177

$3.19

SB

Lock

710002043

$0.90

SB

Seal

278001482

$3.19

SB

Female Terminal

710001134

$7.69

SIG_L

Female Housing, 2 Circuits

515177192

$9.12

SIG_L

Lock

710001152

$4.39

SIG_L

Wire Seal

710001163

$7.69

SIG_L

Female Terminal

710001164

$8.89

SIG_R

Female Housing, 2 Circuits

515177192

$9.12

SIG_R

Lock

710001152

$4.39

SIG_R

Wire Seal

710001163

$7.69

SIG_R

Female Terminal

710001164

$8.89

SS

Female Housing, 2 Circuits

515177192

$9.12

SS

Lock

710001152

$4.39

SS

Seal Wire

710001153

$2.21

SS

Female Terminal

710001164

$8.89

TILT_SW

Housing

710002000

$7.90

TILT_SW

Female Terminal

710005491

$2.09

TILT_SW

Terminal

710003048

$4.39

Can-Am 013 - Defender PRO HD10 - LTD CAB - North America, 2021 08- Electric - Main Harness - 710007367 Diagram

Main Wiring Harness

Housing

Terminal

Female Terminal

Cover, 48 positions

Female Terminal Housing, 48 Circuits

Plug

Plug

Female Terminal

Terminal

Female Terminal

Terminal

Open Barell

Shrink Tubing, 6 mm

Open Barrel

Cap Battery Cable

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Insulated Sheath

Male Terminal

Male Housing, 6 Circuits

Lock

Female Terminal

Female Terminal Housing 16 Circuits

Terminal

Female Terminal Housing 20 Circuits

Terminal

Female Housing 20 Circuits

Sealing Cap

Female Terminal

Female Terminal 22 AWG

Housing

Lock

Wire Seal

Female Terminal

Diode

Diode

Housing

Terminal

Female Terminal

Female Terminal

Female Housing, 2 Circuits

Female Terminal

Male Housing, 2 Circuits

Housing

Lock

Cap

Wire Seal

Female Terminal

Housing

Female Terminal

Terminal

Female Housing 6 Circuits

Lock

Plug

Female Terminal

Female Terminal

Female Housing

Lock | PACKARD 15430900
