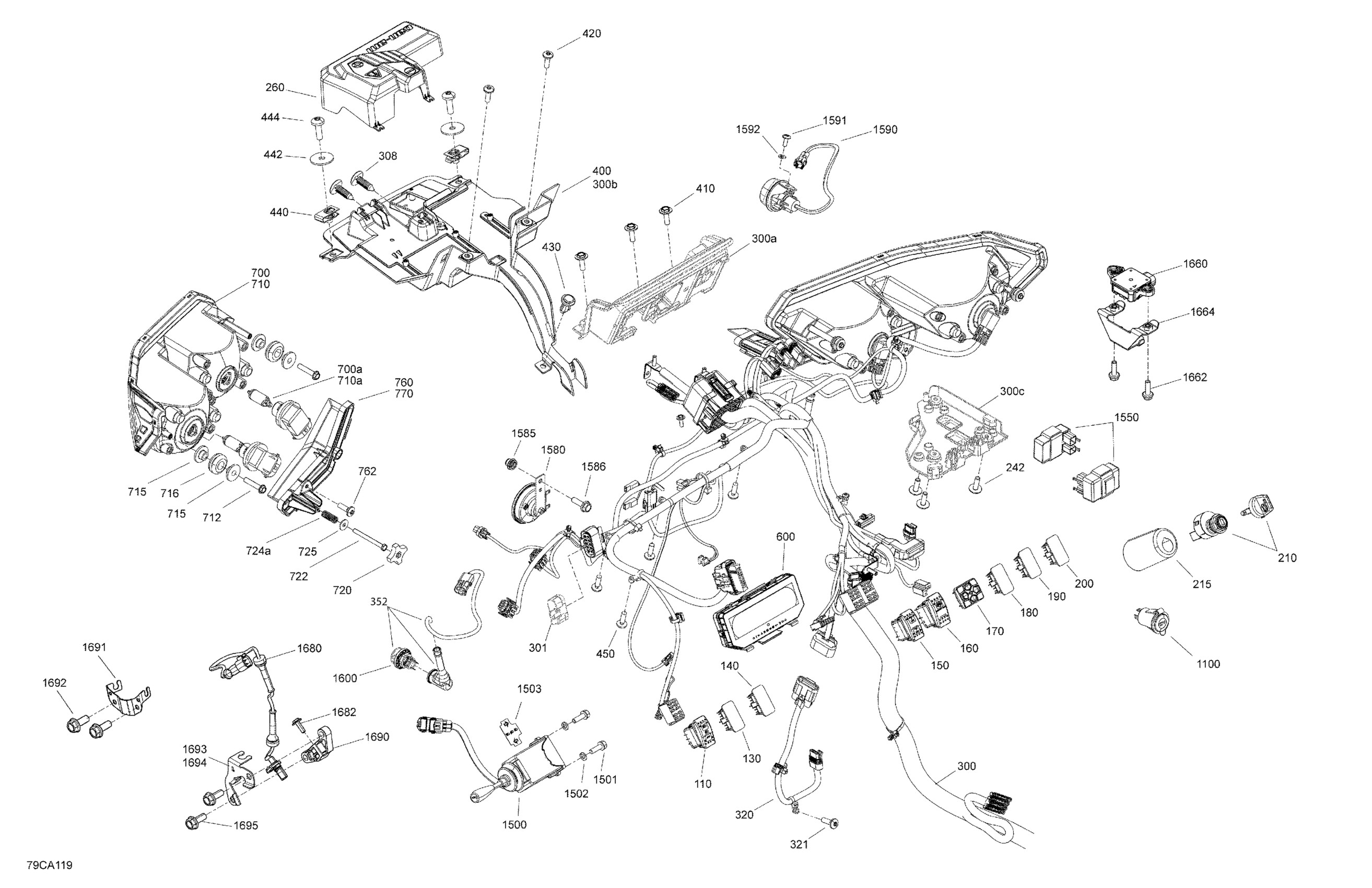

Can-Am 003 - Traxter T HD10 - XU - T Regulation, 2021 08- Electric - Front System - BASE-XU Diagram

Hazard Lights Switch

710006107

$19.49

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Switch 2X4

710005489

$31.99

Differential Lock Switch

710005470

$46.49

Multifonction Switch

710006650

$87.99

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Switch HDC

710006553

$24.99

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Inter Allumage *Ignition

710007870

$55.99

Key Switch Protector

710005739

$2.69

Screw PT Type K-50 X 16

250000959

$2.11

Junction Block Cover

710006707

$6.35

Main Wiring Harness | Includes 300 to 300c

710006753

$929.99

Fusebox Support

710006640

$8.81

Connector Support

710006706

$6.49

Connector Support

710006706

$6.49

DPS Connector Cap | Not Shown

710005760

$16.86

Black, Dart

293730006

$0.99

Throttle Pedal Harness

710006837

$239.99

Torx Screw K50 X 16

250000720

$1.69

Position Light Harness

710005676

$15.49

Wiring Harness Support

710006649

$24.49

Screw PT Type K-50 X 16

250000959

$2.11

Torx Screw K50 X 16

250000720

$1.69

Tuflok Plastic Rivet

293150230

$1.47

Panel Nut M6 X 1.0

250100198

$2.11

Washer M6

250200029

$2.50

Torx Screw M6 X 20

250000712

$2.11

Torx Screw K50 X 16

250000720

$1.69

Multifunction Gauge MID | Model XTP

710007409

$369.99

LH Headlamp | Includes 700 to 700a

710008313

$214.99

Halogen Bulb H8 12V 35W

219800149

$41.49

RH Beam Ass'y

710005730

$229.99

Halogen Bulb H8 12V 35W

219800149

$41.49

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

Shoulder Bushing

710004749

$2.69

Grommet

709000582

$4.69

Handle

572106600

$10.33

Hex. Screw K40 X 45

250000718

$2.11

Spring

517168600

$7.39

Flat Washer 4 mm, Stainless

234042600

$1.15

Deep Black, LH Front Headlight Trim

705013593

$20.99

Screw PT Type K-50 X 16

250000959

$2.11

Deep Black, RH Front Headlight Trim

705013595

$20.99

12V Power Outlet

710005374

$33.99

Turn Signal | Europe

710001721

$209.99

Hex. Forming Screw M5 X 16

210251650

$1.15

Lock Washer 5 mm | Europe

234151401

$0.55

Flasher Decal | Europe

704902614

$19.99

Flasher Unit

710003239

$78.49

Horn

710004791

$38.99

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Hex. Flange Screw M6 X 20

207662054

$1.01

Flasher | Europe

710002964

$35.99

Torx Truss Screw M6 X 16

250000721

$1.69

Flat Washer 6 mm

234061410

$1.36

Day Light | Europe

710001726

$35.99

Yaw Rate Sensor

710005658

$179.99

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Yaw Sensor Support

710006501

$34.99

Speed Sensor

710006981

$83.99

Screw PT Type K-50 X 16

250000959

$2.11

Sensor Support

705402088

$2.54

ABS Harness Support

710006452

$19.99

Hex Screw Washer Head M8 X 20

207582054

$3.17

RH ABS Harness Support

710006554

$19.99

LH ABS Harness Support

710006555

$19.99

Hex Screw Washer Head M8 X 20

207582054

$3.17
