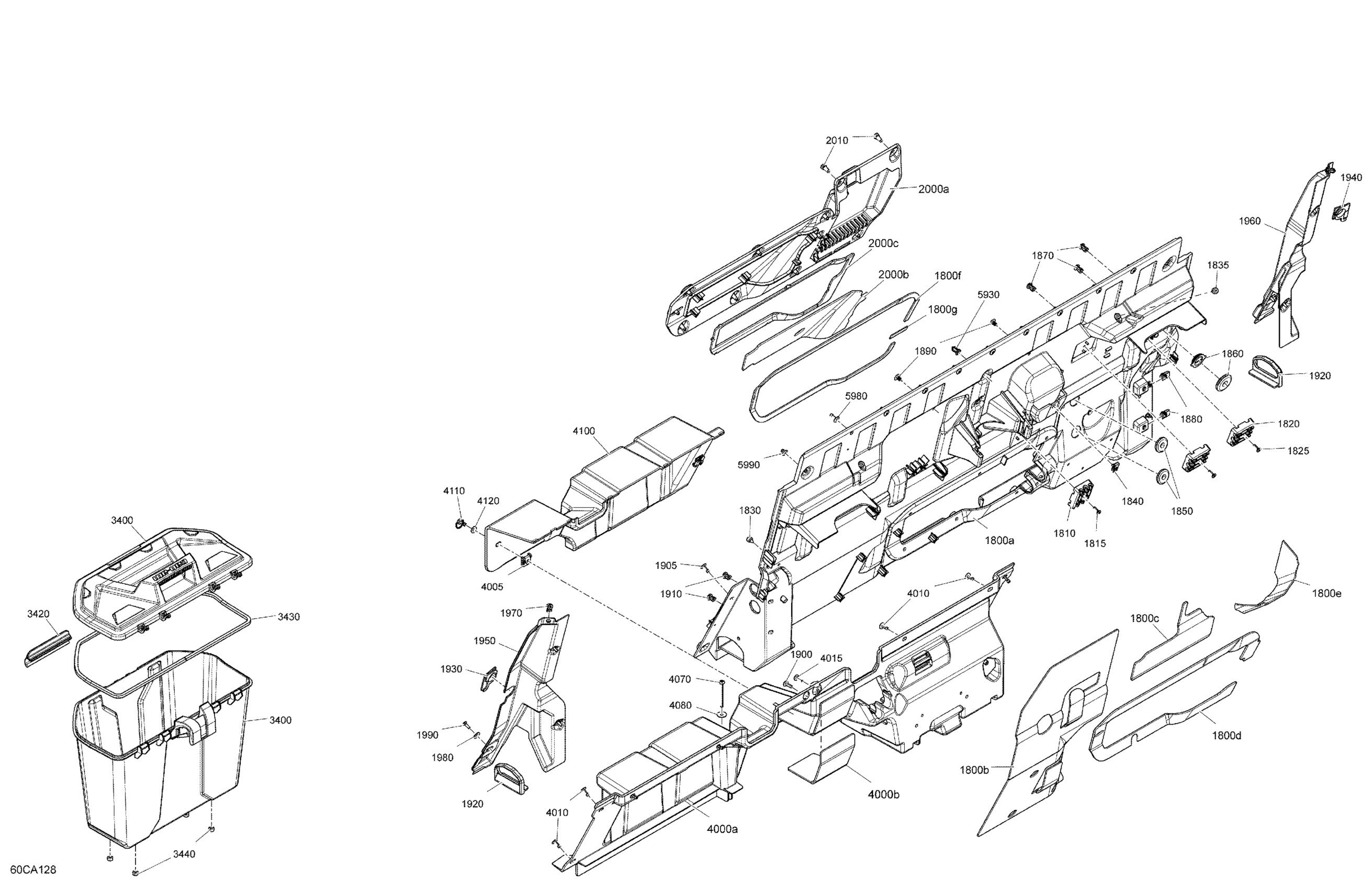

Can-Am 006 - Defender HD10 - LTD CAB - North America, 2021 07- Cab Interior - Back Wall - Limited Diagram

Description

Price

1800a

Rear Upper Cab Panel

707900715

$429.99

1800b

Heat Shield

707900825

$74.99

1800c

Heat Shield

707900829

$27.99

1800d

Heat Shield

707900926

$45.99

1800e

Heat Shield

707900835

$12.99

1800f

Gasket, Neoprene 2000Mm Long

219704476

$15.36

1800g

Gasket, Neoprene 2000Mm Long

219704476

$15.36

1810

Hose Support

707900788

$0.92

1815

Torx Screw K50 X 16

250000720

$1.69

1820

Hose Support

707900788

$0.92

1825

Torx Screw K50 X 16

250000720

$1.69

1830

Rubber Bumper

293830005

$8.09

1835

Rubber Bumper

293830005

$8.09

1840

Panel Nut M6 X 1.0

250100198

$2.11

1850

Grommet

293720119

$4.19

1860

Plug

293000125

$1.15

1860

Grommet

293720119

$4.19

1870

Tuflok Plastic Rivet

293150230

$1.47

1880

Panel Nut M6 X 1.0

250100198

$2.11

1890

Black, Dart

414644300

$0.98

1900

Torx Screw M6 X 20

250000722

$1.68

1905

Pop Rivet 3/16"

293150100

$1.09

1910

Tuflok Plastic Rivet

293150230

$1.47

1920

Panel Trim

707900774

$4.29

1930

LH Panel Trim

707900775

$1.59

1940

RH Panel Trim

707900776

$1.59

1950

LH Upper Deflector

707900766

$17.49

1960

RH Upper Deflector

707900767

$17.49

1970

Tuflok Plastic Rivet

293150230

$1.47

1980

Stainless Steel Flat Washer

234062670

$2.11

1990

Torx Screw K50 X 16

250000720

$1.69

2000a

Rear Access Cover

707900742

$83.99

2000b

Heat Shield

707900928

$27.99

2000c

Heat Shield

707900927

$45.99

2010

Torx Screw M6 X 20

250000712

$2.11

3400

Storage Box

715003314

$106.49

3420

Clip | Outlander Max

269501945

$15.89

3430

Neoprene Seal

293250453

$19.49

3440

Rubber Bumper

293830005

$8.09

4000a

Rear Lower Cab Panel

707901074

$219.99

4000b

Heat Shield

707900843

$36.99

4005

Quarter Turn Nut

705002651

$4.76

4010

Pop Rivet 3/16"

293150100

$1.09

4015

Torx Screw M6 X 20

250000722

$1.68

4070

Torx Screw M6 X 70

250000954

$1.90

4080

Flat Washer M6.6 X 22

250200162

$2.32

4100

Battery Cover

707900743

$90.99

4110

Quarter Turn Screw

705002649

$15.87

4120

Washer

708400286

$3.99

5930

Tuflok Plastic Rivet

293150230

$1.47

5980

Pop Rivet 3/16"

293150100

$1.09

5990

Pop Rivet 3/16"

293150103

$0.55
