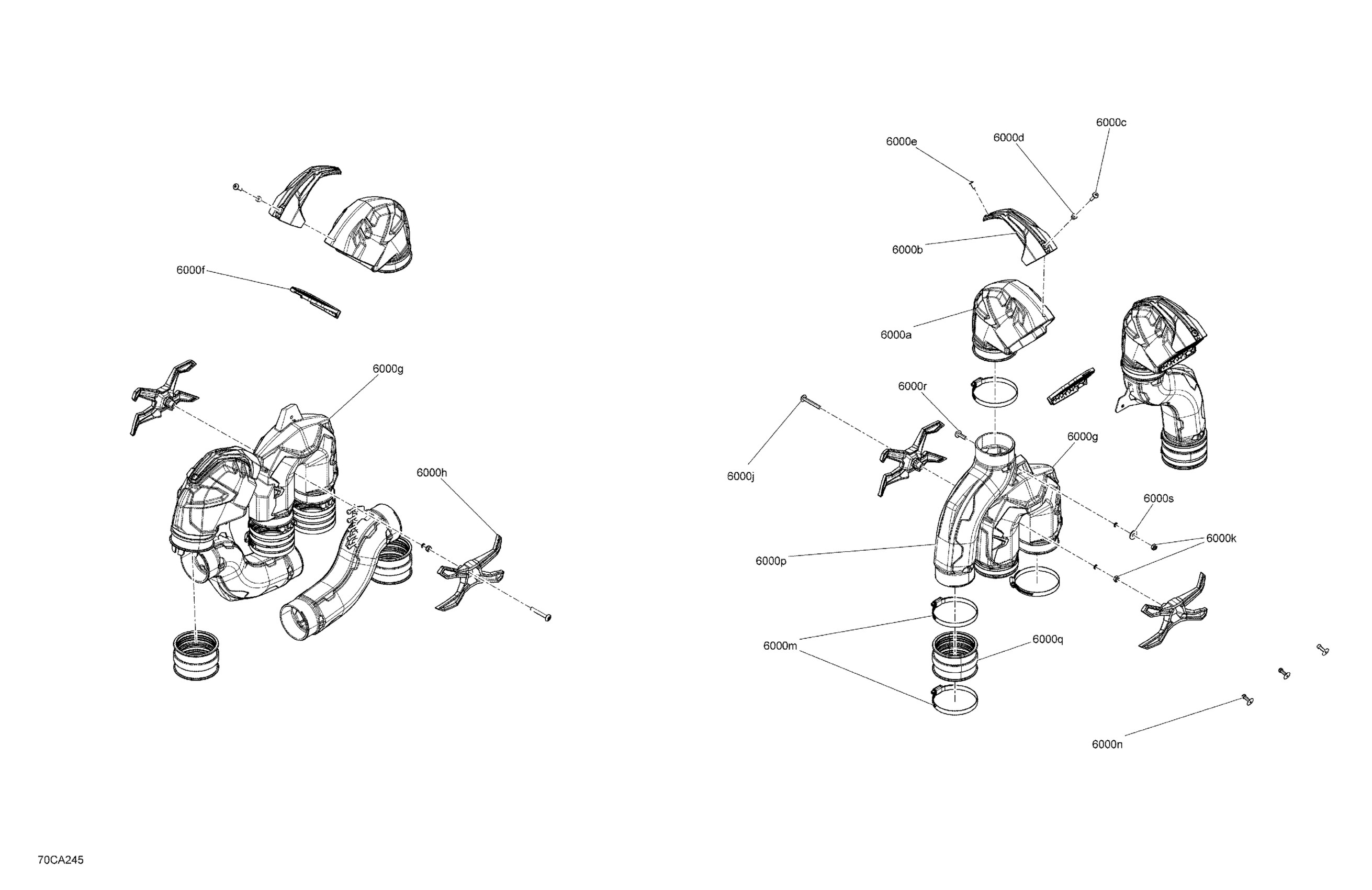

Can-Am 011 - Defender MAX HD10 - XMR - North America, 2021 07- Body - System - XMR Diagram

Description

Price

6000a

Air Inlet

706600236

$54.99

6000b

Black, Cap

707001523

$5.93

6000c

Torx Screw M5 X 20

250000792

$2.11

6000d

Elastic Flange Nut M5

233251494

$2.11

6000e

Torx Truss Screw K40 X 12

250000577

$2.11

6000f

Grate

706600221

$22.49

6000g

CVT Outlet

706600205

$43.99

6000h

Trim

705012555

$13.49

6000j

Torx Screw M6 X 45

250000647

$6.82

6000k

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.58

6000m

Clamp

293650272

$20.99

6000n

Pop Rivet 3/16”

293150101

$2.09

6000p

Intake Tube

706600277

$67.99

6000q

Flexible Joint

706600278

$28.99

6000r

Torx Screw M6 X 20

250000712

$2.11

6000s

Flat washer M6

250200164

$1.01
