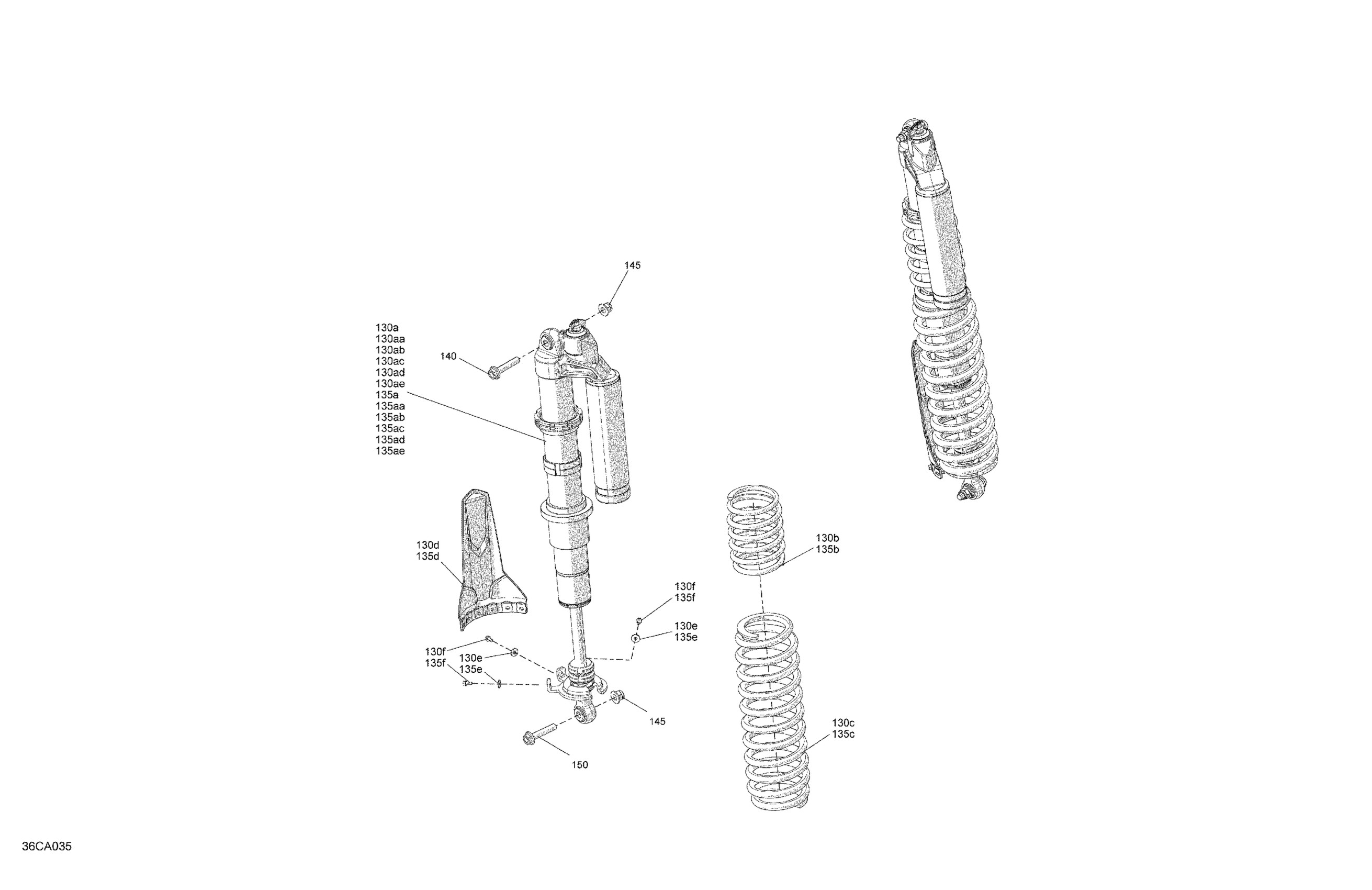

Can-Am 008 - Maverick MAX Turbo RR - XDS - International, 2021 05- Suspension - Rear Shocks - XDS Diagram

Description

Price

130a

LH Rear Shock | Includes 130a to 130a5

706002660

$1,179.99

130aa

Spherical Bearing

715900337

$84.99

130ab

O-Ring Bushing

715900338

$12.63

130ac

Circlip

715900480

$11.49

130ad

Reducer

715900481

$27.99

130ae

Ball Joint

706004078

$47.49

130b

Deep Black, Compression Spring

706005126

$100.49

130b

Northern Lichen, Compression Spring | Model Macchiato Satin

706004144

$100.49

130c

Black Rear Spring | Except XRSDPS Package

706002661

$153.49

130c

Northern Lichen, Compression Spring | Model Macchiato Satin

706004143

$153.49

130d

Protector

706202215

$11.99

130e

Washer M5

250200025

$0.74

130f

Hex Flange Screw M5 X 11

210251150

$2.11

135a

RH Rear Shock | Includes 135a to 135a5

706002663

$1,159.99

135aa

Spherical Bearing

715900337

$84.99

135ab

O-Ring Bushing

715900338

$12.63

135ac

Circlip

715900480

$11.49

135ad

Reducer

715900481

$27.99

135ae

Ball Joint

706004078

$47.49

135b

Deep Black, Compression Spring

706005126

$100.49

135b

Northern Lichen, Compression Spring | Model Macchiato Satin

706004144

$100.49

135c

Black Rear Spring | Except XRSDPS Package

706002661

$153.49

135c

Northern Lichen, Compression Spring | Model Macchiato Satin

706004143

$153.49

135d

Protector

706202215

$11.99

135e

Washer M5

250200025

$0.74

135f

Hex Flange Screw M5 X 11

210251150

$2.11

140

Flange Screw M12 X 60

250000857

$7.41

145

Elastic Flange Nut M12

233221466

$2.89

150

Flange Screw M12 X 60

250000857

$7.41
