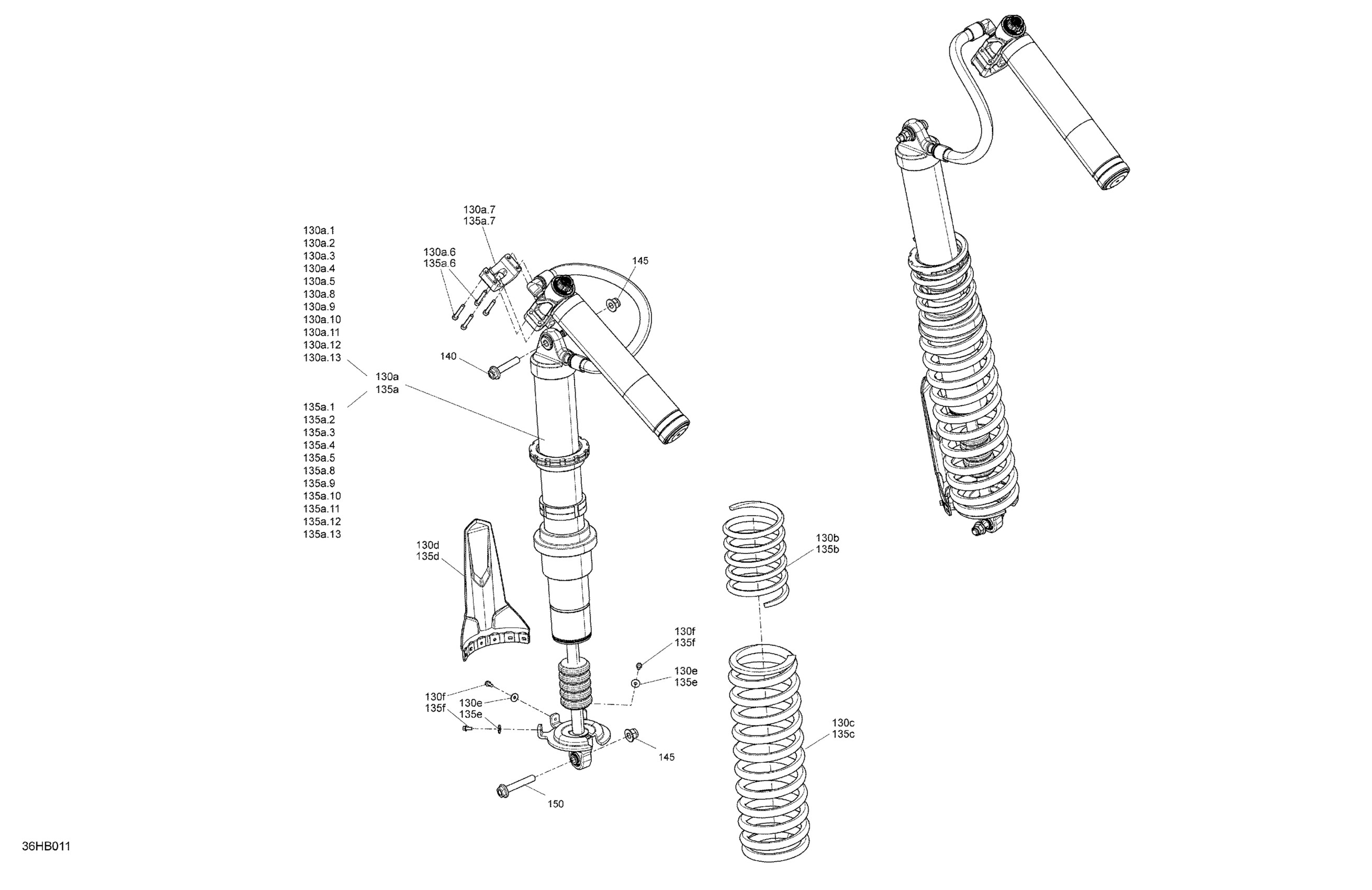

Can-Am 011 - Maverick MAX Turbo RR - XRS - International, 2022 05- Suspension - Rear Shocks - Without Smart-ShoX Diagram

Description

Price

130a

Rear Shock Absorber | Includes 130a to 130a13

706003897

$1,729.99

130a.1

Spherical Bearing

715900337

$84.99

130a.2

Ball Joint

706004078

$47.49

130a.3

O-Ring Bushing

715900338

$12.63

130a.4

Circlip

715900480

$11.49

130a.5

Reducer

715900481

$27.99

130a.6

Screw M6 X 35

715900521

$5.29

130a.7

Réservoir Clamp

715900522

$38.99

130a.8

Preload Ring

715900605

$26.99

130a.9

Preload Ring Backup

715900606

$26.99

130a.10

Spring Adapter

715900607

$13.99

130a.11

Crossover ring

715900608

$124.99

130a.12

Spring Retainer

715900597

$36.99

130a.13

Spring Coupler

715900593

$99.99

130b

Dazzling Blue, Compression Spring | Model Dazzling Blue

706004164

$121.49

130b

Northern Lichen, Compression Spring | Model Macchiato Satin without Smart-ShoX

706004193

$126.99

130c

Dazzling Blue, Compression Spring | Model Dazzling Blue

706004165

$147.99

130c

Northern Lichen, Compression Spring | Model Macchiato Satin without Smart-ShoX

706004196

$153.49

130d

Protector

706202215

$11.99

130e

Washer M5

250200025

$0.74

130f

Hex Flange Screw M5 X 11

210251150

$2.11

135a

Rear Shock Absorber | Includes 130a to 130a13

706003897

$1,729.99

135a.1

Spherical Bearing

715900337

$84.99

135a.2

Ball Joint

706004078

$47.49

135a.3

O-Ring Bushing

715900338

$12.63

135a.4

Circlip

715900480

$11.49

135a.5

Reducer

715900481

$27.99

135a.6

Screw M6 X 35

715900521

$5.29

135a.7

Réservoir Clamp

715900522

$38.99

135a.8

Preload Ring

715900605

$26.99

135a.9

Preload Ring Backup

715900606

$26.99

135a.10

Spring Adapter

715900607

$13.99

135a.11

Crossover ring

715900608

$124.99

135a.12

Spring Retainer

715900597

$36.99

135a.13

Spring Coupler

715900593

$99.99

135b

Dazzling Blue, Compression Spring | Model Dazzling Blue

706004164

$121.49

135b

Northern Lichen, Compression Spring | Model Macchiato Satin without Smart-ShoX

706004193

$126.99

135c

Dazzling Blue, Compression Spring | Model Dazzling Blue

706004165

$147.99

135c

Northern Lichen, Compression Spring | Model Macchiato Satin without Smart-ShoX

706004196

$153.49

135d

Protector

706202215

$11.99

135e

Washer M5

250200025

$0.74

135f

Hex Flange Screw M5 X 11

210251150

$2.11

140

Flange Screw M12 X 60

250000857

$7.41

145

Elastic Flange Nut M12

233221466

$2.89

150

Hex. Flange Screw M12 X 70

250000858

$3.80
