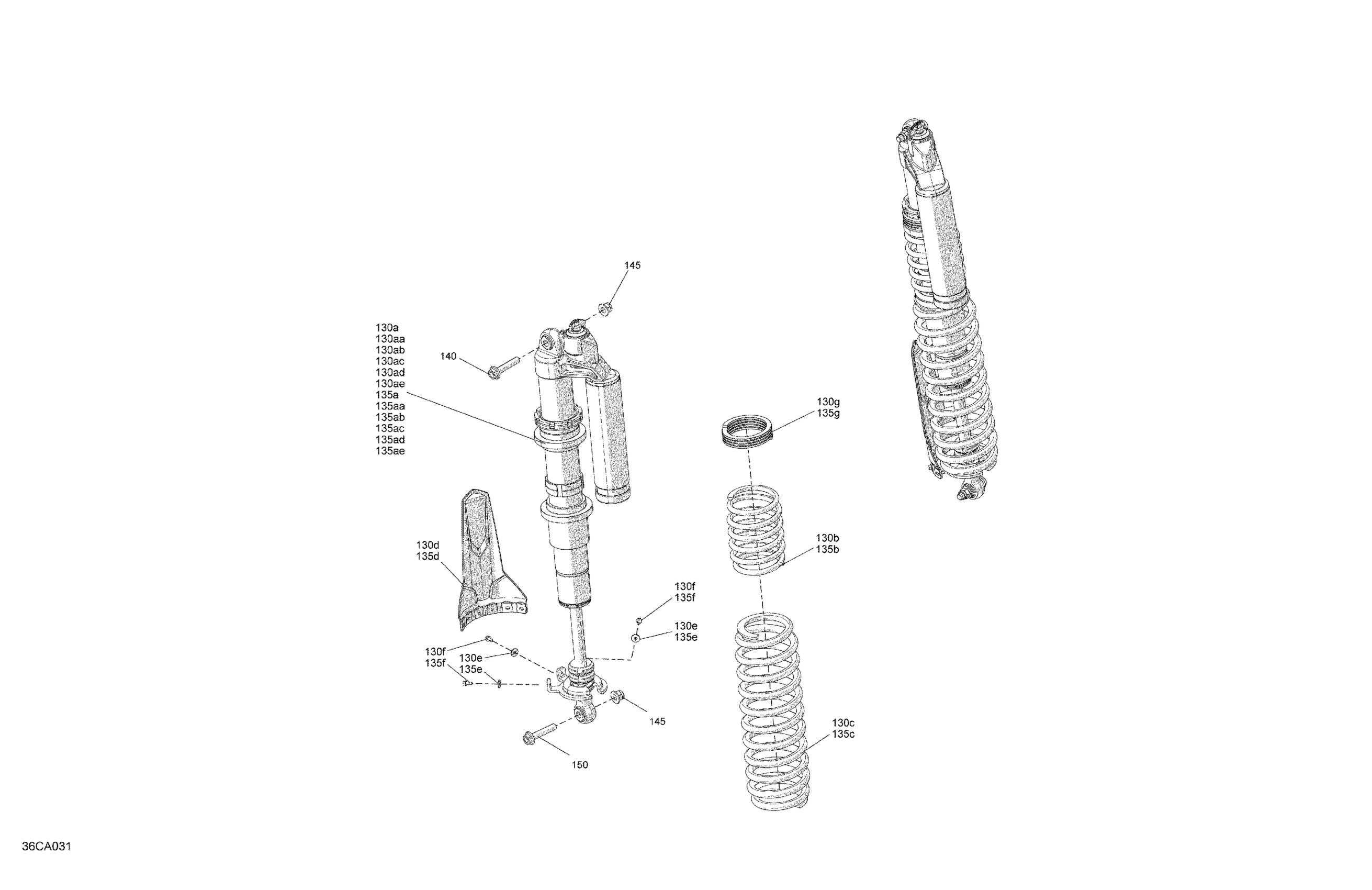

Can-Am 002 - Maverick Turbo R - DS_RS - International, 2021 05- Suspension - Rear Shocks - DS Diagram

Description

Price

130a

LH Rear Shock | Includes 135a to 135a5

706003059

$989.99

130aa

Spherical Bearing

715900337

$84.99

130ab

Ball Joint

706004078

$47.49

130ac

O-Ring Bushing

715900338

$12.63

130ad

Circlip

715900480

$11.49

130ae

Reducer

715900481

$27.99

130b

Gulfstream Blue Rear Spring

706003147

$100.49

130c

Gulfstream Blue Rear Spring

706003148

$153.49

130d

Protector

706202215

$11.99

130e

Washer M5

250200025

$0.74

130f

Hex Flange Screw M5 X 11

210251150

$2.11

130g

Gulfstream Blue, Rear Spring | Package XMR

706002560

$73.99

135a

RH Rear Shock | Includes 135a to 135a5

706003060

$999.99

135aa

Spherical Bearing

715900337

$84.99

135ab

Ball Joint

706004078

$47.49

135ac

O-Ring Bushing

715900338

$12.63

135ad

Circlip

715900480

$11.49

135ae

Reducer

715900481

$27.99

135b

Gulfstream Blue Rear Spring

706003147

$100.49

135c

Gulfstream Blue Rear Spring

706003148

$153.49

135d

Protector

706202215

$11.99

135e

Washer M5

250200025

$0.74

135f

Hex Flange Screw M5 X 11

210251150

$2.11

135g

Gulfstream Blue, Rear Spring | Package XMR

706002560

$73.99

140

Flange Screw M12 X 60

250000857

$7.41

145

Elastic Flange Nut M12

233221466

$2.89

150

Flange Screw M12 X 60

250000857

$7.41
