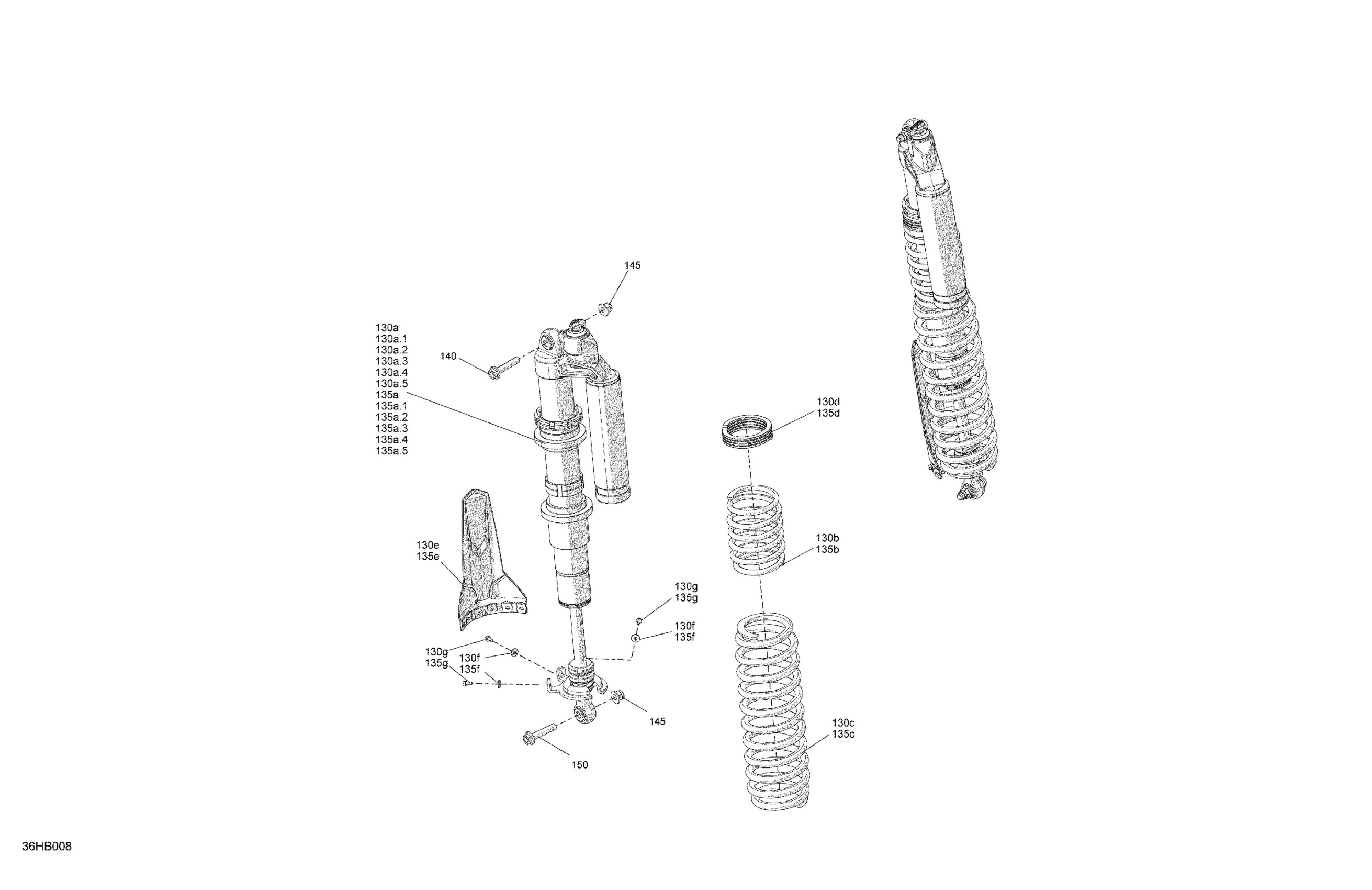

Can-Am 007 - Maverick Turbo RR - XMR - North America, 2022 05- Suspension - Rear Shocks - 64 Inches Width Diagram

Description

Price

130a

LH Rear Adjustable Shock Absorber | Includes 130a to 130a5

706004808

$1,009.99

130a.1

Spherical Bearing

715900337

$84.99

130a.2

Ball Joint

706004078

$47.49

130a.3

O-Ring Bushing

715900338

$12.63

130a.4

Circlip

715900480

$11.49

130a.5

Reducer

715900481

$27.99

130b

Magma Red, Rear Compression Spring

706004484

$94.49

130c

Magma Red, Rear Compression Spring

706004485

$142.99

130d

Magma Red, Rear Compression Spring

706004486

$69.99

130e

Protector

706202215

$11.99

130f

Washer M5

250200025

$0.74

130g

Hex Flange Screw M5 X 11

210251150

$2.11

135a

RH Rear Adjustable Shock Absorber

706004809

$999.99

135a.1

Spherical Bearing

715900337

$84.99

135a.2

Ball Joint

706004078

$47.49

135a.3

O-Ring Bushing

715900338

$12.63

135a.4

Circlip

715900480

$11.49

135a.5

Reducer

715900481

$27.99

135b

Magma Red, Rear Compression Spring

706004484

$94.49

135c

Magma Red, Rear Compression Spring

706004485

$142.99

135d

Magma Red, Rear Compression Spring

706004486

$69.99

135e

Protector

706202215

$11.99

135f

Washer M5

250200025

$0.74

135g

Hex Flange Screw M5 X 11

210251150

$2.11

140

Flange Screw M12 X 60

250000857

$7.41

145

Elastic Flange Nut M12

250001195

$2.64

150

Flange Screw M12 X 60

250000857

$7.41
