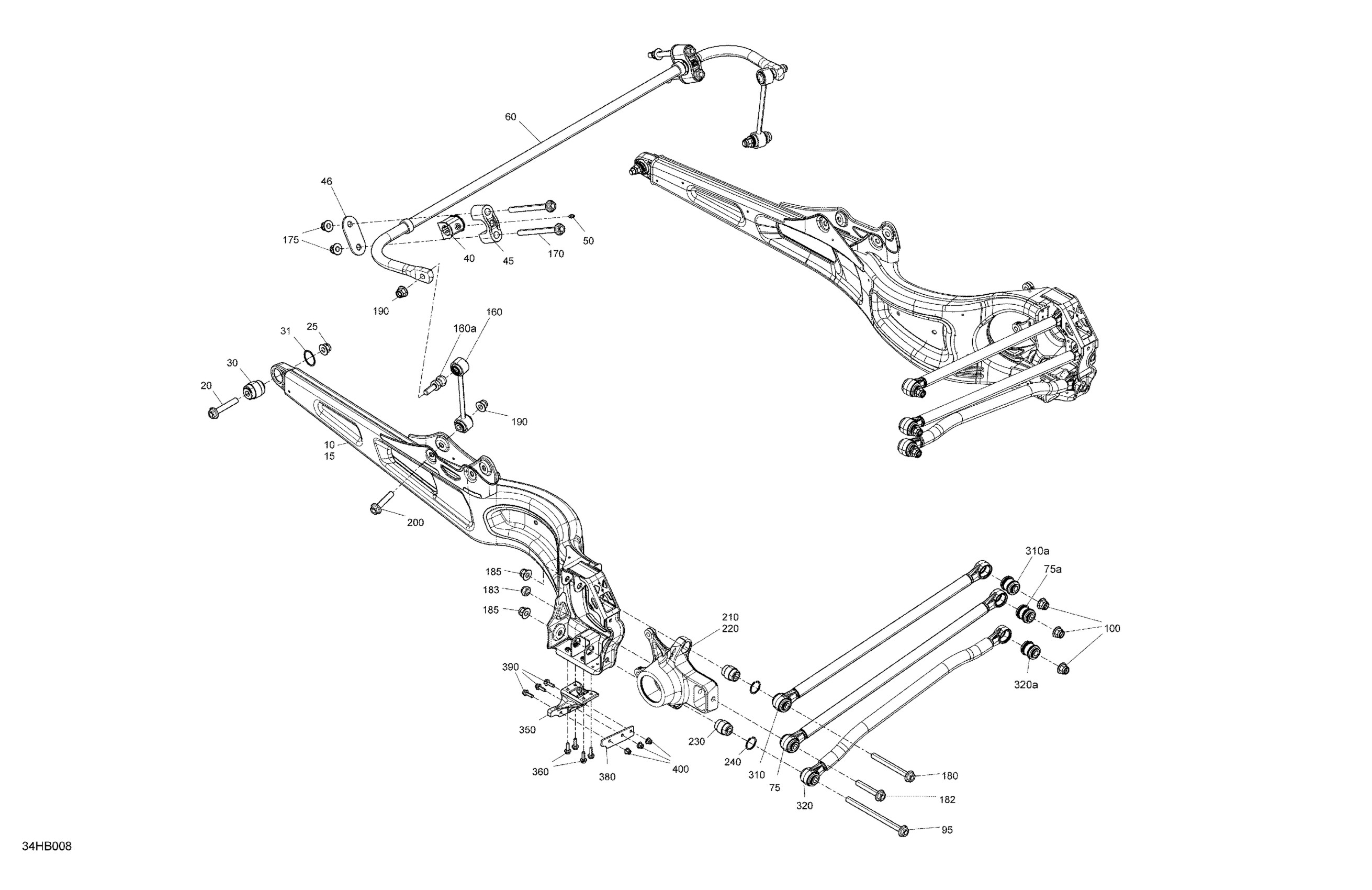

Can-Am 007 - Maverick Turbo RR - XMR - North America, 2022 05- Suspension - Rear Components - 64 Inches Width Diagram

Magma Red, LH Rear Suspension Arm

706004597

$360.49

Magma Red, RH Rear Suspension Arm

706004598

$360.49

Hex. Flange Screw M12 X 70

250000858

$3.80

Elastic Flange Nut M12

233221466

$2.89

Radial Joint

706001373

$52.99

Retaining Ring

293370093

$7.59

Stabilizer Bar Bushing

706004264

$3.61

Clamp

706002303

$17.05

Support Plate

706002357

$5.09

Grease Fitting

408200700

$3.49

Stabilizer Bar Ass'y

706002100

$98.49

Central Control Link | Includes 75 to 75a

706002099

$119.99

Radial Joint

706002135

$43.49

Screw Flange M12 X 175

250000862

$6.67

Elastic Flange Nut M12

233221466

$2.89

Rear Stabilizer Bar Link | Includes 160 to 160a

706003752

$93.99

Radial Joint

706002135

$43.49

Flange Screw M12 X 145

250000861

$6.67

Elastic Flange Nut M12

233221466

$2.89

Screw Flange M12 X 115

250000860

$6.67

Hex. Flange Screw DIN.6921 M12X1.75X80

250000974

$4.76

Elastic Flange Nut M12

233221466

$2.89

Elastic Flange Nut M12

233221466

$2.89

Elastic Flange Nut M12

233221466

$2.89

Flange Screw M12 X 60

250000857

$7.41

LH Rear Knuckle

706005410

$164.49

RH Rear Knuckle

706005411

$164.49

Radial Joint

706002317

$43.49

Retaining Ring

293370118

$7.59

Upper Control Link | Includes 310 to 310a

706002136

$134.99

Radial Joint

706002135

$43.49

Control Link | Includes 320 to 320a

706003140

$121.99

Radial Joint

706002135

$43.49

Deflector

706004265

$15.49

Hex. Flange Screw M6 X 20

207662044

$2.00

Wear Plate

706002851

$11.49

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
