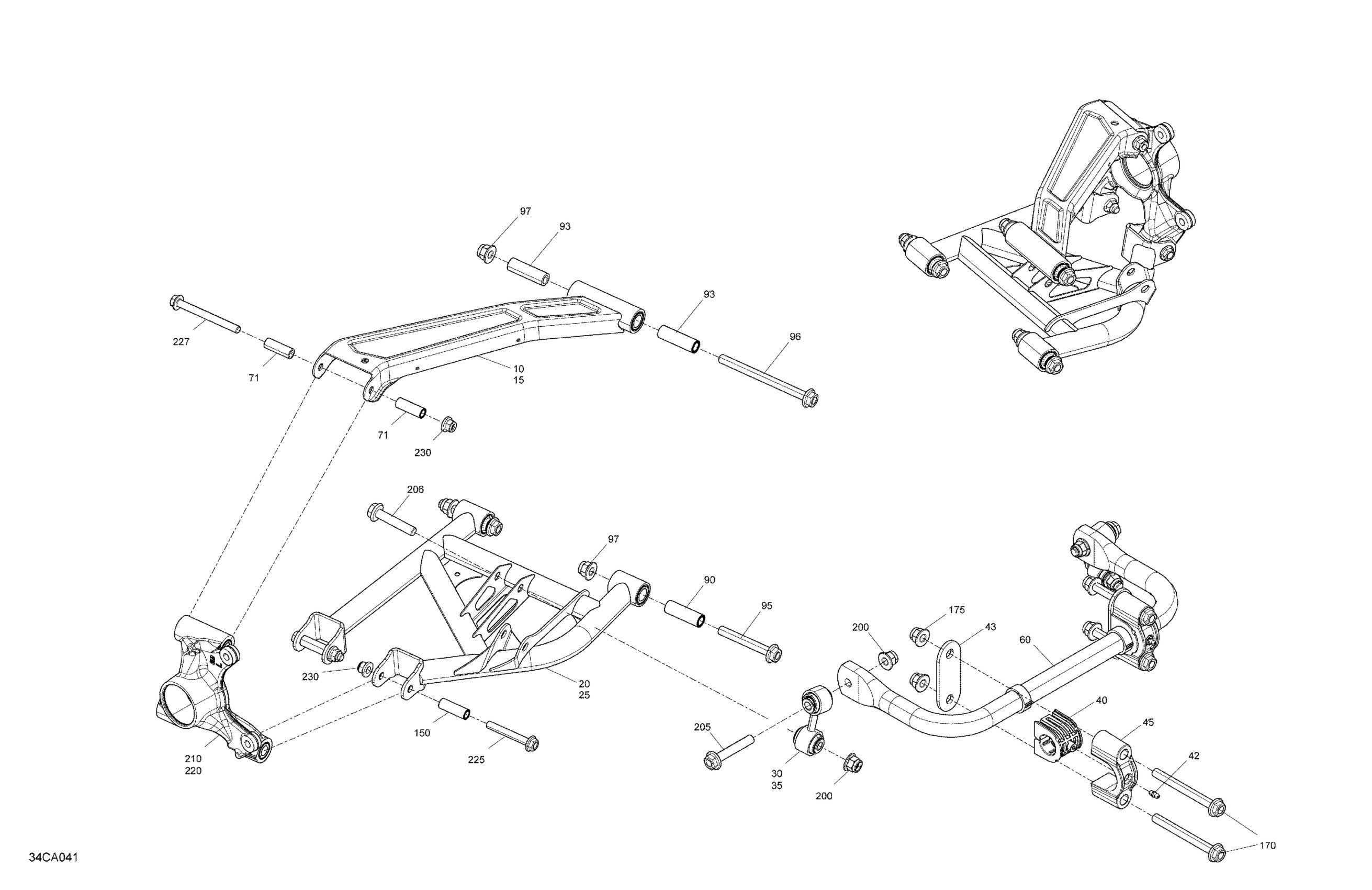

Can-Am 001 - Maverick Trail 800 - BASE_DPS - T Regulation, 2021 05- Suspension - Rear - Built After January 18th 2021 Diagram

LH Upper Suspension Arm

706003711

$169.49

RH Upper Suspension Arm

706003712

$169.49

LH Lower Suspension Arm

706003723

$169.49

RH Lower Suspension Arm

706003724

$169.49

Sway Bar Double Link

706003004

$111.49

Sway Bar Double Link

706003003

$111.49

Stabilizer Bar Bushing

706004266

$8.43

Grease Fitting

408200700

$3.49

Plate Support

706002977

$5.09

Clamp

706002970

$16.49

Sway Bar Ass'y

706002716

$126.99

Not Available As Spare Part - Friction Washer

Unavailable

Suspension Arm Bushing

706003528

$3.91

Suspension Arm Bushing

706004829

$3.91

Flange Screw M12 X 85

250000859

$4.76

Flange Screw M12 X 145

250000861

$6.67

Elastic Flange Nut M12

233221466

$2.89

Not Available As Spare Part - Friction Washer

Unavailable

Screw Flange M12 X 115

250000860

$6.67

Elastic Flange Nut M12

233221466

$2.89

Elastic Flange Nut M12

233221466

$2.89

Hex. Flange Screw M12 X 70

250000858

$3.80

Flange Screw M12 X 60

250000857

$7.41

LH Rear Knuckle Anchorage Ass'y | Includes 210 to 210c

715010560

$126.99

RH Rear Knuckle Anchorage Ass'y | Includes 220 to 220c

715010561

$126.99

Hex. Flange Screw M10 X 70

207607046

$2.96

Hex Flange Screw DIN.6921 - Call your local BRP dealership

230600046

$3.17

Hex. Flange Elastic Nut M10

233201436

$2.11
