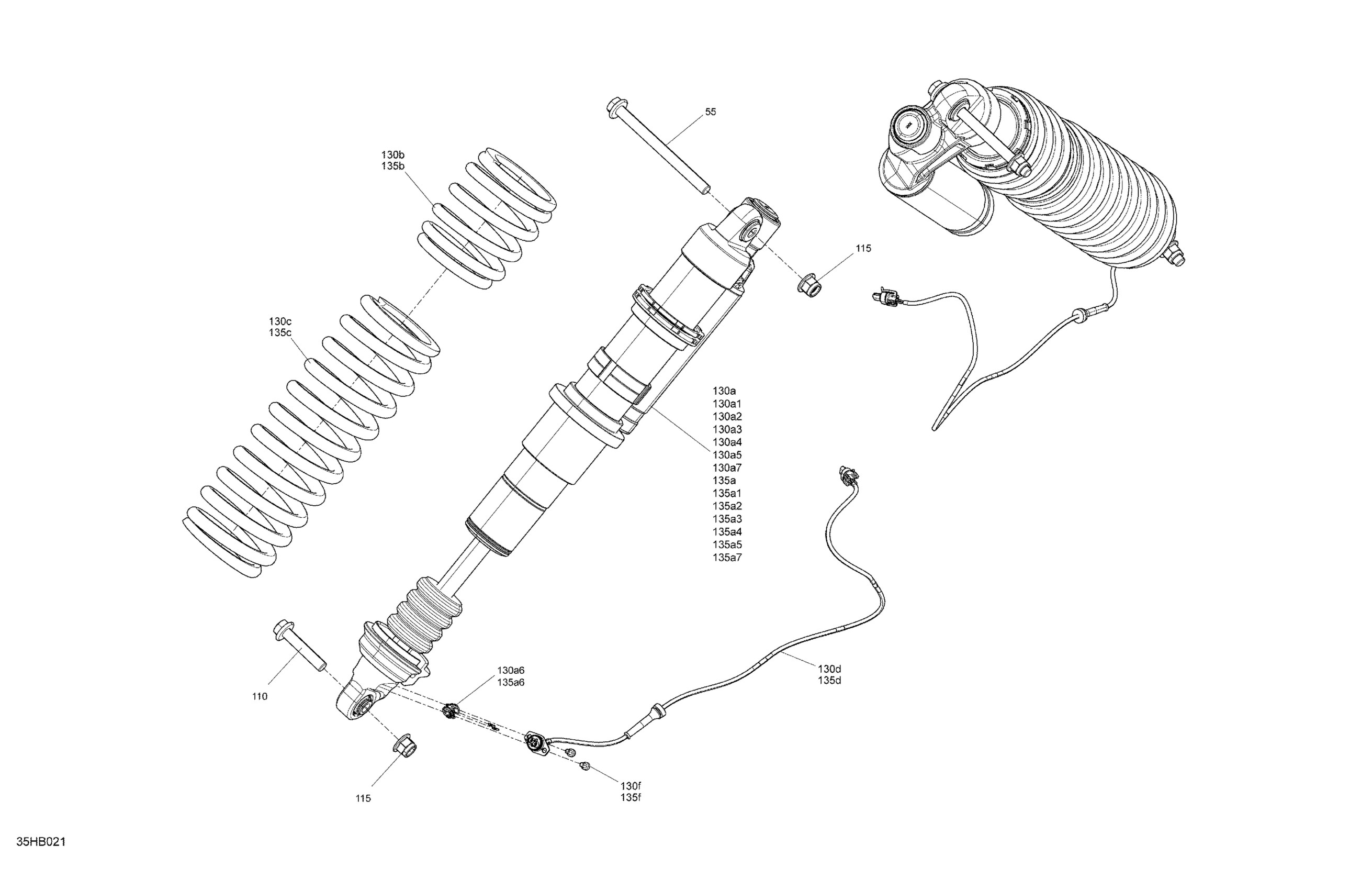

Can-Am 011 - Maverick MAX Turbo RR - XRS - International, 2022 05- Suspension - Front Shocks - With Smart-ShoX Diagram

Description

Price

Flange Screw M12 X 145

250000861

$6.67

110

Flange Screw M12 X 60

250000857

$7.41

115

Elastic Flange Nut M12

233221466

$2.89

130a

LH Front Adjustable Shock Absorber | Includes 130a to 130a5

706203517

$1,569.99

130a1

Spherical Bearing

715900337

$84.99

130a2

Ball Joint

706004078

$47.49

130a3

O-Ring Bushing

715900338

$12.63

130a4

Circlip

715900480

$11.49

130a5

Reducer

715900481

$27.99

130a6

Connector Support

706203583

$13.49

130a7

Anchorage

706204583

$15.49

130b

Dazzling Blue, Compression Spring | Model Dazzling Blue

706204318

$96.49

130c

Dazzling Blue, Compression Spring | Model Dazzling Blue

706204312

$147.99

130d

Front Suspension Wiring Harness Ass'y

710006388

$229.99

130f

Socket Head Screw M5 X 10

205551060

$1.58

135a

RH Front Adjustable Shock Absorber | Includes 135a to 135a5

706203518

$1,569.99

135a1

Spherical Bearing

715900337

$84.99

135a2

Ball Joint

706004078

$47.49

135a3

O-Ring Bushing

715900338

$12.63

135a4

Circlip

715900480

$11.49

135a5

Reducer

715900481

$27.99

135a6

Connector Support

706203583

$13.49

135a7

Anchorage

706204583

$15.49

135b

Dazzling Blue, Compression Spring | Model Dazzling Blue

706204318

$96.49

135c

Dazzling Blue, Compression Spring | Model Dazzling Blue

706204312

$147.99

135d

Front Suspension Wiring Harness Ass'y

710006388

$229.99

135f

Socket Head Screw M5 X 10

205551060

$1.58
