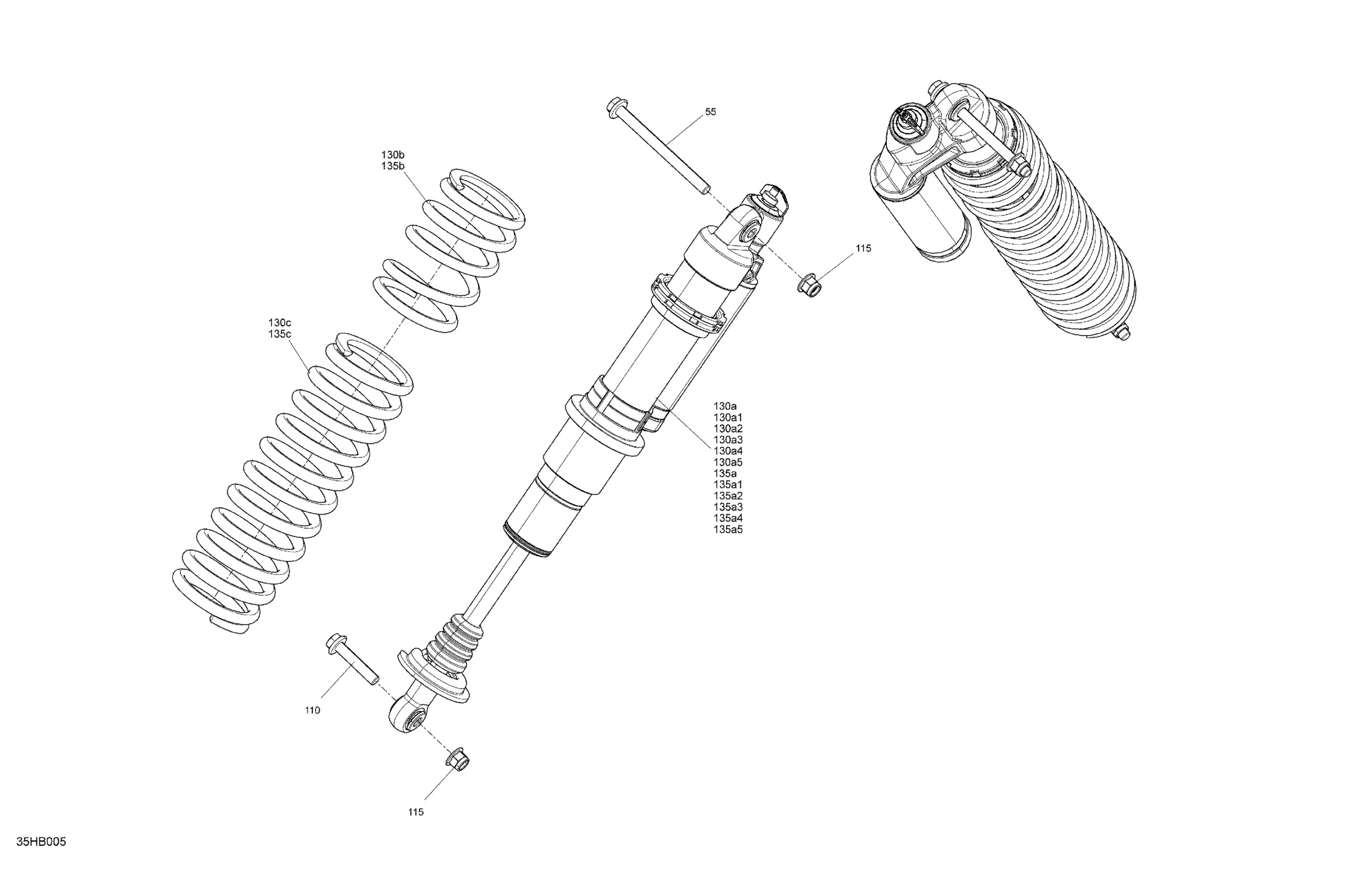

Can-Am 007 - Maverick Turbo RR - XMR - North America, 2022 05- Suspension - Front Shocks - Width 64 inch Diagram

Description

Price

Flange Screw M12 X 145

250000861

$6.67

110

Flange Screw M12 X 60

250000857

$7.41

115

Elastic Flange Nut M12

233221466

$2.89

130a

LH Front Adjustable Shock Absorber | Includes 130a to 130a5

706205026

$889.99

130a1

Spherical Bearing

715900337

$84.99

130a2

Ball Joint

706004078

$47.49

130a3

O-Ring Bushing

715900338

$12.63

130a4

Circlip

715900480

$11.49

130a5

Reducer

715900481

$27.99

130b

Magma Red, Front Compression Spring

706204679

$94.49

130c

Magma Red, Front Compression Spring

706204680

$116.49

135a

RH Front Adjustable Shock Absorber | Includes 135a to 135a5

706205027

$889.99

135a1

Spherical Bearing

715900337

$84.99

135a2

Ball Joint

706004078

$47.49

135a3

O-Ring Bushing

715900338

$12.63

135a4

Circlip

715900480

$11.49

135a5

Reducer

715900481

$27.99

135b

Magma Red, Front Compression Spring

706204679

$94.49

135c

Magma Red, Front Compression Spring

706204680

$116.49
