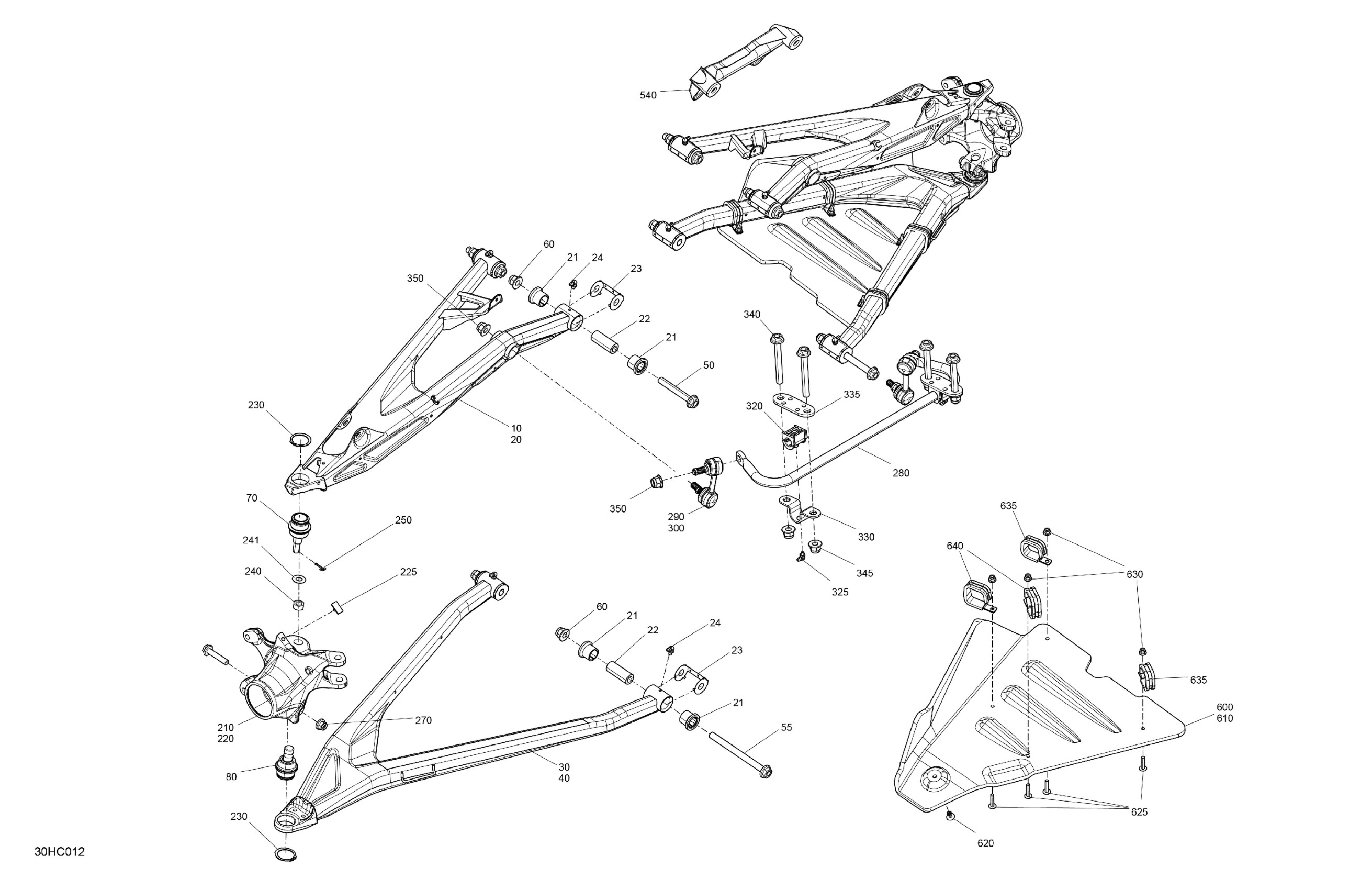

Can-Am 005 - Maverick Turbo RR - XRC - North America, 2023 05- Suspension - Front Components - 72in Diagram

Description

Price

Macchiato, LH Upper Suspension Arm

706205163

$201.49

Macchiato, RH Upper Suspension Arm

706205164

$201.49

Suspension Arm Bushing

706204409

$9.10

Interior Bushing

706202257

$9.79

Wear Plate

706202300

$2.29

Grease Fitting 90°

293550056

$1.15

Deep Black, LH Lower Suspension Arm

706204733

$222.49

Deep Black, RH Lower Suspension Arm

706204734

$222.49

Flange Screw M12 X 85

250000859

$4.76

Flange Screw M12 X 145

250000861

$6.67

Elastic Flange Nut M12

250001195

$2.64

Ball Joint

706203084

$35.99

Ball Joint

706202045

$35.99

210

LH Front Knuckle

706204785

$201.49

220

RH Front Knuckle

706204786

$148.49

225

Wear Plate

706202502

$2.29

230

Circlip

293370035

$2.64

240

Hex Nut M12

250100239

$2.00

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

270

Hex. Flange Elastic Nut M10

233201436

$2.11

280

Stabilizer Bar Ass'y

706203953

$98.49

290

LH Stabilizer Bar Link

706203611

$72.99

300

RH Stabilizer Bar Link

706203612

$72.99

320

Stabilizer Bar Bushing

706204564

$3.61

325

Grease Fitting 90°

293550056

$1.15

330

Clamp

706202460

$6.89

335

Support Plate

706202551

$5.09

340

Hex. Flange Screw M12 X 95

250000876

$6.77

345

Elastic Flange Nut M12

250001195

$2.64

350

Elastic Flange Nut M12

250001195

$2.64

540

Macchiatio, Front Shock Reinforcement

706204492

$49.99

600

LH A-Arm Protector

703501027

$179.99

610

RH A-Arm Protector

703501028

$158.99

620

Pop Rivet 3/16”

293150108

$1.19

625

Stainless, Torx Screw M6 X 30

250000842

$2.11

630

Hex. Flange Elastic Nut M6

233261494

$1.58

635

Holding Clamp

293750085

$7.59

640

Holding Clamp

293750086

$7.59
