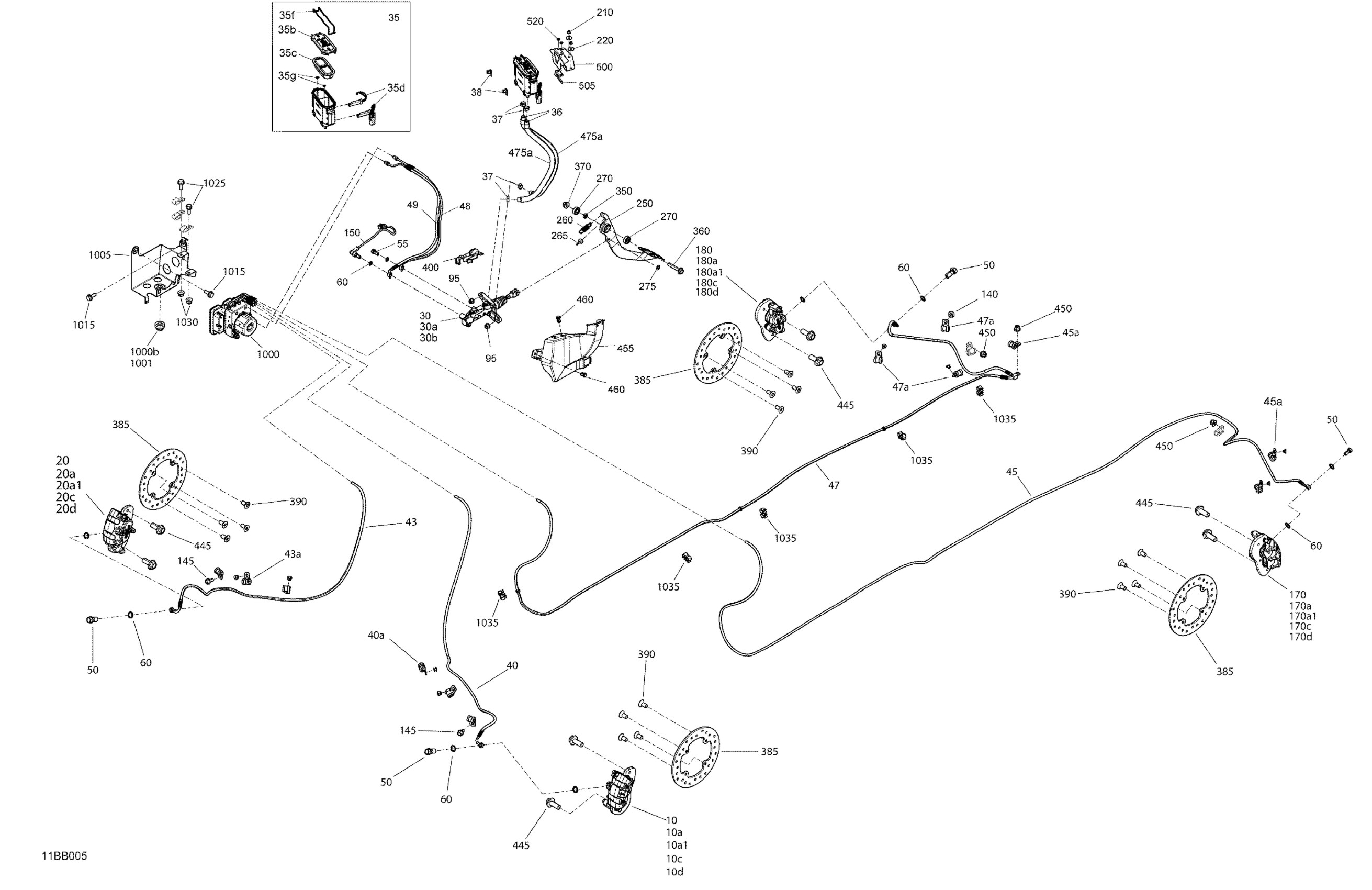

Can-Am 001 - Maverick Sport 1000R - DPS - T Regulation, 2022 03- Mechanic - Brake System - With ABS Diagram

#

Description
Price

10

LH Front Brake Caliper | LH Front

705601887

$360.49

10a

LH Brake Pads

715900379

$79.49

10a1

Pin Kit | Packages STD & PRO

715900384

$12.12

10c

Bleeding Screw

705601017

$6.35

10d

Cap Spring Kit

715900385

$17.59

20

RH Front Brake Caliper | RH Front

705601888

$370.99

20a

RH Brake Pads

715900380

$79.49

20a1

Pin Kit | Packages STD & PRO

715900384

$12.12

20c

Bleeding Screw

705601017

$6.35

20d

Cap Spring Kit

715900385

$17.59

30

Master Cylinder | Includes 30 to 30b

705601803

$379.99

30a

Boot Rod Kit

715900373

$51.99

30b

Fork Kit

715900374

$26.49

35

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$119.99

35b

Diaphragm Cover Ass'y

219800350

$17.59

35c

Diaphragm Cover Ass'y

219800350

$17.59

35d

Oil Level Sensor

705601073

$54.99

35f

Spindle Lock

705601294

$15.81

35g

Push Nut | Not shown

211100002

$2.19

36

Hose

705601801

$10.49

37

Oetiker Clamp

293650046

$2.89

38

Clip

710001343

$9.09

40

LH Front Caliper Hose | Includes 40 to 40a

705601858

$79.49

40a

Clamp

293650256

$5.49

43

RH Front Caliper Hose | Includes 43 to 43a

705601859

$86.99

43a

Clamp

293650256

$5.49

45

LH Rear Caliper Hose | Includes 45 to 45a

705601960

$211.99

45a

Clamp

293650256

$5.49

47

RH Rear Caliper Hose | Includes 47 to 47a

705601961

$206.49

47a

Clamp

293650256

$5.49

48

Front Master Cylinder Hose

705601663

$79.49

49

Rear Master Cylinder Hose

705601664

$86.99

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

55

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

60

Copper Washer

705601628

$4.44

95

Hex. Elastic Flange Nut M8

233281416

$1.48

140

Pop Rivet 3/16"

390402200

$0.35

145

Hex. Flange Screw M6 X 10

210261040

$1.48

150

Brake Switch

705601669

$51.99

170

LH Rear Brake Caliper | Includes 170 to 170d

705601889

$259.49

170a

LH Brake Pads

715900386

$79.49

170a1

Pin Kit | Packages STD & PRO

715900384

$12.12

170c

Bleeding Screw

705601017

$6.35

170d

Cap Spring Kit

715900385

$17.59

180

RH Rear Brake Caliper | Includes 180 to 180d

705601890

$328.49

180a

RH Brake Pads

715900387

$79.49

180a1

Pin Kit | Packages STD & PRO

715900384

$12.12

180c

Bleeding Screw

705601017

$6.35

180d

Cap Spring Kit

715900385

$17.59

210

Elastic Flange Nut M5

233251494

$2.11

220

Flat Washer

250200040

$1.90

250

Brake Pedal

705601537

$57.99

260

Brake Pedal Spring

705600792

$9.10

265

Rubber Stopper

708000759

$4.19

270

Bearing

705600458

$19.99

275

Nylon Flat Washer M8

250200183

$1.39

350

Bushing

705601622

$14.81

360

Hex. Flange Screw M10 X 55

207605546

$2.11

370

Hex. Flange Elastic Nut M10

233201436

$2.11

385

Brake Disc

705601511

$66.49

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

400

Hose Support

705601750

$4.55

445

Hex. Flange Screw M10 X 25

207502546

$2.11

450

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

455

Master Cylinder Deflector

705601626

$8.60

460

Tuflok Plastic Rivet

293150230

$1.47

475a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

500

Reservoir Support

705601644

$14.76

505

Stopper Bracket

705601608

$7.55

520

Pop Rivet 3/16"

390402200

$0.35

1000

Vehicle Control Module Kit

703501232

$1,499.99

1000b

Shock Damper

710003279

$10.49

1001

Shock Damper

710003279

$10.49

1005

Module Support

705601642

$85.99

1015

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

1025

Hex. Flange Screw M6 X 16

207661644

$0.74

1030

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1035

Hose Clip

705601818

$19.09
