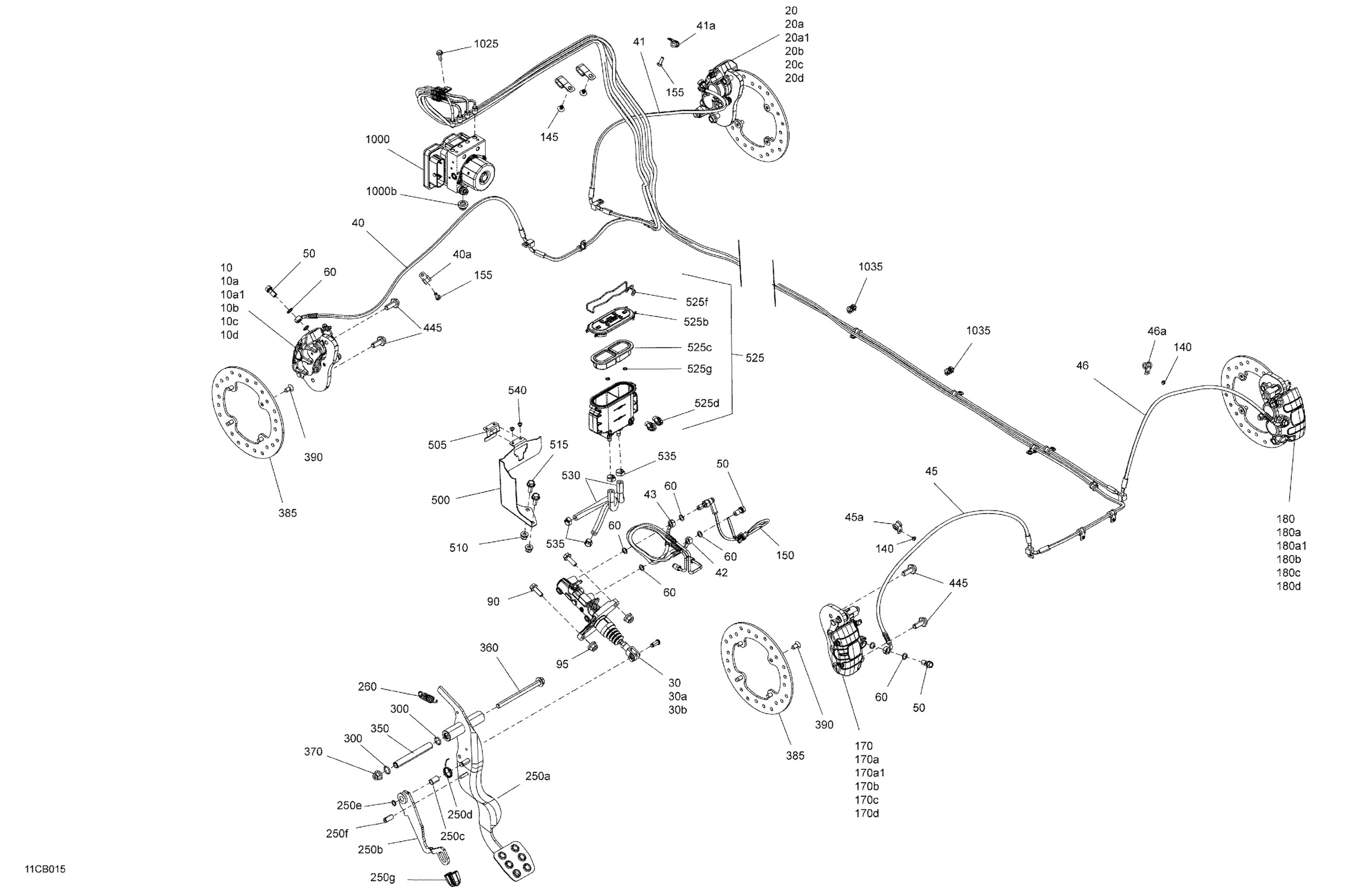

Can-Am 005 - Traxter PRO HD10 - DPS - CE, 2022 03- Mechanic - Brake System - ABS Diagram

#

Description
Price

10

LH Front Brake Caliper | LH Front

705601887

$360.49

10a

LH Brake Pads

715900379

$79.49

10a1

Pin Kit | Packages STD & PRO

715900384

$12.12

10b

Pin Kit | Packages STD & PRO

715900384

$12.12

10c

Bleeding Screw

705601017

$6.35

10d

Cap Spring Kit

715900385

$17.59

20

RH Front Brake Caliper | RH Front

705601888

$370.99

20a

RH Brake Pads

715900380

$79.49

20a1

Pin Kit | Packages STD & PRO

715900384

$12.12

20b

Pin Kit | Packages STD & PRO

715900384

$12.12

20c

Bleeding Screw

705601017

$6.35

20d

Cap Spring Kit

715900385

$17.59

30

Master Cylinder | Includes 30 to 30b

705601803

$379.99

30a

Boot Rod Kit

715900373

$51.99

30b

Fork Kit

715900374

$26.49

40

LH Front Caliper Hose | Includes 40 to 40a

705601906

$142.99

40a

Clamp

293650256

$5.49

41

RH Front Caliper Hose | Includes 41 to 41a

705601907

$158.99

41a

Clamp

293650256

$5.49

42

Front Master Cylinder Hose

705601915

$142.99

43

Rear Master Cylinder Hose

705601916

$142.99

45

LH Rear Caliper Hose | Includes 45 to 45a

705601910

$158.99

45a

Clamp

293650256

$5.49

46

RH Rear Caliper Hose | Includes 46 to 46a

705601911

$158.99

46a

Clamp

293650256

$5.49

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

60

Copper Washer

705601628

$4.44

90

Hex. Flange Screw M8 X 25

207682544

$1.35

95

Hex. Elastic Flange Nut M8

233281416

$1.48

140

Pop Rivet 3/16"

390402200

$0.35

145

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

150

Brake Switch

705601669

$51.99

155

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

170

LH Rear Brake Caliper | Includes 170 to 170d

705601889

$259.49

170a

LH Brake Pads

715900386

$79.49

170a1

Pin Kit | Packages STD & PRO

715900384

$12.12

170b

Pin Kit | Packages STD & PRO

715900384

$12.12

170c

Bleeding Screw

705601017

$6.35

170d

Cap Spring Kit

715900385

$17.59

180

RH Rear Brake Caliper | Includes 180 to 180d

705601890

$328.49

180a

RH Brake Pads

715900387

$79.49

180a1

Pin Kit | Packages STD & PRO

715900384

$12.12

180b

Pin Kit | Packages STD & PRO

715900384

$12.12

180c

Bleeding Screw

705601017

$6.35

180d

Cap Spring Kit

715900385

$17.59

250a

Brake Pedal | Includes 250 to 250a

705601777

$57.99

250b

Lever

705601725

$13.49

250c

Bushing

705601722

$8.85

250d

Spring

705601729

$9.10

250e

Circlip

705601770

$2.68

250f

Hose

219704549

$50.99

250g

Adjustment Handle

708002655

$16.99

260

Brake Pedal Spring

705600792

$9.10

300

O-Ring

293300144

$3.82

350

Inside Sleeve

705601373

$12.11

360

Hex. Flange Screw, M10 X 130

230603046

$7.41

370

Hex. Flange Elastic Nut M10

233201436

$2.11

385

Brake Disc

705601511

$66.49

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

445

Hex. Flange Screw M10 X 25

207502546

$2.11

500

Support

705601567

$14.76

505

Stopper Bracket

705601608

$7.55

510

Hex. Flange Elastic Nut M8

233281414

$1.47

515

Hex. Flange Screw M8 X 20

207682044

$1.15

525

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$119.99

525b

Diaphragm Cover Ass'y

219800350

$17.59

525c

Diaphragm Cover Ass'y

219800350

$17.59

525d

Oil Level Sensor

705601073

$54.99

525f

Spindle Lock

705601294

$15.81

525g

Push Nut | Not shown

211100002

$2.19

530

Hose

705601603

$10.49

535

Oetiker Clamp

293650046

$2.89

540

Pop Rivet 3/16"

390402200

$0.35

1000

Module ESP Wet Prog & Grommet Kit | Includes 1000 to 1000b

703501118

$1,539.99

1000b

Shock Damper

710003279

$10.49

1025

Hex. Flange Screw M6 X 16

207661644

$0.74

1035

Hose Clip

705601818

$19.09
