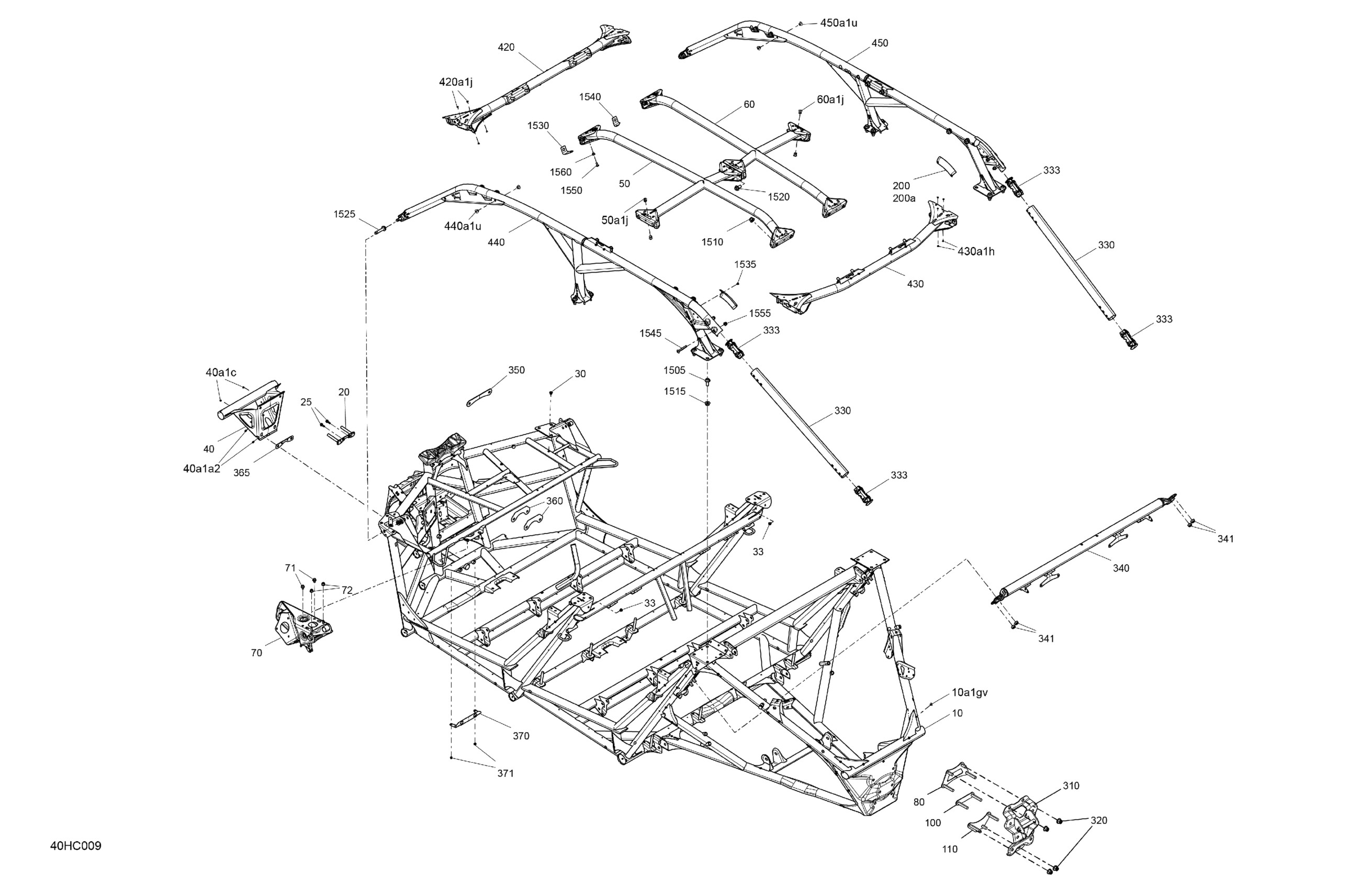

Can-Am 012 - Maverick MAX Turbo RR - XRS Smart Shock - International, 2023 06- Frame - System Diagram

#

Description
Price

10

Chalk, Frame Ass'y | Includes 10 to 10a1gv

715008514

$3,309.99

10a1gv

Pop Rivet 3/16"

390402200

$0.35

20

Front Plate

705207424

$22.99

25

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

30

Insert Half Hex Body M6 x 1.0

250100199

$3.19

33

Insert Half Hex Body M6 x 1.0

250100199

$3.19

40

Chalk, Front Bumper | Includes 40 to 40a1c

705209863

$116.49

40a1a2

Pop Rivet 3/16"

390402200

$0.35

40a1c

Pop Rivet 3/16"

390402200

$0.35

50

Chalk, LH Reinforcement Cage | Includes 50 to 50a1j

705209879

$91.99

50a1j

Pop Rivet 3/16"

390402200

$0.35

60

Chalk, RH Reinforcement Cage | Includes 60 to 60a1j

705209881

$91.99

60a1j

Pop Rivet 3/16"

390402200

$0.35

70

DPS Support

705206924

$71.99

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

72

Hex. Elastic Flange Nut M8

233281416

$1.48

80

Rear Upper Plate

705211557

$20.99

100

Rear Central Plate

705211558

$20.99

110

Rear Lower Plate

705211556

$18.49

200

Chalk, Upper Plate Kit | Includes 200 to 200a

705211603

$27.99

200a

Chalk, Connecting Plate

705209867

$12.99

310

Connecting Plate

705210271

$51.99

320

Elastic Flange Nut M12

250001195

$2.64

330

Chalk, Rear Pillar

705209862

$24.49

333

Sleeve

705210648

$9.90

340

Safety Belt Anchorage

705210001

$129.99

341

Elastic Stop Nut M12

232521416

$1.69

350

Connecting Plate

705211552

$5.39

360

Retaining Plate

705210249

$5.29

365

Front Plate | Package STD

705207438

$2.69

370

Support

706203122

$14.49

371

Pop Rivet 3/16"

390402200

$0.35

420

Chalk, Front Cross Member | Includes 420 to 420a1j

705209869

$204.99

420a1j

Pop Rivet 3/16"

390402200

$0.35

430

Chalk, Rear Cross Member | Includes 430 to 430a1h

705209871

$204.99

430a1h

Pop Rivet 3/16"

390402200

$0.35

440

Chalk, LH Cage Ass'y | Includes 440 to 440a1u

715008499

$519.99

440a1u

Pop Rivet 3/16"

390402200

$0.35

450

Chalk, RH Cage Ass'y | Includes 450 to 450a1u

715008505

$519.99

450a1u

Pop Rivet 3/16"

390402200

$0.35

1505

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

1510

Elastic Flange Nut M12

250001195

$2.64

1515

Elastic Flange Nut M12

250001195

$2.64

1520

Hex. Flange Screw DIN.6921 M12X25

250000856

$6.67

1525

Flange Screw M12 X 60

250000857

$7.41

1530

Deep Black, LH Cage Reinforcement

705211746

$58.99

1535

Rivet 3/16"

293150102

$0.70

1540

Deep Black, RH Cage Reinforcement

705211747

$58.99

1545

Torx Truss M8 X 65

250000901

$1.90

1550

Torx Head Screw M6 X 16

250000717

$2.11

1555

Elastic Flange Nut M8

250100025

$1.48

1560

Hex. Flange Elastic Nut M6

233261466

$2.00
