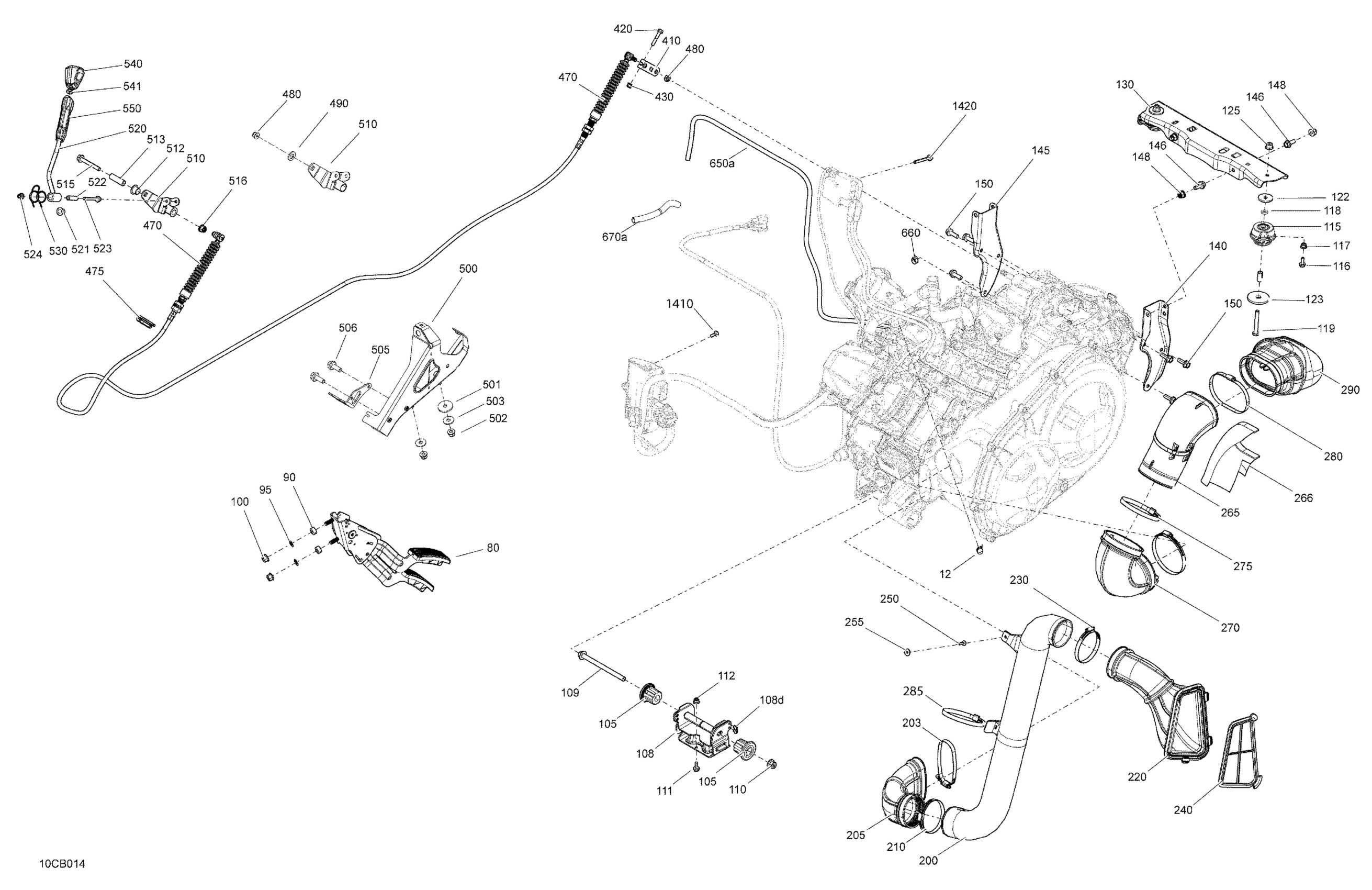

Can-Am 011 - Defender MAX HD10 - Lone Star CAB (6LNA) - North America, 2022 02- Engine - System Diagram

#

Description
Price

12

Norma Spring Clamp

293650214

$15.89

80

Accelerator Pedal

707001599

$299.99

90

Bushing

707000848

$1.35

95

Push Nut

250100031

$7.29

100

Hex. Flange Nut

233081436

$2.00

105

Vibration Damper

707001169

$42.99

108

Vibration Damper | Includes 108 to 108d

707003061

$144.99

108d

Pop Rivet 3/16"

390402200

$0.35

109

Hex. Flange Screw M10 X 135

230603546

$7.41

110

Hex. Flange Elastic Nut M10

233201436

$2.11

111

Hex. Flange Screw M6 X 20

207662044

$2.00

112

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

115

Rubber Mount

707002590

$58.49

116

Hex. Flange Screw M6 X 20

207662044

$2.00

117

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

118

O-Ring

293300215

$0.90

119

Hex. Flange Screw, M8 X 65

207686544

$13.16

122

Flat Washer M8

250200158

$2.11

123

Flat Washer M8

250200180

$2.29

125

Hex. Flange Nut

233081436

$2.00

130

Rear Link Bracket

707002290

$30.99

140

LH Rear Engine Support

707003338

$15.49

145

RH Rear Engine Support

707003340

$18.99

146

Hex Flange Screw M8 X 20

207582046

$1.48

148

Hex. Elastic Flange Nut M8

233281416

$1.48

150

Hex Flange Screw M8 X 20

207582046

$1.48

200

Front CVT Cooling Duct

706600326

$61.99

203

Norma Clamp

514052924

$14.22

205

Flexible Adapter

706600249

$19.49

210

Norma Clamp

293650091

$11.12

220

Flexible Adaptor

706600084

$42.49

230

Norma Clamp

293650091

$11.12

240

CVT Filter

706600156

$19.49

250

Torx Screw Truss Head K50X20 T20

250000760

$2.11

255

Washer M5

250200025

$0.74

265

Duct Out

706600426

$33.99

266

Heat Shield

706600133

$3.79

270

Flexible Adaptor

706600108

$23.99

275

Norma Gear Clamp

514052983

$15.89

280

Norma Gear Clamp

514052983

$15.89

285

Norma Gear Clamp

514052983

$15.89

290

Air Deflector

706600125

$27.99

410

Lever

707000911

$20.49

420

Hex. Flange Screw M6 X 35

207663544

$0.90

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

470

Shift Lever Cable

707002725

$67.99

475

Grommet

293720109

$10.49

480

Hex. Elastic Stop Nut M8

232581414

$0.56

490

Flat Washer 10 mm

234001410

$1.26

500

Shifter Bracket

707002372

$36.99

501

Flat Washer M8

250200158

$2.11

502

Hex. Flange Elastic Nut M8

233281414

$1.47

503

Flat Washer 8 mm

234082410

$1.47

505

Cable Support

707002038

$16.87

506

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

510

Lower Shifter Arm

707002268

$16.99

512

Venturi Bushing

293900001

$7.62

513

Bushing

707003445

$13.12

515

Hex. Flange Screw M8 x 60

207686044

$3.07

516

Hex. Flange Elastic Nut M8

233281414

$1.47

520

Shifter Arm

707002374

$23.99

521

Flanged Bushing

707000869

$2.89

522

Bushing

707001376

$5.24

523

Hex. Flange Screw M6 X 50

207665044

$4.12

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

530

Lever Arm Spring

707000750

$2.68

540

Lever Trim

707003211

$8.49

541

Hex. Jam Nut M8

232180491

$7.51

550

Shifting Arm Cover

707001899

$14.68

650a

Hose 1/4"

415079800

Unavailable

660

Oetiker Clamp

293650042

$3.09

670a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

1410

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

1420

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.11
