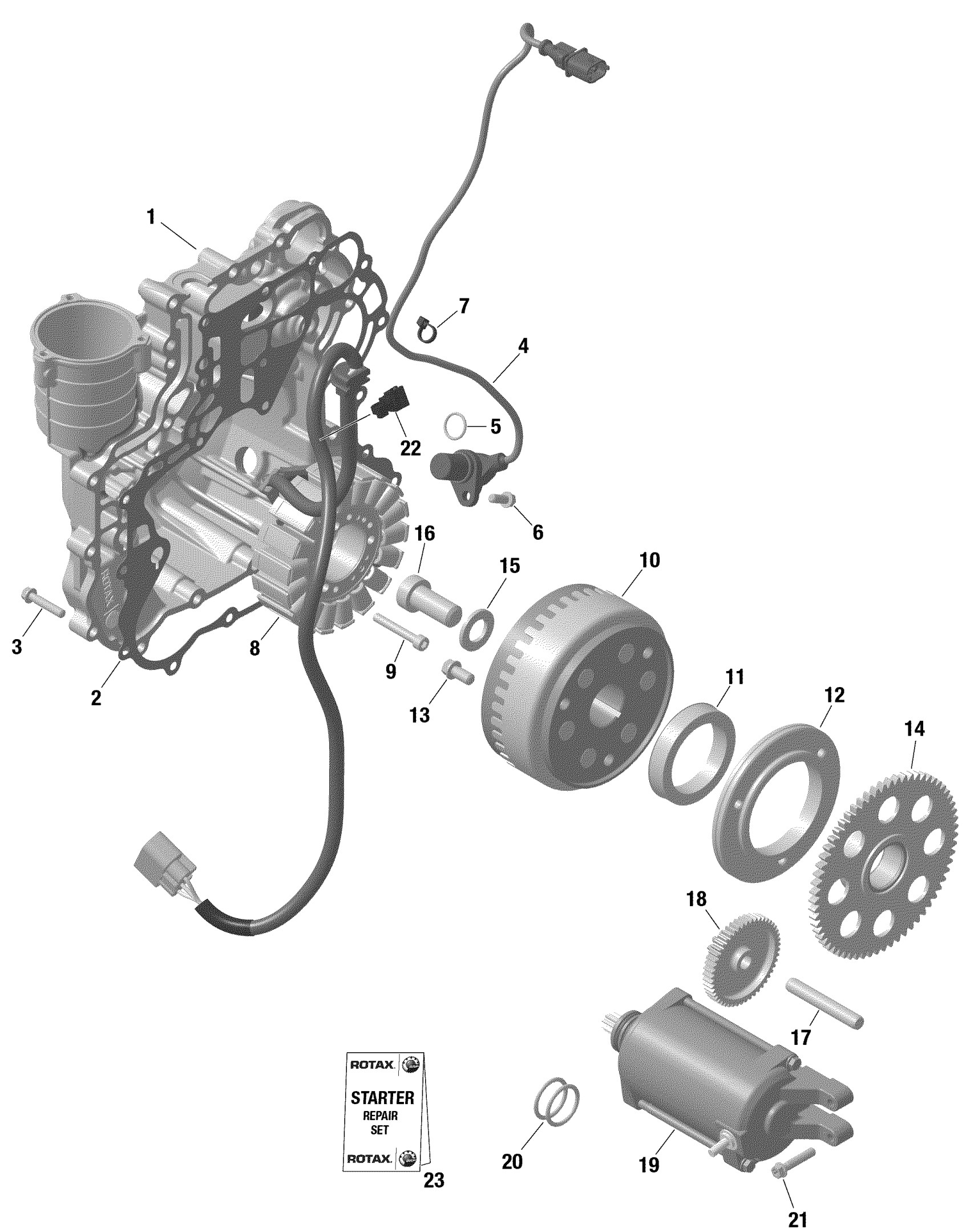

Can-Am 001 - Maverick Turbo - DS - International, 2022 01- ROTAX - Magneto and Electric Starter - Turbo Diagram

Description

Price

Ignition Cover

420911055

$179.99

Gasket

420431640

$30.49

Torx Flange Screw M6 X 30

420440647

$2.00

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

Not Available As Spare Parts

XXX

Unavailable

Torx Flange Screw M6 X 16

420440162

$3.17

Tie Rap

420866714

$1.90

Stator Plate 650W

420685635

$319.49

Allen Screw M6 X 40

420241956

$3.17

Flywheel Ass'y 650W

420686192

$558.99

Sprag Clutch

420659113

$259.99

Sparg Clutch Housing

420659263

$154.99

Torx Flange Screw M8 X 16

420440854

$4.44

Free Wheel Gear, 64 Teeth

420434238

$114.99

Shim

420627270

$4.12

Socket Head Screw M16 X 35

420241549

$8.57

Needle Pin

420229475

$14.83

Starter Double Gear 11/49 T

420634741

$199.99

Starter Ass'y | Includes 8 to 9

420893830

$265.99

Not Available As Spare Parts

XXX

Unavailable

Torx Flange Screw M6 X 30

420440647

$2.00

Cable Clamp 150mm

420951650

$4.44

Carbon Brush Set

420881145

$204.99
