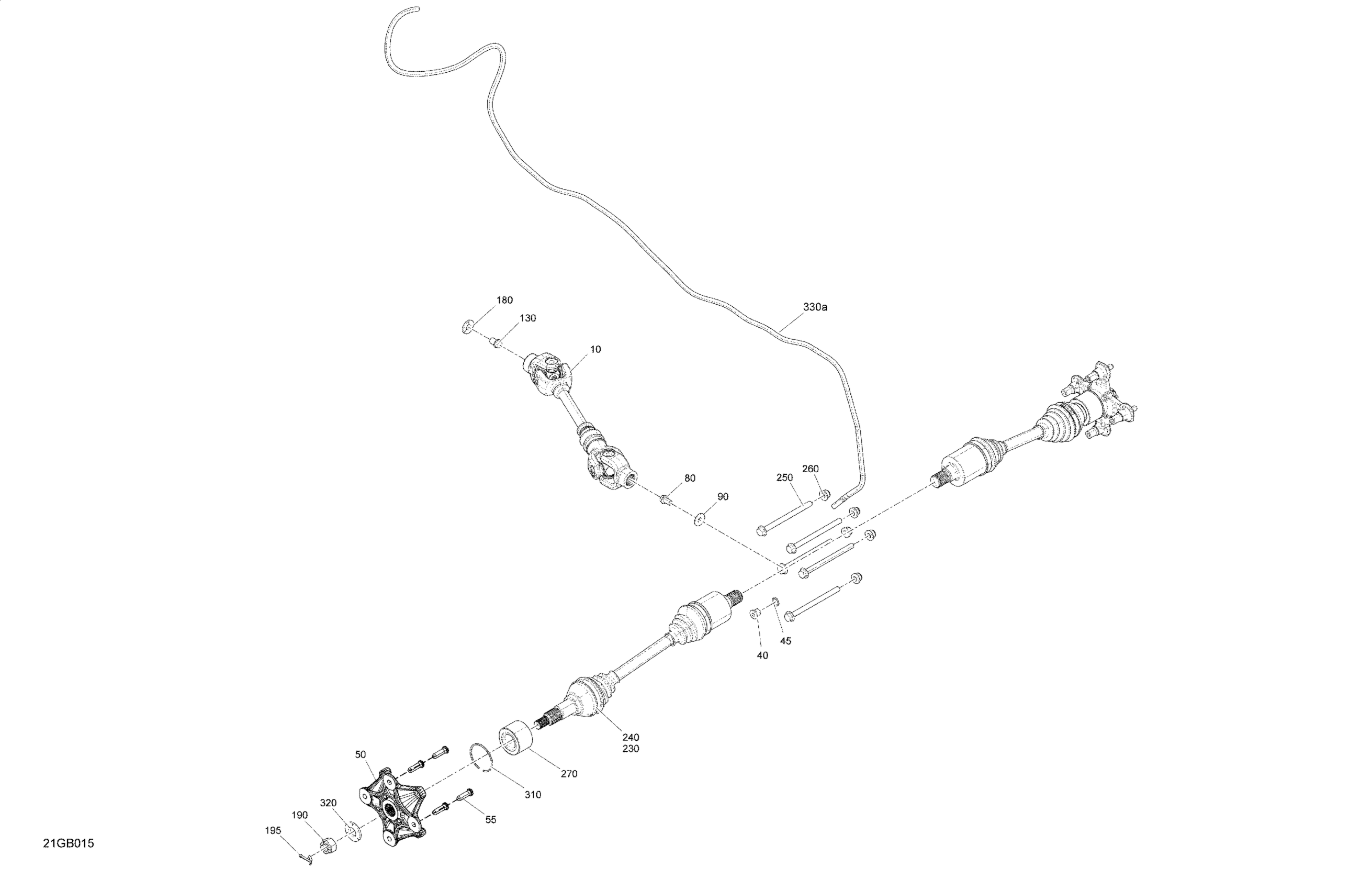

Can-Am 009 - Outlander T MAX 450 EFI - STD - T Regulation, 2022 04- Drive - Rear - Common Parts Diagram

#

Description

Price

10

Axle Drive | Includes 10 to 10e

705502726

Unavailable

40

Fill Level Plug | 4X4

705500504

Unavailable

45

Copper Washer | 4X4

705500506

Unavailable

50

Wheel Hub

705503257

Unavailable

55

Wheel Stud M10 X 1.25 | 2X4

250300055

Unavailable

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

Unavailable

90

Flat Washer M10 | 4X4

250200014

Unavailable

130

Hex Flange Screw M12 X 16

250001039

Unavailable

180

Conical Spring Washer M12

250200005

Unavailable

190

Hex. Flange Castellated Nut M18

232291413

Unavailable

195

Cotter Pin

250400071

Unavailable

230

RH Half Shaft Ass'y

705501897

Unavailable

240

LH Half Shaft Ass'y

705501898

Unavailable

250

Hex. Flange Screw M10 X 135

250001041

Unavailable

260

Hex. Flange Elastic Nut M10

233201436

Unavailable

270

Ball Bearing

293350150

Unavailable

310

Circlip

293370019

Unavailable

320

Conical Spring Washer M18

250200171

Unavailable

330a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

Unavailable
