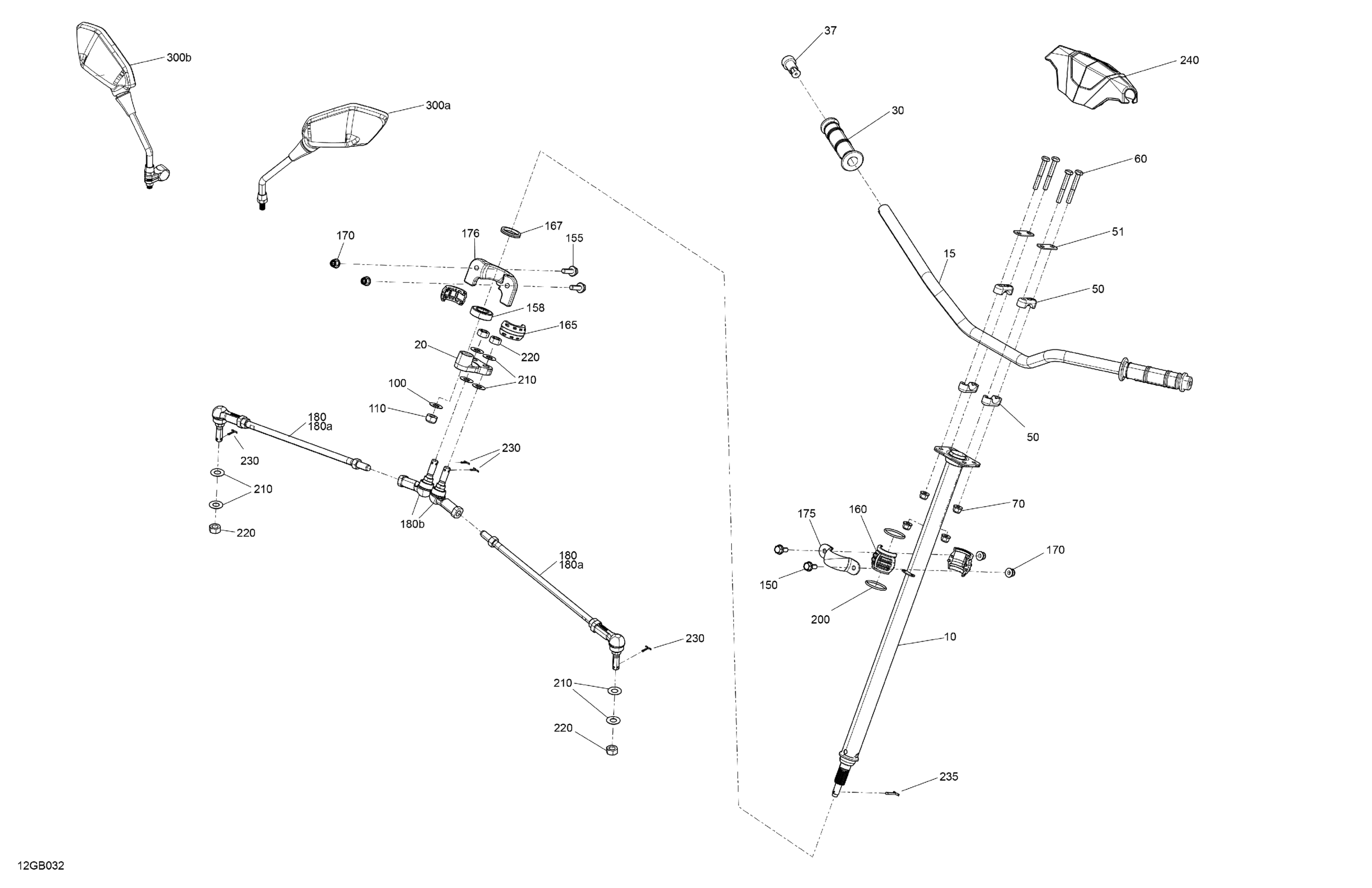

Can-Am 009 - Outlander T MAX 450 EFI - STD - T Regulation, 2022 03- Mechanic - Steering Diagram
#
Description
Price
10
Black, Upper Main Tube | Package-STD
709401545
Unavailable
15
Black, Handle Bar
709401240
Unavailable
20
Pitman Arm | Package-STD
709401542
Unavailable
30
Handle Grip
709400493
Unavailable
37
End Piece
709400449
Unavailable
50
Steering Support
709401799
Unavailable
51
Stiffner
709400509
Unavailable
60
Hex. Screw M8 X 60
207086046
Unavailable
70
Hex. Elastic Flange Nut M8
233281416
Unavailable
100
Hardened Washer
706200281
Unavailable
110
Hex. Flange Elastic Nut M12
250000047
Unavailable
150
Hex. Flange Screw M8 X 20
207682044
Unavailable
155
Hex. Flange Screw M8 X 25
207682544
Unavailable
158
Ball Bearing | Package-STD
503190396
Unavailable
160
Spherical Half Bushing
709400783
Unavailable
165
Spherical Half Bushing | Package-STD
709401370
Unavailable
167
Seal
293250177
Unavailable
170
Hex. Flange Elastic Nut M8
233281414
Unavailable
175
Upper Column Attachment
709400827
Unavailable
176
Column Attachment
709401428
Unavailable
180
Tie Rod Ass`y | Includes 15 to 17
703501038
Unavailable
180a
LH Ball Joint
709402303
Unavailable
180b
RH Ball Joint
709402302
Unavailable
200
O-Ring
293300068
Unavailable
210
Hardened Washer
706200281
Unavailable
220
Nut M12
250100099
Unavailable
230
Cotter Pin
211400013
Unavailable
235
Cotter Pin
250400034
Unavailable
240
Cover
709400939
Unavailable
300a
LH Rearview Mirror
708200963
Unavailable
300b
RH Rearview Mirror
708201092
Unavailable
