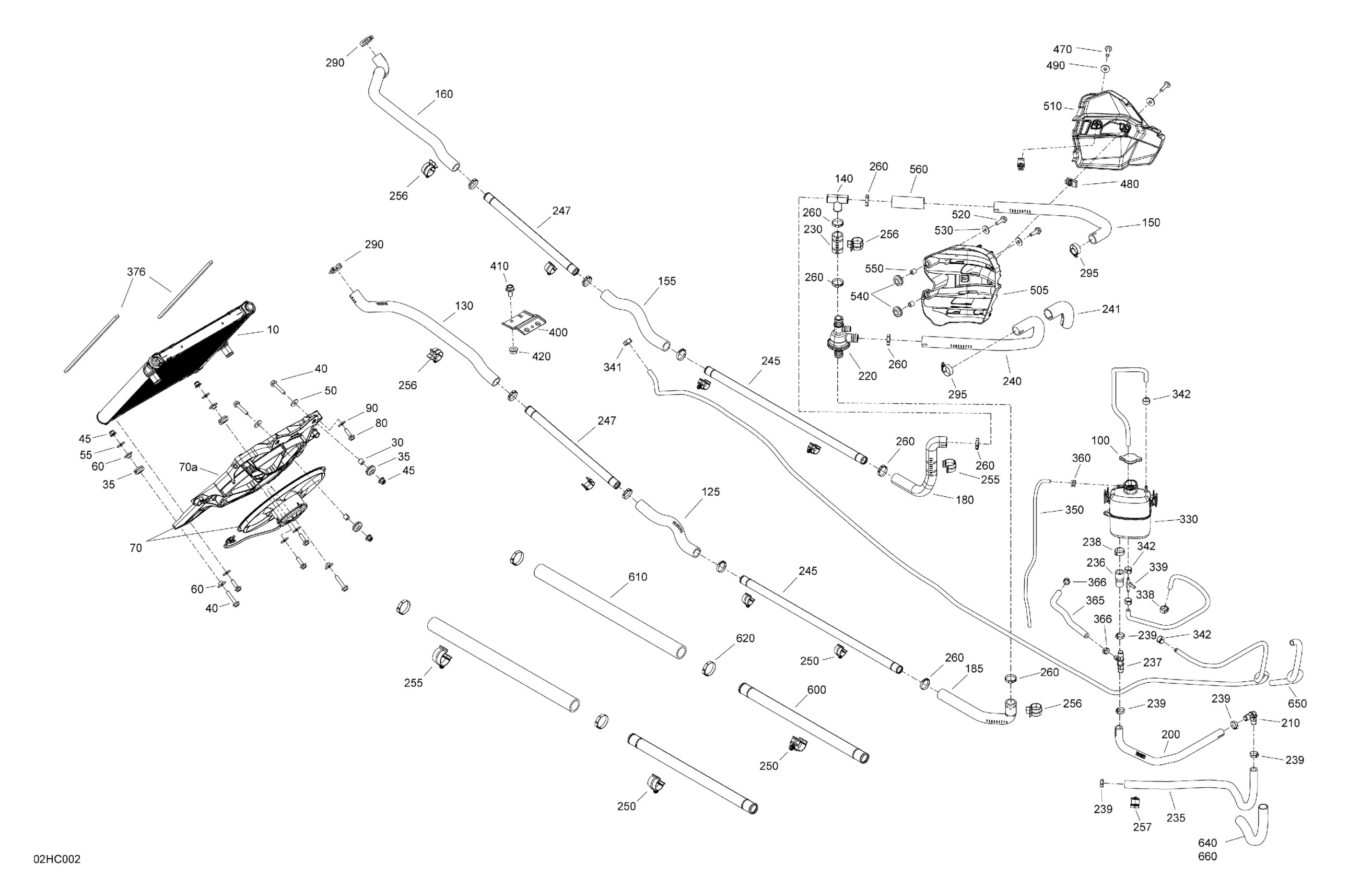

Can-Am 009 - Maverick MAX Turbo RR - RS - International, 2023 02- Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200703

$360.49

30

Bushing

293900105

$7.65

35

Grommet

709000582

$4.69

40

Hex. Flange Screw M6 X 30

207663054

$4.44

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

50

Stainless Steel Flat Washer

234062670

$2.11

55

Stainless Steel Flat Washer

234062670

$2.11

60

Shoulder Bushing

710004749

$2.69

70

Fan | Includes 70 to 70a

709200588

$244.99

70a

Shroud

709200589

$149.99

80

Hex. Flange Screw M6 X 20

207662044

$2.00

90

Flat Washer 6 mm

234062410

$0.77

100

Radiator Pressure Cap

709200207

$25.49

125

Radiator Hose

709200764

$15.36

130

Radiator Hose

709200765

$59.49

140

T-Fitting

509001313

$16.40

150

Pump Hose

709200766

$16.65

155

Hose

709201012

$21.99

160

Radiator Hose

709200768

$35.99

180

Hose

709201011

$21.99

185

Hose

709200770

$41.49

200

Hose

709201055

$21.99

210

Elbow Fitting 90

293710155

$9.39

220

Thermostat Housing

709200967

$103.99

230

Hose

709200299

$8.60

235

Hose | Package Cab

219704443

$8.05

236

Tank Hose

709200771

$32.99

237

T Fitting

509000996

$12.99

238

Oetiker Gear Clamp

293650165

$5.39

239

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

240

Thermostat Hose

709200772

$35.99

241

Tubing 35 MM 1000MM Long

219704428

$10.99

245

Heater Tubing

709200657

$19.49

247

Heater Tubing

709200664

$19.49

250

Retainer

275500963

$4.14

255

Retainer

275500526

$4.55

256

Retainer

275500590

$9.69

257

Retainer

275500963

$4.14

260

Gear Clamp

509000162

$7.29

290

Norma Spring Clamp

293650166

$4.44

295

Aba Gear Clamp, 26-38 MM

509000443

$12.72

330

Coolant Tank

709201323

$80.99

338

Crimp Clamp, 15.3-706R

293650047

$3.29

339

Y-Fitting

293710059

$9.69

341

Oetiker Clamp

293650042

$3.09

342

Crimp Clamp, 15.3-706R

293650047

$3.29

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

360

Spring Clamp

414554800

$0.88

365

Hose 9.5MM 3000MM Long

219704445

$66.49

366

Oetiker Clamp | Europe

293650030

$5.19

376

Seal 3000MM Long

219704386

$28.49

400

Hose Support

709200668

$5.50

410

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

420

Hex. Flange Nut

233081436

$2.00

470

Torx Truss Screw M6 X 25

250000807

$2.11

480

Panel Nut M6 X 1.0

250100198

$2.11

490

Stainless Steel Flat Washer

234062670

$2.11

505

Hose Holder

705015779

$22.99

510

Hose Holder Cover

705015780

$19.49

520

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

530

Stainless Steel Flat Washer

234062670

$2.11

540

Grommet

709000582

$4.69

550

Bushing

293900105

$7.65

560

Tubing 35 MM 1000MM Long

219704428

$10.99

600

Heater Tubing

709200664

$19.49

610

Hose

709200709

$40.99

620

Gear Clamp

509000162

$7.29

640

Tubing 25 MM 1000MM Long

219704402

$15.99

650

Tubing 16 Mm 1000Mm Long

219704408

$7.49

660

Tubing 25 MM 1000MM Long

219704402

$15.99
