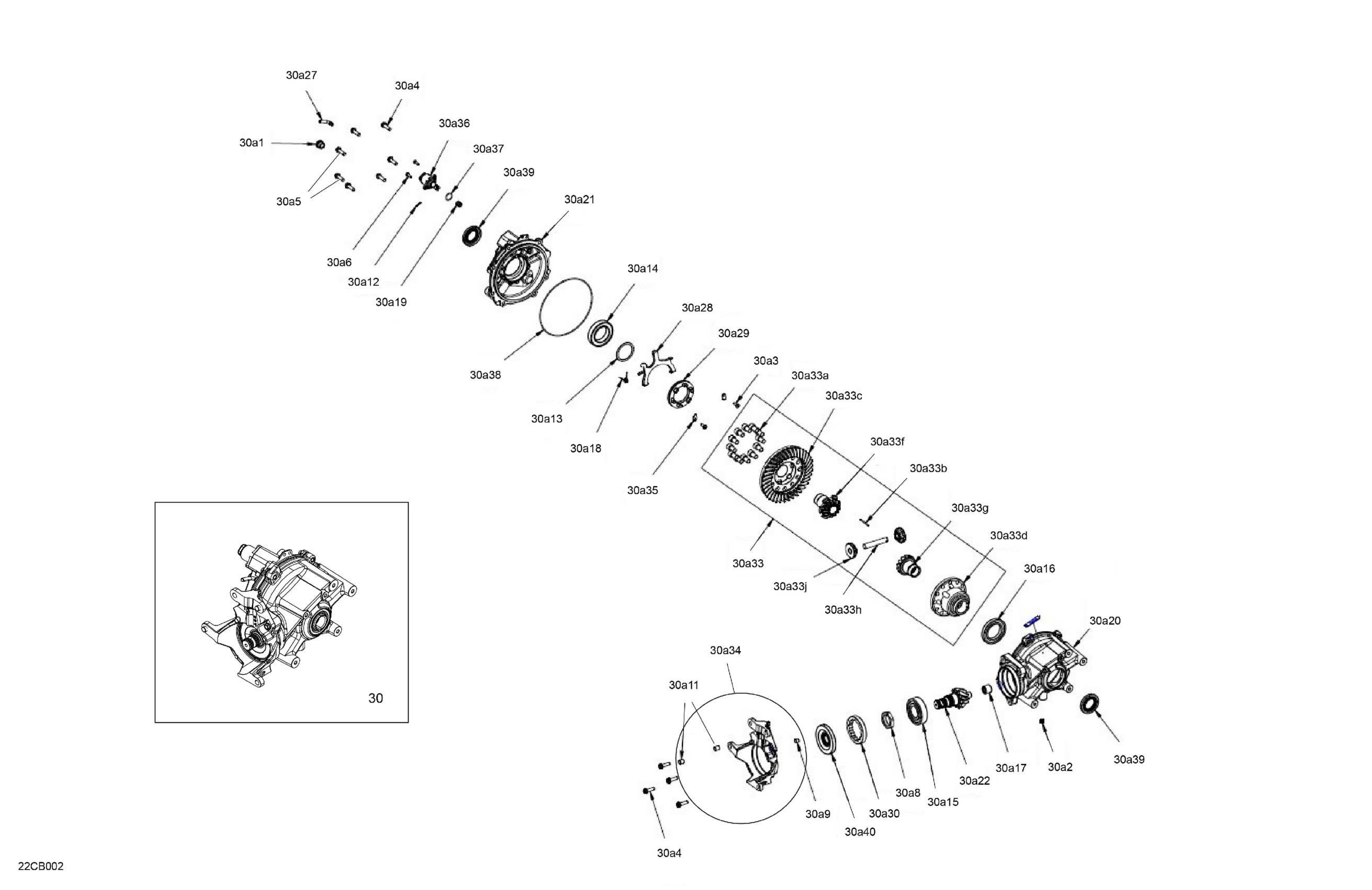

Can-Am 009 - Defender MAX HD7 - BASE - International, 2022 04- Drive - Final Drive Unit Diagram

Description

Price

Rear Differential Ass'y | Includes 30 to 30av

705503735

$1,568.49

30a1

Fill Level Plug

705501889

$20.49

30a2

Fill Level Plug M10

715900563

$27.49

30a3

Torx Screw M6 X 16

705402845

$11.05

30a4

Bolt

705501886

$7.69

30a5

Custom Hex Screw Flange Head M10 x 30

715900799

Unavailable

30a6

Screw

715900736

$20.99

30a8

Nut

715900737

$32.99

30a9

Dowel Pin

715900738

$29.99

30a11

Dowel Pin

715900739

$29.99

30a12

Spring Pin

715900754

$11.99

30a13

Shim

715900740

$37.99

30a14

Ball Bearing

715900741

$40.49

30a15

Ball Bearing

715900782

$67.99

30a16

Ball Bearing

715900742

$28.49

30a17

Needle Bearing

705501874

$73.99

30a18

Torsion Spring

715900755

$10.49

30a19

Compression Spring

715900756

$14.99

30a20

Case

715900816

$309.99

30a21

Cover

715900841

$204.99

30a22

Pinion, 10T Spiral

715900746

$132.49

30a27

Vent Valve

705401935

$16.49

30a28

Pivot Fork

715900761

$48.99

30a29

Engagement

715900821

$74.99

30a30

Nut

705501882

$36.99

30a33

Differential Sub-Assembly | Includes 30an to 30an8

715900765

$1,009.99

30a33a

Screw

715900752

$14.99

30a33b

Dowel Pin

715900753

$12.18

30a33c

Ring Gear, 36T Spiral

715900757

$299.99

30a33d

Carrier

715900758

$184.99

30a33f

Output Gear

715900759

$149.99

30a33g

Output Gear

715900760

$149.99

30a33h

Differential Pin

715900763

$38.99

30a33j

Pinion, Differential

715900764

$211.99

30a34

Differential Support

705503213

$189.99

30a35

Retainer Fork | Not Shown

715900766

$14.49

30a36

Servomotor

420265845

$229.99

30a37

O-Ring | Included in gasket set gearbox

420450450

$2.19

30a38

O-Ring

715900749

$12.11

30a39

Oil Seal

715900531

$26.49

30a40

Seal

715900751

$42.49
