08- Electric - Rear Section

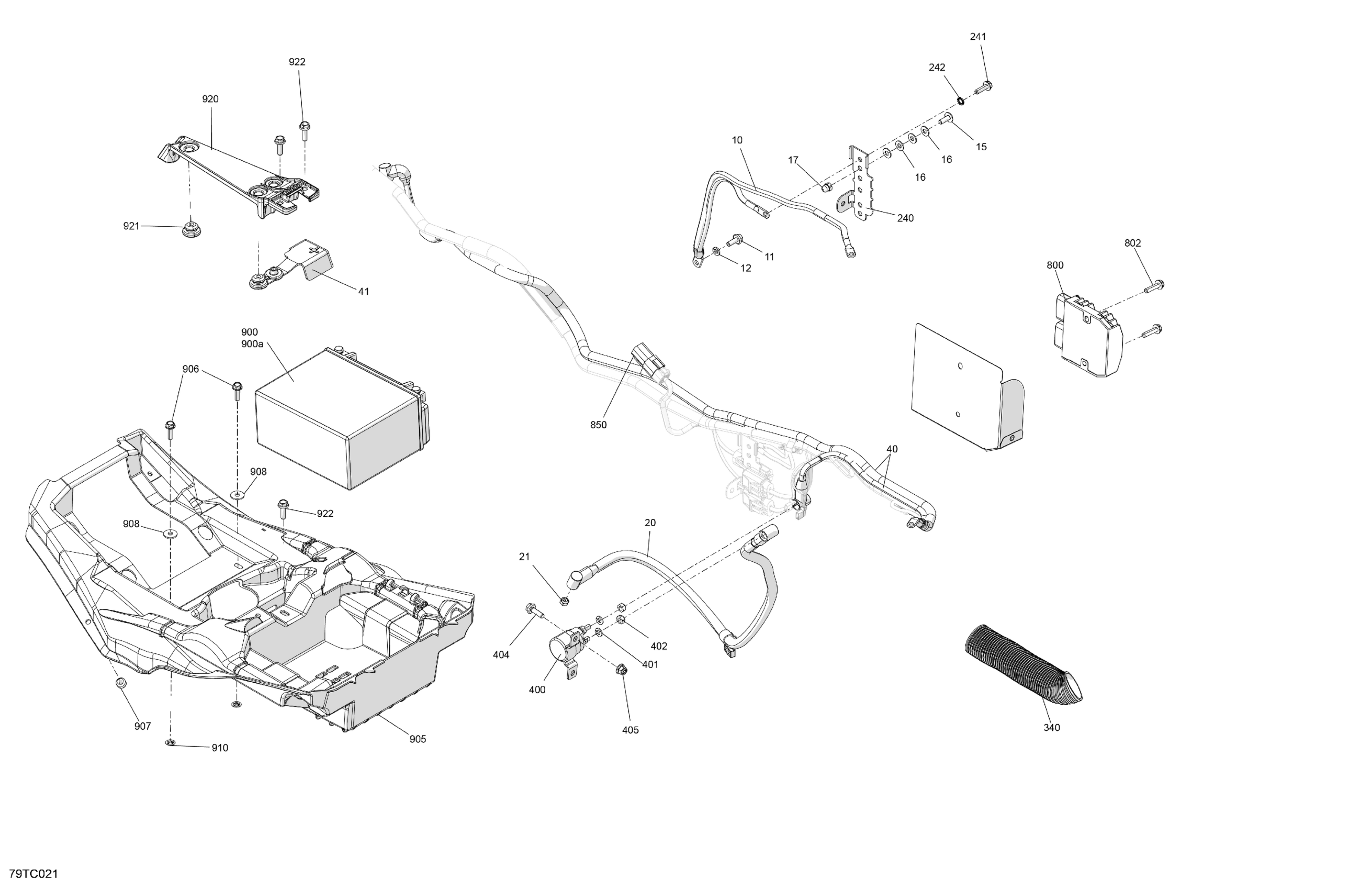

Can-Am 008 - Outlander T MAX 6X6 - 1000 EFI - XU+ - T Regulation, 2023 08- Electric - Rear Section Diagram
#
10
Ground Cable
710004382
Unavailable
11
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
12
Lock Washer Helical M6
234161601
Unavailable
15
Torx Head Screw M6 X 16
250000717
Unavailable
16
Flat Washer
224061121
Unavailable
17
Domed Nut M6
232361493
Unavailable
20
Positive Cable
710004377
Unavailable
21
Elastic Stop Nut M6
232561434
Unavailable
40
Cable
710007437
Unavailable
41
Battery Cable Cap
710006729
Unavailable
240
Connector Bracket
710004118
Unavailable
241
Hex. Flange Screw M6 X 20
210262040
Unavailable
242
External Serrated Lock Washer 6 mm
234461608
Unavailable
280
Clip
414227300
Unavailable
281
Clip
414227300
Unavailable
287
Clip
414227300
Unavailable
340
Tubing 35 MM 1000MM Long
219704428
Unavailable
400
Starter Relay
710007777
Unavailable
401
Lock Washer Helical M6
234161601
Unavailable
402
Elastic Stop Nut M6
232561434
Unavailable
404
Hex. Flange Screw M6 X 20
207662054
Unavailable
405
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
800
Voltage Regulator
710005842
Unavailable
802
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
803
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
850
Housing
710003006
Unavailable
900
12 Volt Battery 18AH In Box | Includes items 7 to 8
296000444
Unavailable
900a
Battery Bolt Kit
250000282
Unavailable
905
Battery Support
710008370
Unavailable
906
Hexagonal Head Screw
210262050
Unavailable
907
Rubber Bumper
293830005
Unavailable
908
Stainless Steel Flat Washer
234062670
Unavailable
910
Push Nut
732610072
Unavailable
920
Retaining Plate
710009129
Unavailable
921
Stopper Rubber
705014429
Unavailable
922
Hex. Flange Screw M6 X 20
207662054
Unavailable
