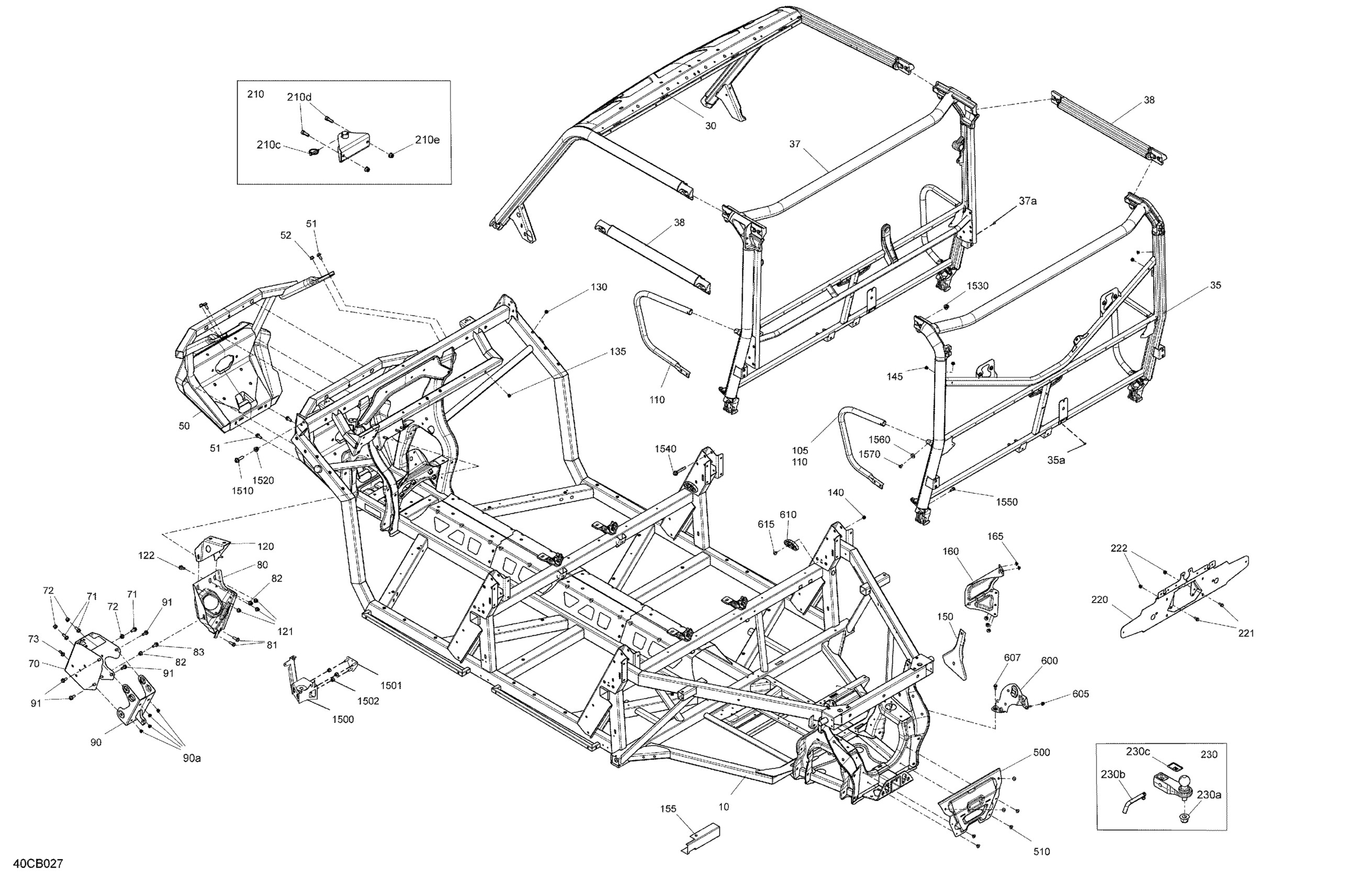

Can-Am 007 - Traxter T MAX HD10 - DPS - T Regulation, 2022 06- Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis Kit

715009081

$3,159.99

10a

Pop Rivet 3/16"

390402200

$0.35

30

Front Cage Ass'y

715008425

$649.99

35

Rear Cage Ass'y | Includes 35 to 35a

715008426

$649.99

35a

Pop Rivet 3/16"

390402200

$0.35

37

Deep Black, Central Cage Service Kit | Includes 37 to 37a

715009273

$739.99

37a

Pop Rivet 3/16"

390402200

$0.35

38

Deep Black, Cage Extension

705209848

$41.99

50

Deep Black, Front Bumper

705207588

$499.99

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

52

Hex. Elastic Flange Nut M8

233281416

$1.48

70

Module Support

705209388

$61.99

71

Hex. Flange Screw M8 X 20

207682044

$1.15

72

Hex. Elastic Flange Nut M8

233281416

$1.48

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

80

Power Steering Support

705208741

$70.99

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

82

Hex. Elastic Flange Nut M8

233281416

$1.48

83

Hex. Flange Screw M8 X 20

207682044

$1.15

90

Steering Column Support | Includes 90 to 90d

705209190

$37.99

90a

Insert Half Hex Body M6 x 1.0

250100199

$3.19

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

105

LH Side Protect

705204590

$46.49

110

Deep Black, RH Protector Tube

705204592

$44.49

120

Support

705208742

$30.99

121

Hex. Elastic Flange Nut M8

233281416

$1.48

122

Hex. Flange Screw M8 X 20

207682044

$1.15

130

Insert Half Hex Body M6 x 1.0

250100199

$3.19

135

Insert Half Hex Body M6 x 1.0

250100199

$3.19

140

Insert Half Hex Body M6 x 1.0

250100199

$3.19

145

Insert Half Hex Body M6 x 1.0

250100199

$3.19

150

Heat Shield

705014849

$2.59

155

Heat Shield

705015496

$2.59

160

Heat Shield

707002709

$61.99

165

Pop Rivet 3/16"

293150103

$0.55

210

Anchorage Strap F Ass'y | Includes 210 to 210c

705208973

$114.99

210c

Pin

605456518

Unavailable

210d

Socket Screw M10 x 30 | XT

205003044

$3.17

210e

Hex. Flange Elastic Nut M10

233201414

$1.58

220

Licence Plate Support

705014656

$114.99

221

Hex. Flange Screw M6 X 16

207661644

$0.74

222

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

230

Drawbar Ass'y | Includes 230 to 230c

705208230

$166.49

230a

Elastic Flange Nut M20

250100104

$12.66

230b

Hitch Pin

705204490

$52.99

230c

Hitch Approval Decal

704906897

$19.99

500

Rear Chassis Reinforcement

705207753

$33.99

510

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

600

Voltage Regulator Support

710007522

$17.49

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

610

Spacer

705208203

$20.99

615

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1500

Module Support

705601905

$85.99

1501

Support

705209564

$10.99

1502

Hex. Elastic Flange Nut M8

233281416

$1.48

1510

Hex. Flange Screw M10 X 35

250000855

$1.89

1520

Hex. Flange Elastic Nut M10

233201436

$2.11

1530

Flange Elastic Nut M10

233201466

$3.17

1540

Hex. Flange Screw M10 X 6

207606046

$4.12

1550

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1560

Offset Washer

705202223

$4.14

1570

Torx Truss M6X14

250000789

$5.39
