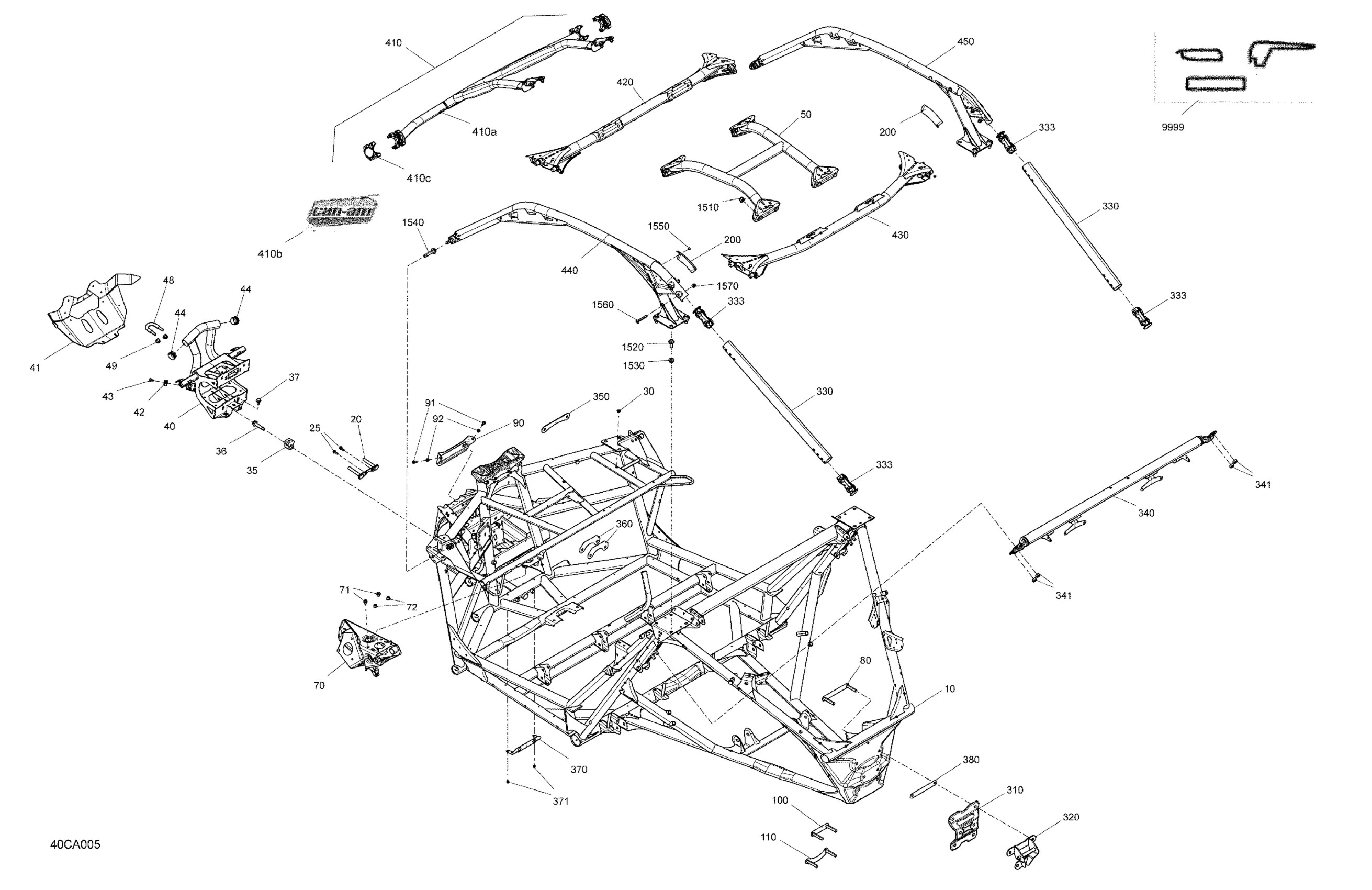

Can-Am 007 - Maverick Turbo RR - XRC - North America, 2021 06- Frame - System Diagram

#

Description
Price

10

Chalk, Frame Ass'y | Includes 10 to 10a1fw

715008512

$3,199.99

20

Front Plate

705207424

$22.99

25

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

30

Insert Half Hex Body M6 x 1.0

250100199

$3.19

35

Bumper Link

705206992

$18.49

36

Flange Screw M12 X 60

250000857

$7.41

37

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

40

Front Bumper Ass'y | Includes 40 to 40a1r

715007617

$542.49

41

Front Master Plate

715006996

$206.49

42

Panel Nut M6 X 1.0

250100198

$2.11

43

Torx Screw M6 X 20

250000722

$1.68

44

Cap

705202455

$5.69

48

U-Clamp

705206983

$37.99

49

Hex. Flange Elastic Nut M10

233201436

$2.11

50

Magma Red, Reinforcement Cage

705210065

$91.99

70

DPS Support

705206924

$71.99

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

72

Hex. Elastic Flange Nut M8

233281416

$1.48

80

Rear Upper Plate

705206852

$22.99

90

Stifner Plate

705206877

$30.99

91

Hex. Flange Screw M6 X 16

207661654

$2.11

92

Hex. Flange Elastic Nut M6

233261494

$1.58

100

Rear Central Plate

705211558

$20.99

110

Rear Plate

705206854

$22.99

200

Magma Red, Connecting Plate

705209144

$13.49

310

Rear Plate

705205750

$25.99

320

Black, Rear Attachement Hook | International

715006661

$48.99

330

Magma Red, Rear Pillar

705210067

$24.99

333

Sleeve

705210648

$9.90

340

Safety Belt Anchorage

705210001

$129.99

341

Elastic Stop Nut M12

232521416

$1.69

350

Connecting Plate

705211552

$5.39

360

Retaining Plate

705210249

$5.29

370

Support

706203122

$14.49

371

Pop Rivet 3/16"

390402200

$0.35

380

Front Upper Plate

705206069

$15.99

410

Black, Front Intrusion Bar | Includes 410 to 410f

715002889

$436.49

410a

Common Parts Kit | Includes 410a to 410a6

715003531

$163.99

410b

Decal "Can-Am" | Not Shown

704904566

$10.99

410c

Black, Clamp

705205709

$79.49

420

Magma Red, Front Cross Member

705209146

$199.99

430

Magma Red, Rear Cross Member

705210071

$204.99

440

Magma Red, LH Cage Ass'y

715008495

$399.99

450

Magma Red, RH Cage Ass'y

715008501

$399.99

1510

Elastic Flange Nut M12

233221466

$2.89

1520

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

1530

Hex Flange Nut m12

233121466

$0.82

1540

Flange Screw M12 X 60

250000857

$7.41

1550

Rivet 3/16"

293150102

$0.70

1560

Torx Truss M8 X 65

250000901

$1.90

1570

Elastic Flange Nut M8

250100025

$1.48

9999

Wear Plate Kit | Includes 15a to 15a4

703501157

$11.49
