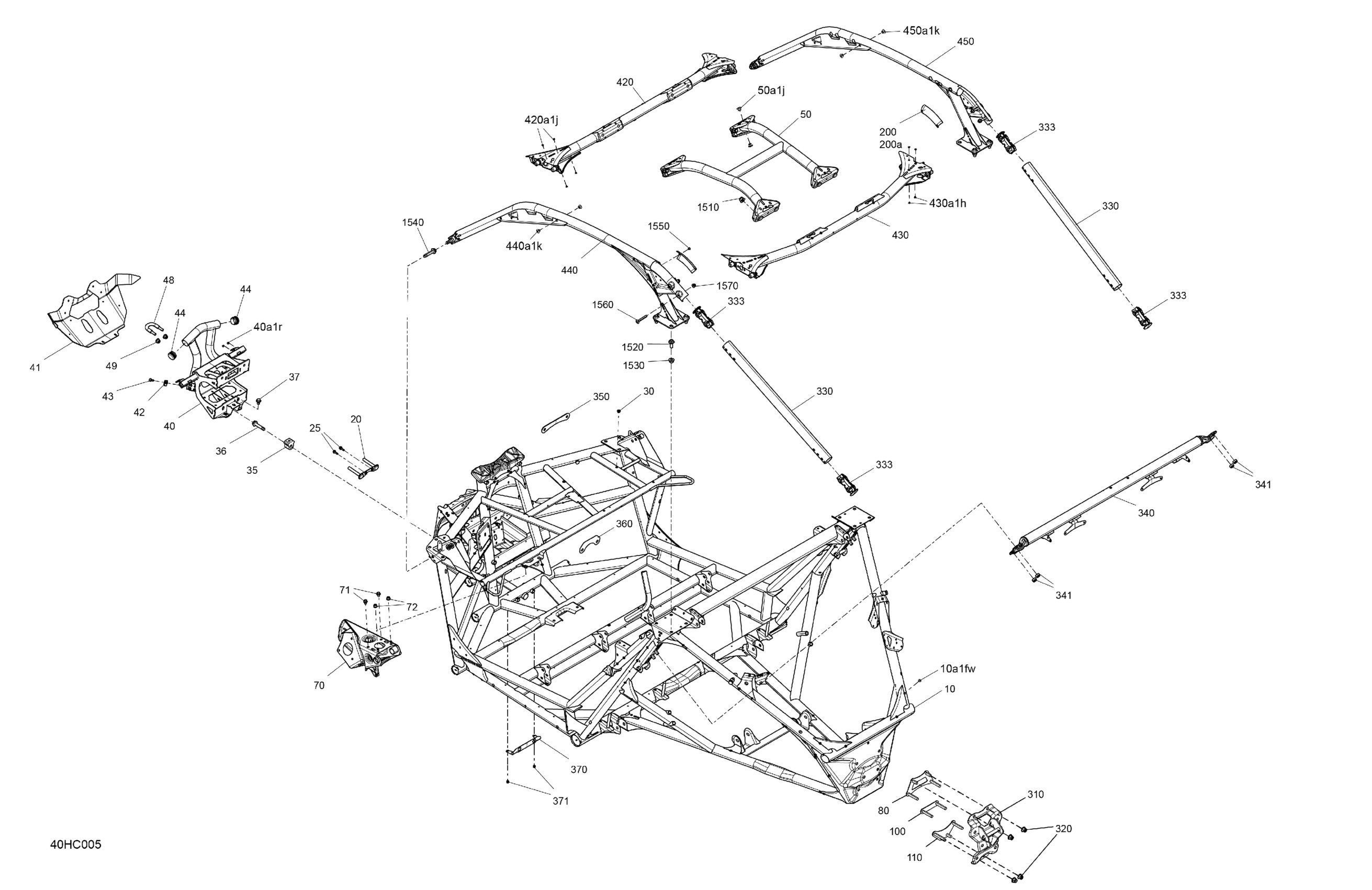

Can-Am 007 - Maverick Turbo RR - XMR - International, 2023 06- Frame - System Diagram

#

Description
Price

10

Liquid Titan, Frame Ass'y | Includes 10 to 10a1fw

715008511

$2,969.99

10a1fw

Pop Rivet 3/16"

390402200

$0.35

20

Front Plate

705207424

$22.99

25

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

30

Insert Half Hex Body M6 x 1.0

250100199

$3.19

35

Bumper Link

705206992

$18.49

36

Flange Screw M12 X 60

250000857

$7.41

37

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

40

Front Bumper Ass'y | Includes 40 to 40a1r

715007617

$542.49

40a1r

Pop Rivet 3/16"

390402200

$0.35

41

Front Master Plate

715006996

$206.49

42

Panel Nut M6 X 1.0

250100198

$2.11

43

Torx Screw M6 X 20

250000722

$1.68

44

Cap

705202455

$5.69

48

U-Clamp

705206983

$37.99

49

Hex. Flange Elastic Nut M10

233201436

$2.11

50

Liquid Titan, Reinforcement Cage | Includes 50 to 50a1j

705209864

$91.99

50a1j

Pop Rivet 3/16"

390402200

$0.35

70

DPS Support

705206924

$71.99

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

72

Hex. Elastic Flange Nut M8

233281416

$1.48

80

Rear Upper Plate

705211557

$20.99

100

Rear Central Plate

705211558

$20.99

110

Rear Lower Plate

705211556

$18.49

200

Liquid Titan, Upper Plate Kit

705211601

$27.99

200a

Liquid Titan, Connecting Plate

705209866

$12.99

310

Junction Plate Ass'y

715008517

$77.99

320

Elastic Flange Nut M12

250001195

$2.64

330

Liquid Titan, Rear Pillar

705209861

$24.99

333

Sleeve

705210648

$9.90

340

Safety Belt Anchorage

705210001

$129.99

341

Elastic Stop Nut M12

232521416

$1.69

350

Connecting Plate

705211552

$5.39

360

Retaining Plate

705210249

$5.29

370

Support

706203122

$14.49

371

Pop Rivet 3/16"

390402200

$0.35

420

Liquid Titan, Front Cross Member | Includes 420 to 420a1j

705209868

$204.99

420a1j

Pop Rivet 3/16"

390402200

$0.35

430

Liquid Titan, Rear Cross Member | Includes 430 to 430a1h

705209870

$204.99

430a1h

Pop Rivet 3/16"

390402200

$0.35

440

Liquid Titan, LH Cage Ass'y | Includes 440 to 440a1k

715008496

$399.99

440a1k

Pop Rivet 3/16"

390402200

$0.35

450

Liquid Titan, RH Cage Ass'y | Includes 450 to 450a1k

715008502

$399.99

450a1k

Pop Rivet 3/16"

390402200

$0.35

1510

Elastic Flange Nut M12

250001195

$2.64

1520

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

1530

Elastic Flange Nut M12

250001195

$2.64

1540

Flange Screw M12 X 60

250000857

$7.41

1550

Rivet 3/16"

293150102

$0.70

1560

Torx Truss M8 X 65

250000901

$1.90

1570

Elastic Flange Nut M8

250100025

$1.48
